CreatBotF1000 Y Axis MotorGenuine CreatBot Replacement Part
For the CreatBot F1000

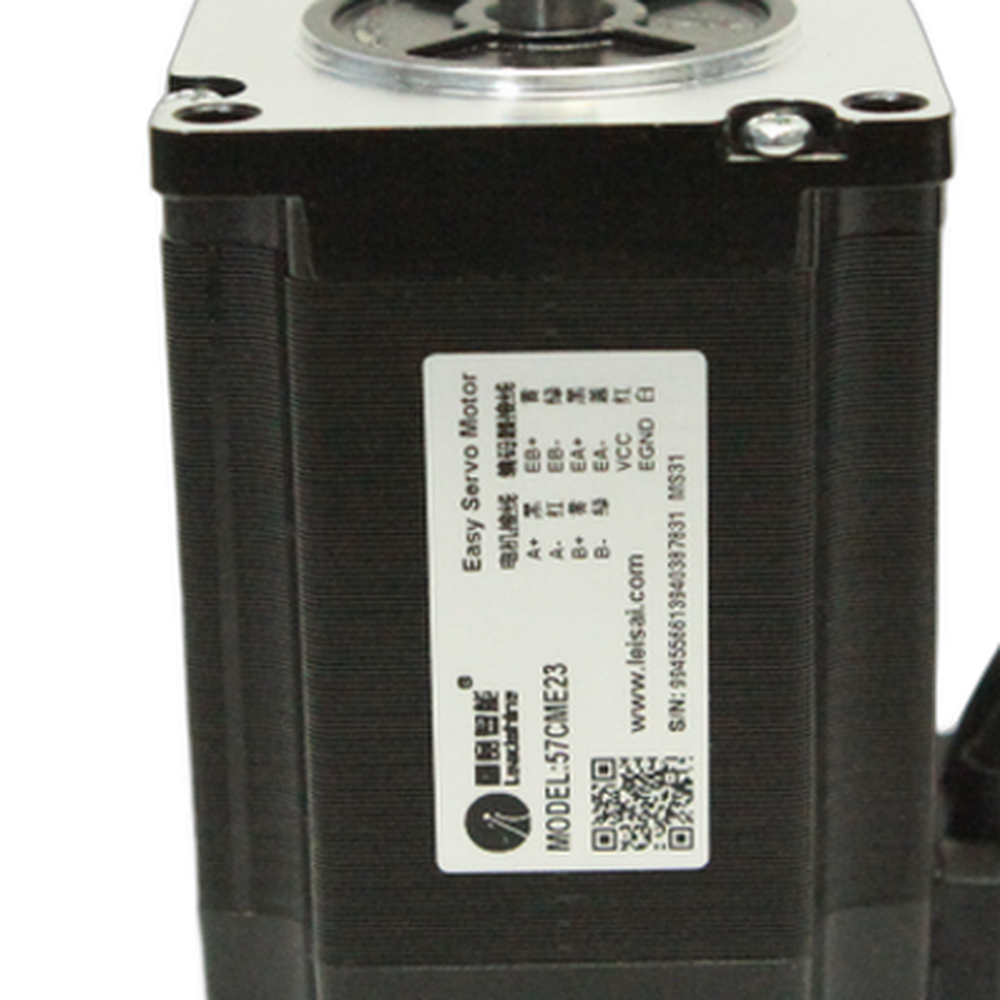

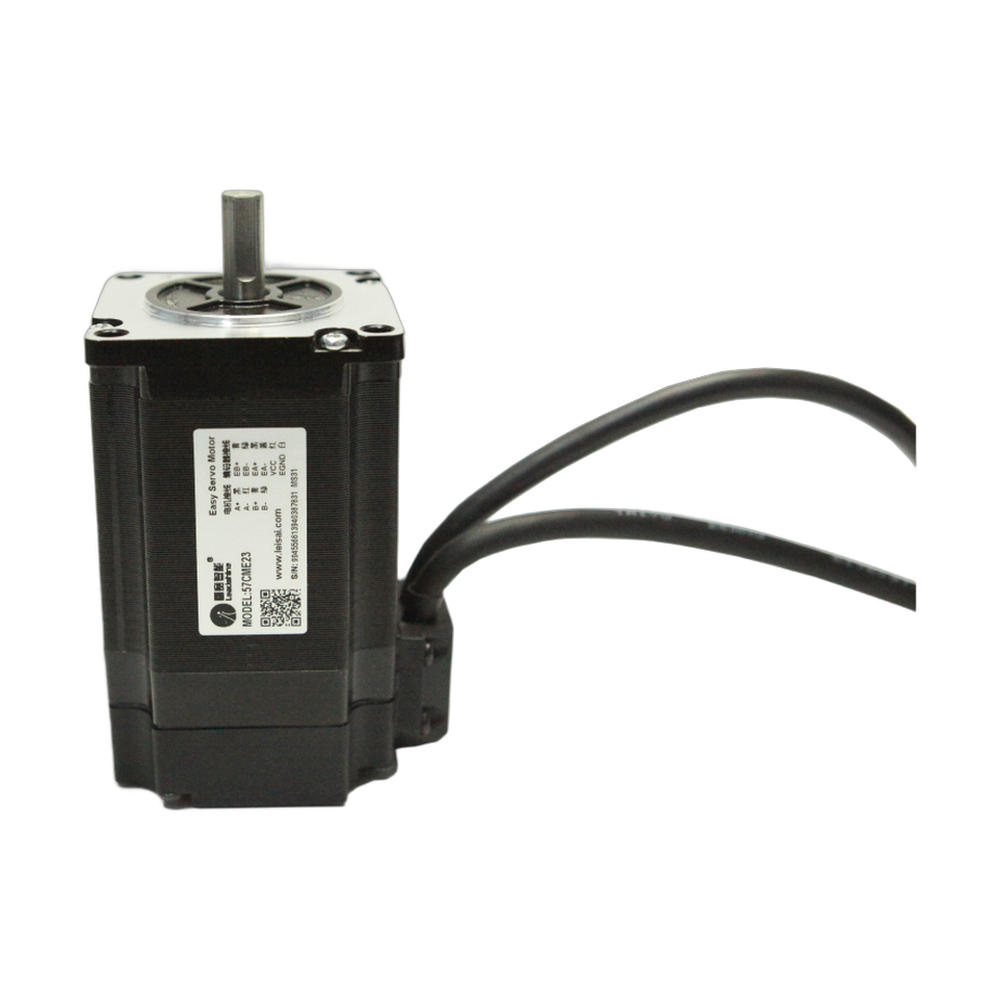

The CreatBot F1000 Y motor (part 132013) is the OEM Y axis motor for the CreatBot F1000 3D printer. It drives the front to back motion of the machine. On a large format printer, the Y axis is often moving a heavy assembly, and the motor has to accelerate, stop and reverse it accurately for the length of the print. A Y motor that is starting to fail usually announces itself with layer shifts and noise long before it stops completely. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F1000 Y Axis Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Y motor needs replacing
Parts have a visible step front to back, while X dimensions are fine.
Vibration, whining or grinding from the Y motor at normal speeds.
Homing fails on Y, or the axis stops without a jam or collision.
The shaft does not turn smoothly by hand with the printer powered off.
Before you replace the motor, inspect the Y belt for wear, check the pulley set screws and reseat the cable. If the fault remains, the motor is the likely cause. Rev1 support can help confirm it.
Compatible CreatBot 3D printer
The X axis on the F1000 uses part 132012. Other CreatBot models use their own Y motors, for example the D1000 (132011).
Installation tips
Turn the printer off and disconnect it from power. Photograph the motor wiring, slacken the Y belt and remove the mounting screws. Fit the new motor in the same orientation, align the pulley with the belt and tighten it securely on the shaft. Restore belt tension, home all axes and print a calibration part to check the Y dimension and surface finish.
CreatBot F1000 Y Axis Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F1000 Y Axis Motor — Questions
Do the F1000 X and Y axes use the same motor?
CreatBot lists them as separate parts: Y is 132013 and X is 132012. Order the part for the axis you are repairing.
Will it fit a D1000?
No. The D1000 uses Y motor 132011.
Can Rev1 do the repair?
Yes. Rev1 is a certified CreatBot service provider and can replace the motor and test the printer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
