CreatBotF1000 X Axis MotorGenuine CreatBot Replacement Part
For the CreatBot F1000

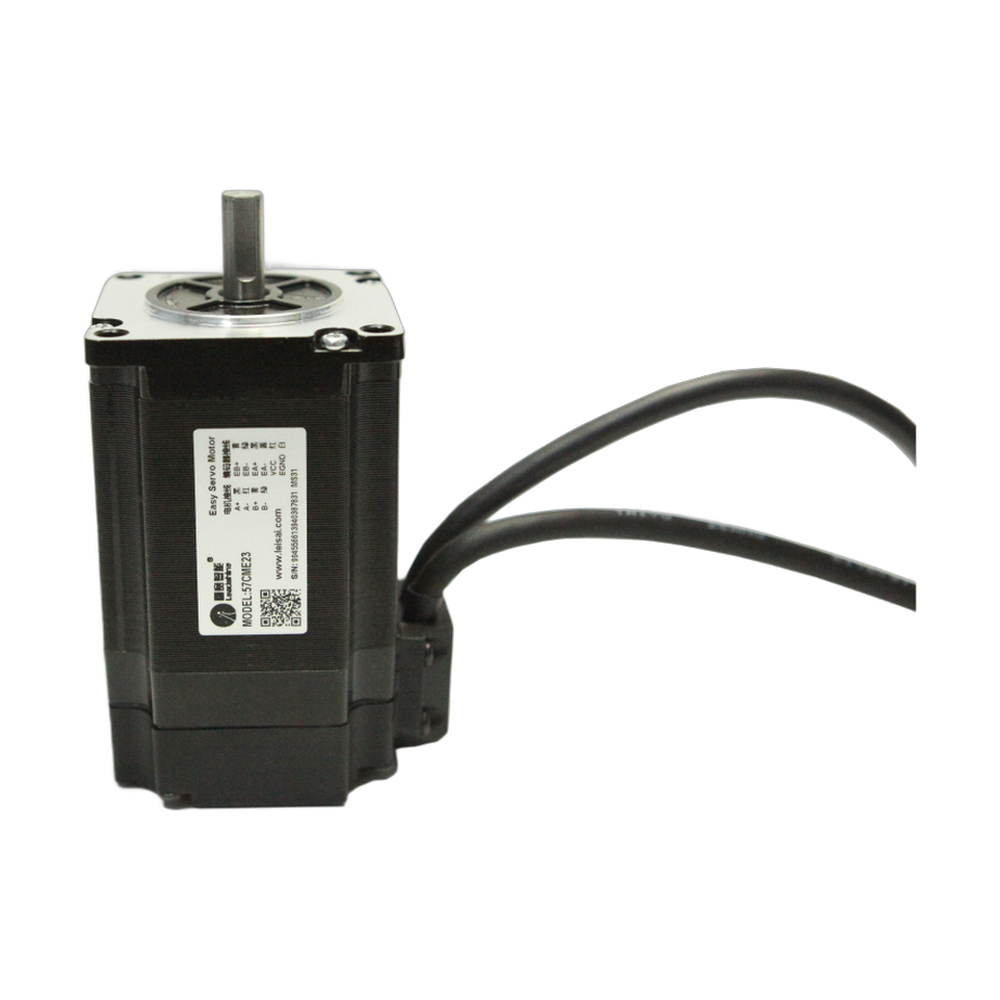

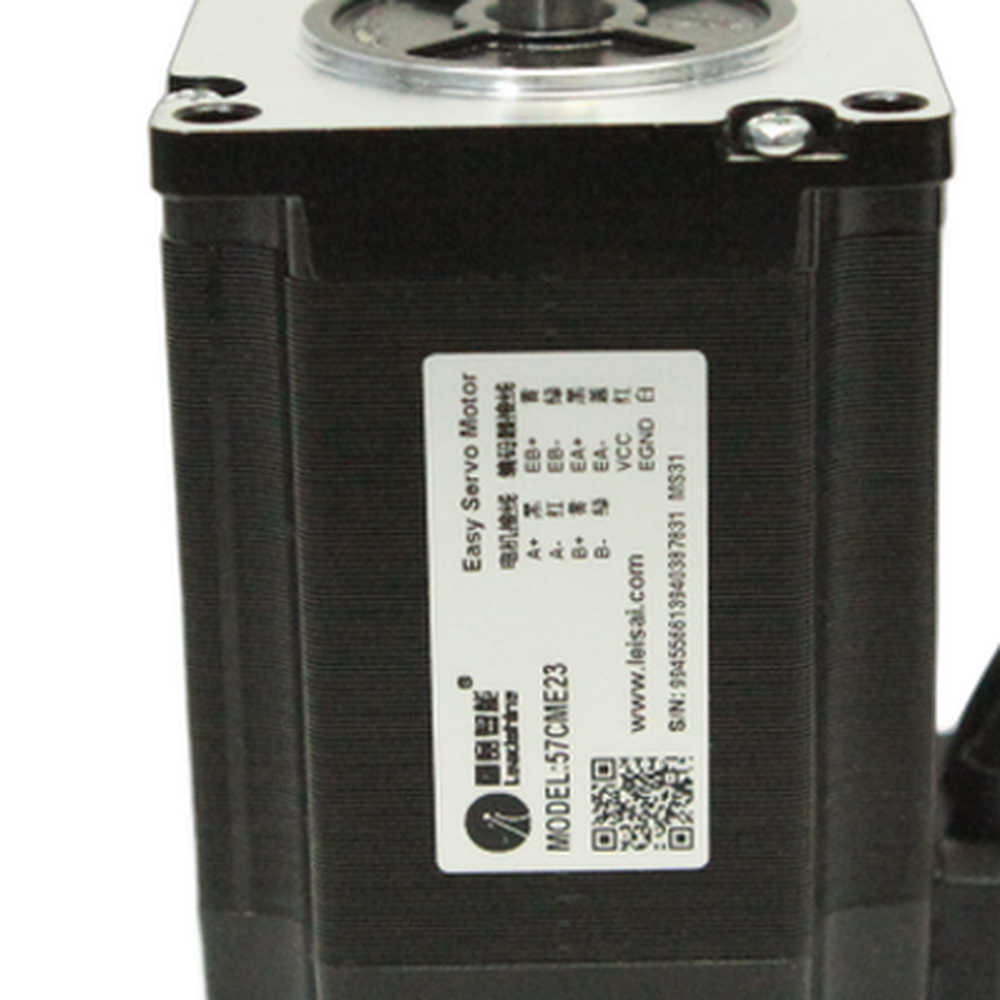

The CreatBot F1000 X motor (part 132012) is the OEM motor for the X axis of the CreatBot F1000 3D printer. The F1000 is a large format machine, and its X axis moves the print head across a wide span on every layer. The X motor has to hold position precisely through thousands of direction changes per print. When it starts to fail, you lose dimensional accuracy, surface quality and, eventually, entire prints. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F1000 X Axis Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X motor needs replacing
Shifted layers in the X direction, especially during fast infill or travel moves.
A buzzing, clicking or grinding sound when the print head moves left or right.
The X axis will not home, or the printer stops moving in X during a job.
The motor gets hotter than usual under normal printing.
A loose drive pulley, a damaged belt or a cable problem can mimic a failing motor. Rev1 support can help you rule those out before you order.
Why choose the genuine CreatBot motor
The F1000's motion system was configured around CreatBot's own motors. Fitting the same part keeps the axis behaving the way the printer expects, with the same mounting, shaft and connector, and no changes to firmware settings.
Compatible CreatBot 3D printer
The F1000 Y axis uses part 132013.
Installation tips
Switch off and unplug the printer. Photograph the connector and cable routing, then release tension on the X belt before removing the motor. Transfer the pulley if needed and position it so the belt runs straight and centered. Refit the belt at the correct tension, home the printer and run a test print with long X moves to confirm there is no skipping.
CreatBot F1000 X Axis Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F1000 X Axis Motor — Questions
Will this motor fit an F430?
No. Part 132012 is listed for the F1000 only. Contact Rev1 for F430 motion parts.
Is the F1000 Y motor different?
Yes. The Y motor is part 132013.
Is this a genuine CreatBot part?
Yes, part 132012, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
