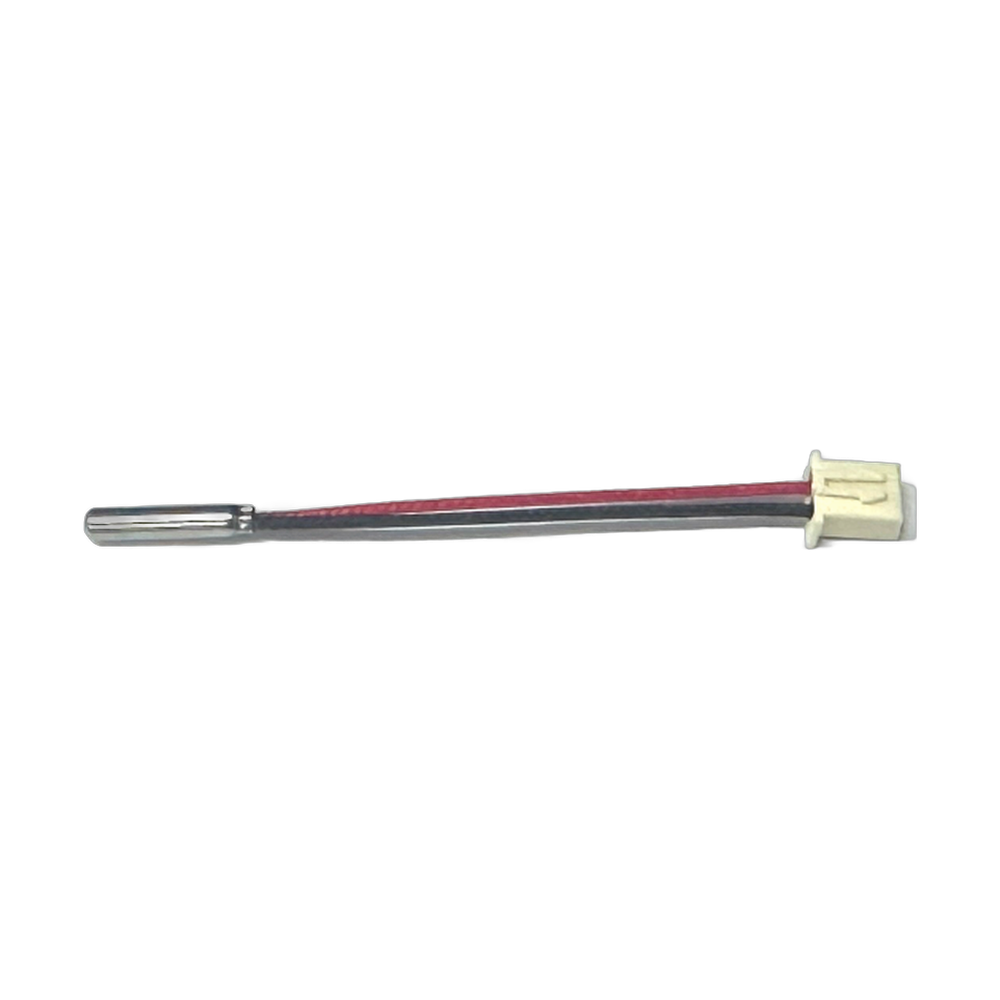

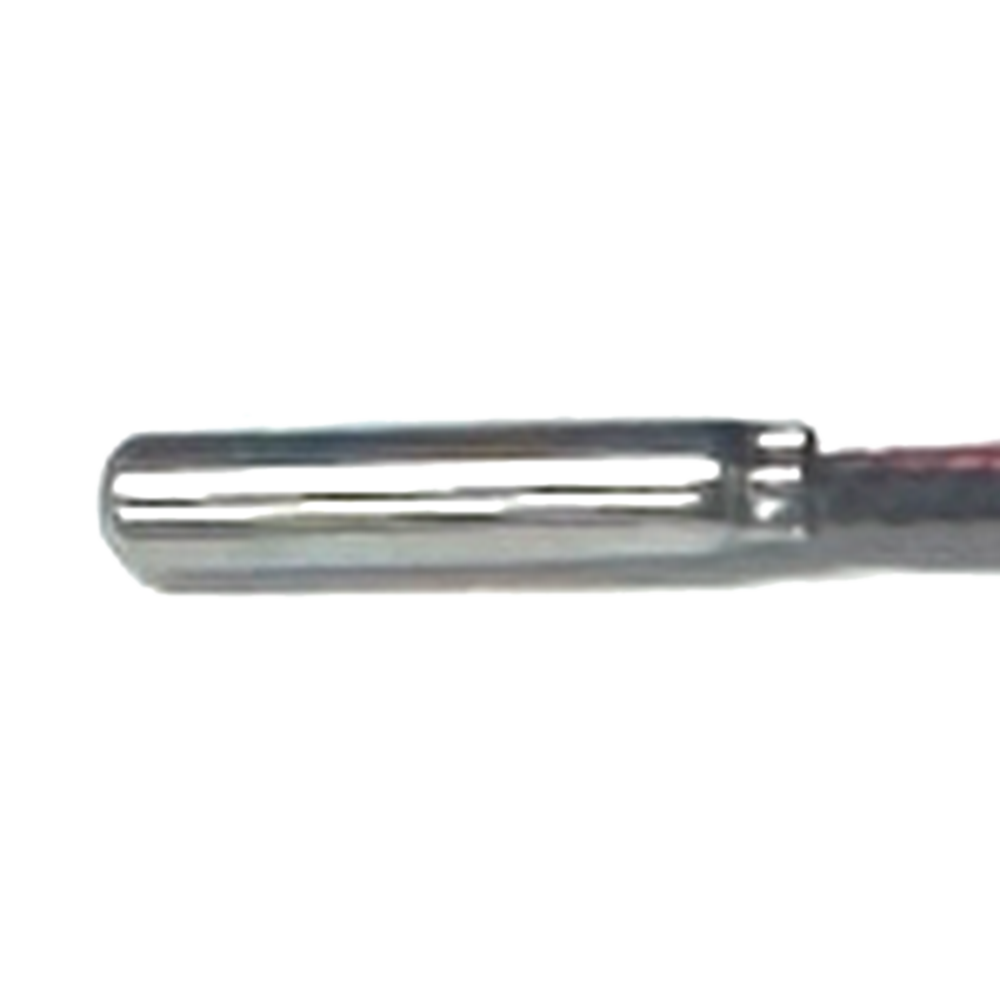

CreatBotF1000 Temperature SensorGenuine CreatBot Replacement Part
For the CreatBot F1000
The CreatBot F1000 temperature sensor (part 106010) is the OEM replacement sensor for the CreatBot F1000 3D printer. The sensor reports temperature to the control board so the printer can regulate its heater. If the reading is wrong, the printer cannot hold a stable temperature, and it may stop with a heating error before a print can finish. A genuine sensor matched to the F1000 gives the control board the readings it expects. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F1000 Temperature Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your temperature sensor needs replacing
The screen shows a temperature that is clearly wrong, such as room temperature while the heater is on, or an impossible value.
The reading jumps or fluctuates during a print while the set point stays the same.
The printer stops with a temperature or heating error, especially when the print head moves.
Visible damage to the sensor lead, such as a pinched, frayed or melted wire.
A failed heater, loose connector or board fault can show similar symptoms. Contact Rev1 support and we will help you confirm the sensor is the cause before you order.
Compatible CreatBot 3D printer
Other F Series printers use different sensors. The F430 uses part 106007, and the F430 NX uses part 106003 or the V2 sensor, part 106004. The D1000 uses part 106011.
Installation tips
Power the printer off, unplug it and let the hotend and heated parts cool completely before you start. Photograph the sensor connector and the wire routing before you remove the old sensor. Seat the new sensor fully, secure it the same way as the original, and route the lead away from moving parts and hot surfaces so it is not pinched or strained as the axes travel. After installation, heat the printer and confirm the reading looks correct and stable, then run a short test print.
CreatBot F1000 Temperature Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F1000 Temperature Sensor — Questions
Is this a genuine CreatBot sensor?
Yes. It is CreatBot part 106010, supplied through Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my F430?
No. The F430 uses part 106007. This sensor is listed for the F1000 only.
How do I know the sensor failed and not the heater or board?
A sensor fault usually shows as an incorrect or unstable reading, while a heater fault shows as a correct reading that will not rise. If you are unsure, contact Rev1 support with your symptoms and we will help you diagnose it.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
