CreatBotF1000 / PEEK-300 8-Bit MotherboardGenuine CreatBot Replacement Part
8-Bit Motherboard for F1000 and PEEK-300 3D Printers

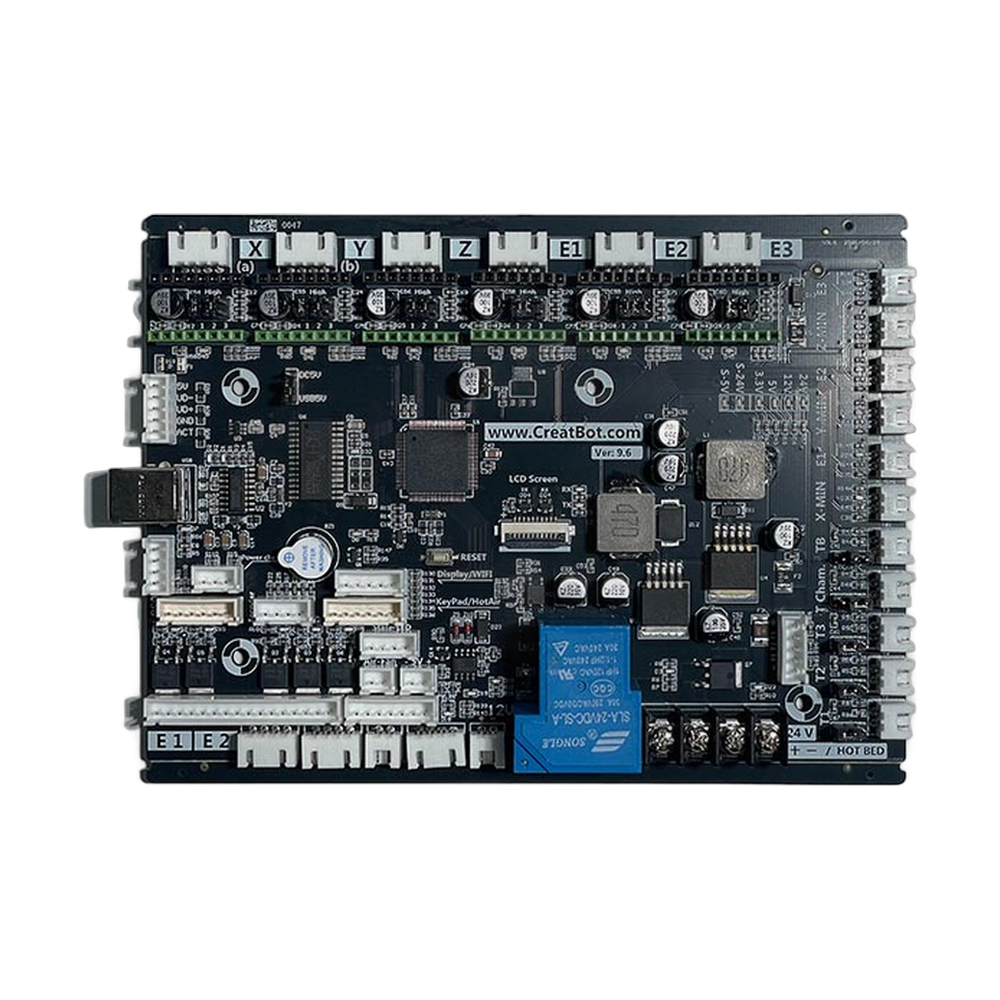

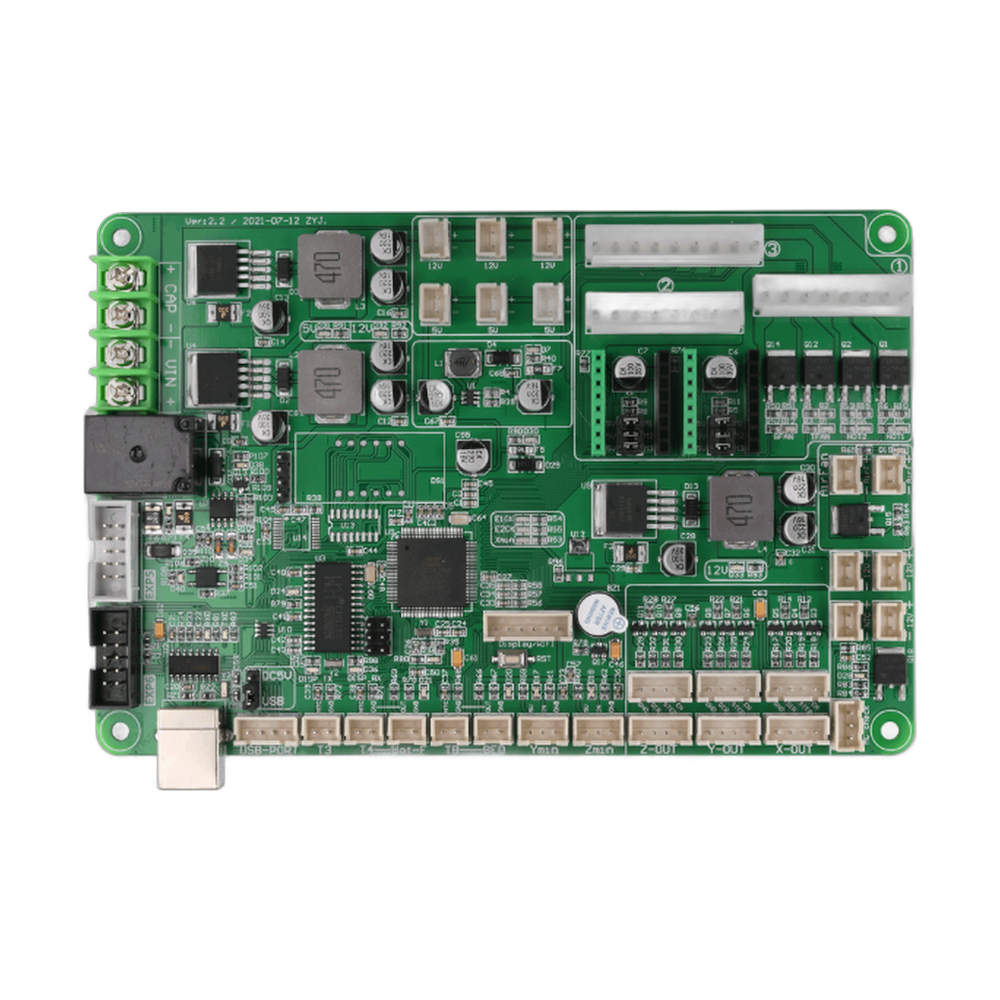

The CreatBot 8-bit motherboard is the OEM main control board for the 8-bit versions of the CreatBot F1000 and PEEK-300. The motherboard runs the printer: it drives the motion system, controls the hotends and heated components, and reads the printer's sensors. This product comes in three board versions, V9.6, V2.2 and V1.2, so you can match the board already in your machine. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F1000 / PEEK-300 8-Bit Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your motherboard may need replacing
The printer will not boot, or boots without responding to the controls.
Axes, heaters or fans stop responding while the parts themselves test good.
Visible damage on the board, such as burnt components or a damaged connector.
A failed power supply, cable or driver can look the same. Contact Rev1 support before you order and we will help you confirm the board is the cause.
Choose your version and printer
| Version | Printer option | Part number | Fits |
|---|---|---|---|
| V9.6 | F1000 | 111012 | F1000, PEEK-300 |
| V2.2 | F1000 | 111013 | F1000 only |
| V9.6 | PEEK-300 | 111016 | F1000, PEEK-300 |
| V1.2 | PEEK-300 | 111017 | PEEK-300 only |
Compatible CreatBot 3D printers
Fit differs by version: the V9.6 fits both printers, the V2.2 fits the F1000 only and the V1.2 fits the PEEK-300 only.
Which version do I need?
Order the version that matches the board in your printer. The version is normally printed on the board itself, so check it before you order. Board versions differ in layout and connectors, and the printer firmware is set up for the board it runs on, so a different version is not a drop-in swap. Some PEEK-300 printers use a 32-bit board instead (PEEK-300 32Bit Motherboard V1.4, part 111018), which is a separate product. If you cannot read the version, send Rev1 support a photo of your board and we will identify it.
Installation
Power the printer off and unplug it before opening the electronics bay. Photograph every connector before you disconnect anything, use anti-static precautions, and check the firmware with Rev1 support after installation. If your printer is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot F1000 / PEEK-300 8-Bit Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F1000 / PEEK-300 8-Bit Motherboard — Questions
Which version do I need?
The one printed on your current board. The V9.6 fits the F1000 and PEEK-300, the V2.2 fits the F1000 only and the V1.2 fits the PEEK-300 only.
Are 111012 and 111016 the same board?
Yes. Both are the V9.6 board. CreatBot lists it once for each printer, and either number fits both.
Can Rev1 install it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test the board.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
