CreatBotF1000 Drag Chain CableGenuine CreatBot Replacement Part
For the CreatBot F1000

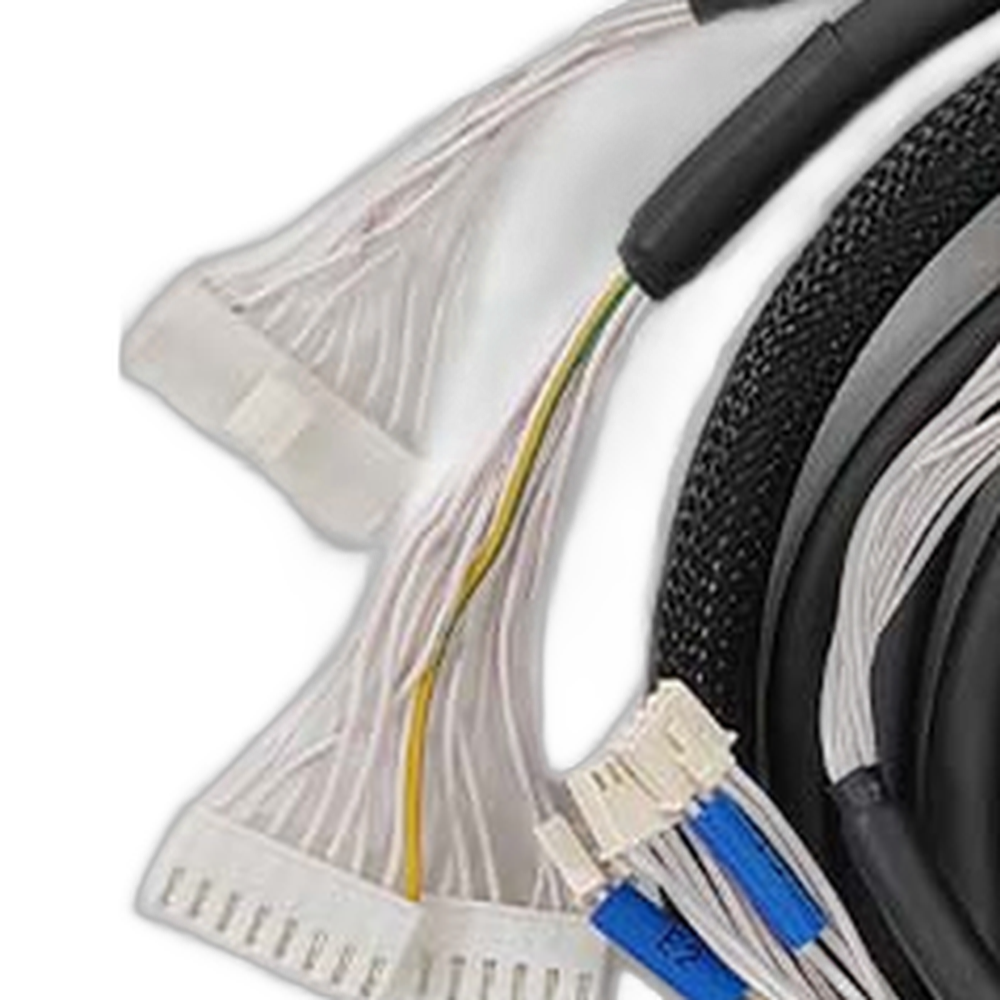

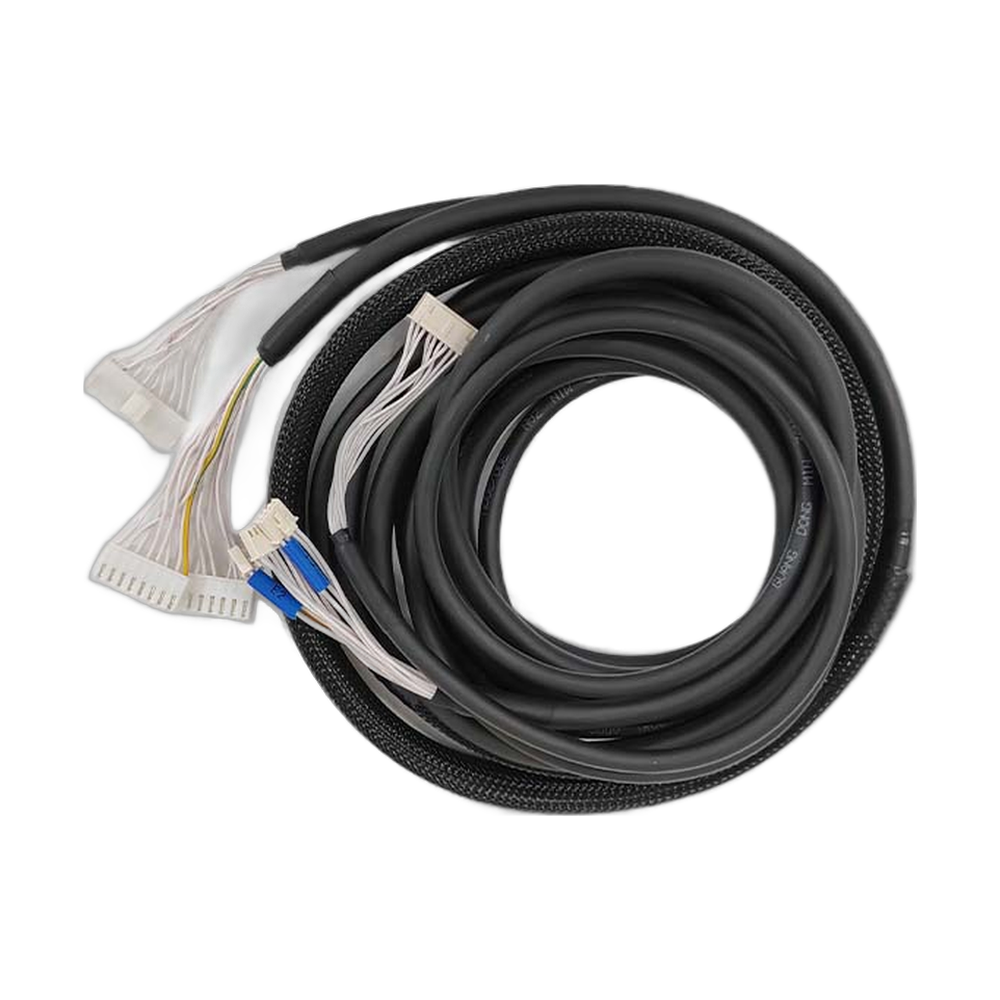

The CreatBot F1000 drag chain cable (part 160012) is the OEM cable that runs through the drag chain on the CreatBot F1000. The drag chain is the jointed cable carrier that bends with the moving axis, and this cable inside it carries the power and signal lines for the parts that move. On a large format printer such as the F1000, the cable travels a long way on every pass, so years of printing can wear out the conductors even when the outside of the cable looks fine. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F1000 Drag Chain Cable, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the drag chain cable needs replacing
Random temperature or heater errors that do not follow a pattern in the G-code.
A fault that you can make appear or disappear by moving the axis by hand.
Fans or sensors on the moving assembly that cut out briefly.
Kinks, flattening or exposed copper where the cable enters or leaves the chain.
Why a new cable beats a repair
A drag chain cable fails from fatigue: individual strands break one at a time until the connection becomes intermittent. Splicing one wire leaves the other worn conductors in place and adds a stiff joint that tends to fail again. A new genuine cable restores every conductor at once and routes exactly like the original.
Compatible CreatBot 3D printer
The F1000 extruder cable is a separate part, 160011. Other printers use their own drag chain cables, such as the D1000 (160015).
Installation tips
Unplug the printer. Label and photograph the connectors at both ends. Replace the cable in the chain along the same route, keep it free of twists, and secure it at the same anchor points as the original. Test by moving the axis through its full travel before powering up.
CreatBot F1000 Drag Chain Cable Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F1000 Drag Chain Cable — Questions
Is this the same as the F1000 extruder cable?
No. The extruder cable is part 160011. This listing is the drag chain cable, part 160012.
Will it fit an F430?
No. This cable is listed for the F1000 only.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 160012, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
