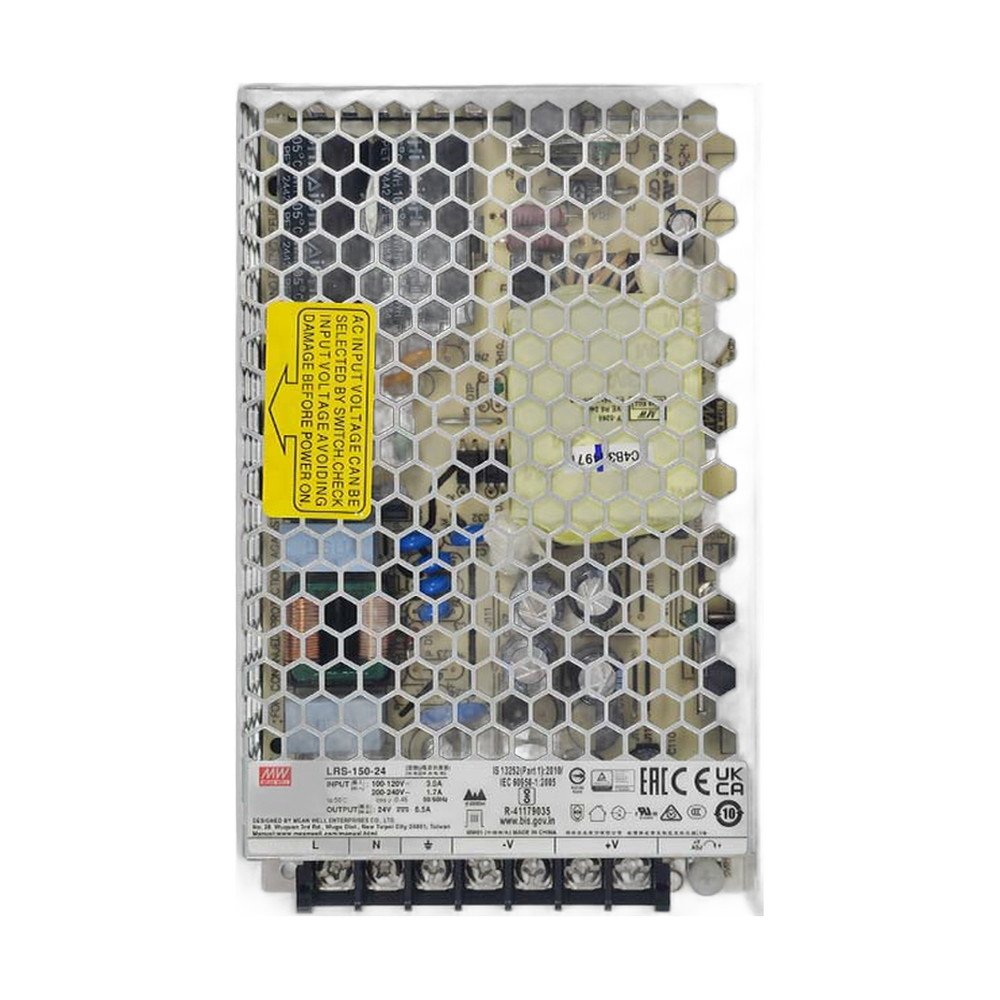

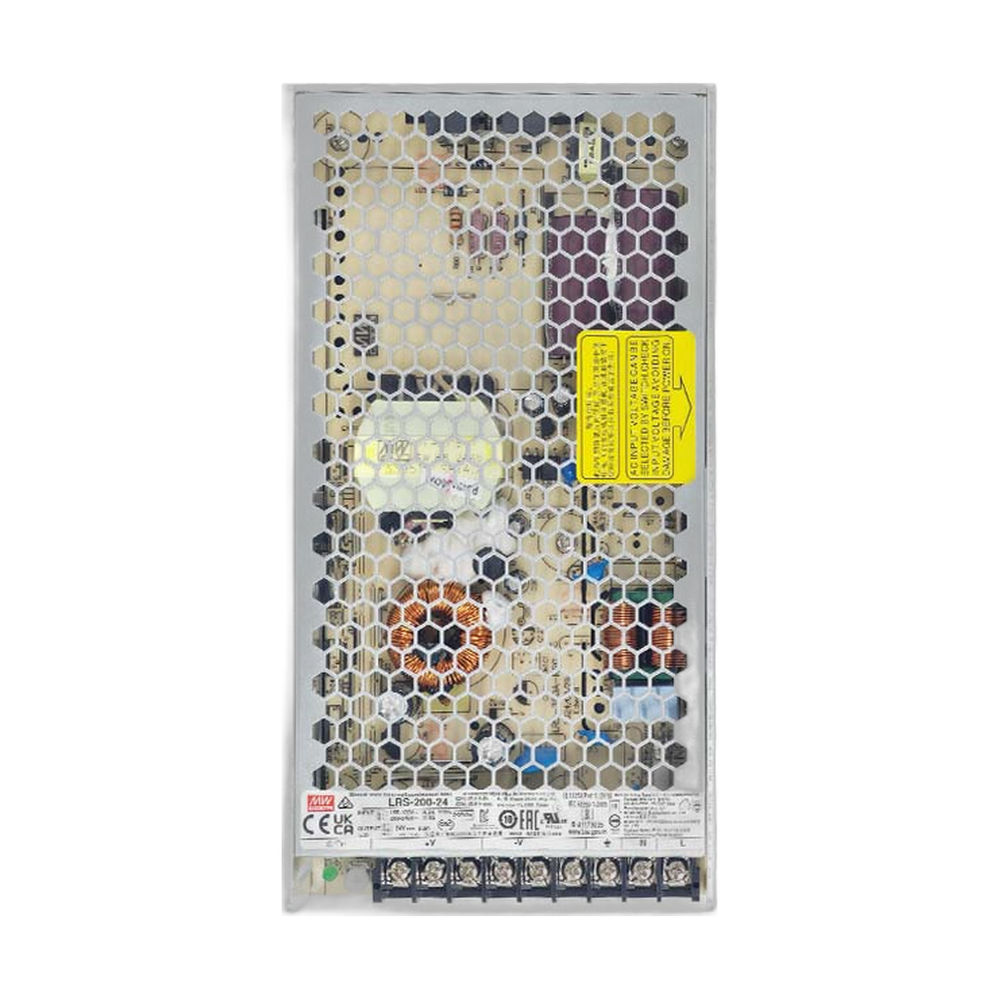

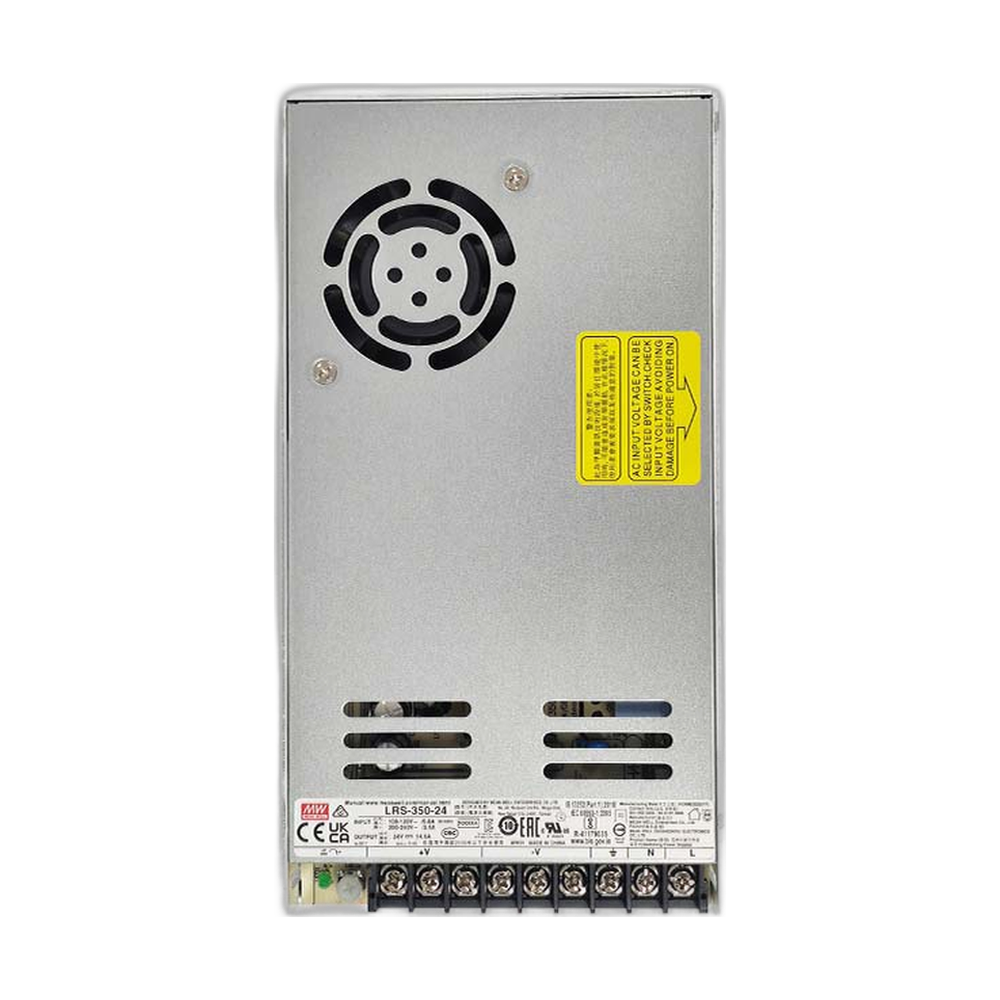

CreatBotDC24 Switching Power SupplyGenuine CreatBot Replacement Part
DC24 Switching Power Supply for D Series, D Series HS, Ultra, F and PEEK Series 3D Printers
The CreatBot DC24 switching power supply is the OEM supply that converts mains power to the 24 V DC that runs CreatBot printer electronics, such as the control board, motors, fans and other low voltage circuits. A switching supply does this efficiently and in a compact package. CreatBot offers it in three wattages, 150W, 200W and 350W, each in a 110V and a 220V version, so you can match the exact unit installed in your printer. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot DC24 Switching Power Supply, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the power supply may need replacing
The printer will not power on, or the screen stays dark with mains power present.
The printer resets or shuts down under load, for example when heaters and motors run together.
Clicking, squealing or buzzing from the supply, or a burning smell.
The supply's indicator light is off or flickering.
A blown fuse, a loose terminal or a short elsewhere in the printer can cause the same symptoms. Contact Rev1 support and we will help you confirm the supply is at fault.
Choose your wattage and voltage
| Wattage | Voltage | Part number | Fits |
|---|---|---|---|
| 150W | 110V | 171004 | All models listed below |
| 150W | 220V | 171001 | All models listed below |
| 200W | 110V | 171005 | All models listed below |
| 200W | 220V | 171002 | All models listed below |
| 350W | 110V | 171006 | All models listed below |
| 350W | 220V | 171003 | All models listed below |
Compatible CreatBot 3D printers
CreatBot lists every version against the same printers, because a printer may use more than one supply for different circuits. Always match the unit you are replacing.
How to choose the right supply
Wattage: read the label on the supply you are replacing and order the same wattage. A lower rated supply can shut down or overheat under load. Voltage: choose 110V for a printer set up for 110V mains, as most US installations are, or 220V for a printer set up for 220V mains. The voltage on the old unit's label and the printer's rating plate should agree. If they do not, or the label is unreadable, send Rev1 a photo and your printer model.
Installation tips
Unplug the printer and wait a few minutes for the supply to discharge before you open the power compartment. Photograph the terminal block, then move one wire at a time to the new unit so mains and 24 V wiring stay in their original positions. Tighten every terminal and refit any covers. If you are not comfortable with mains wiring, Rev1 can do it for you.
CreatBot DC24 Switching Power Supply Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot DC24 Switching Power Supply — Questions
Which wattage and voltage do I need?
The same as the supply you are replacing. Read its label, or send Rev1 a photo and your printer model and we will confirm the part number.
Can I fit a 350W supply where a 200W was installed?
Use the wattage CreatBot fitted. A different unit may not match the mounting, wiring or protection in that position.
Is this a genuine CreatBot part?
Yes. Every version is a genuine CreatBot power supply, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
