CreatBotDAS Heating BlockGenuine CreatBot Replacement Part
DAS Heating Block for PEEK-300

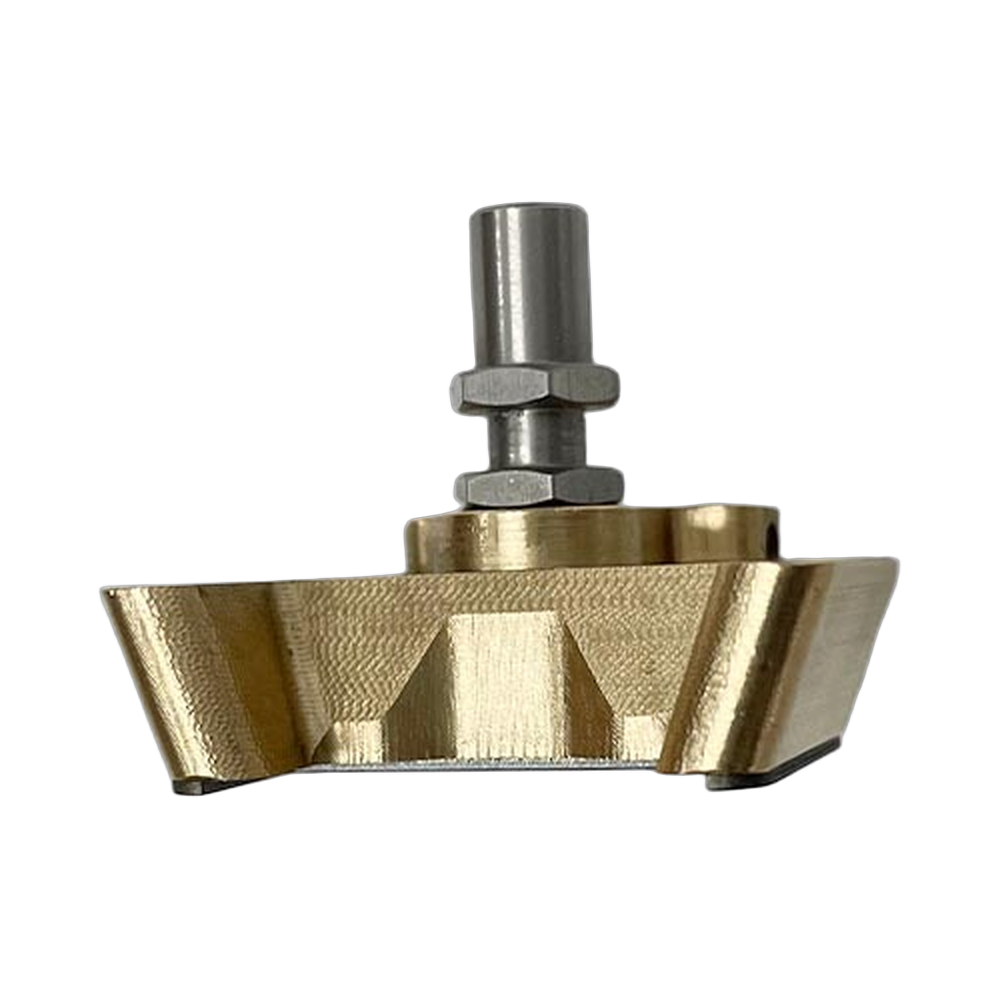

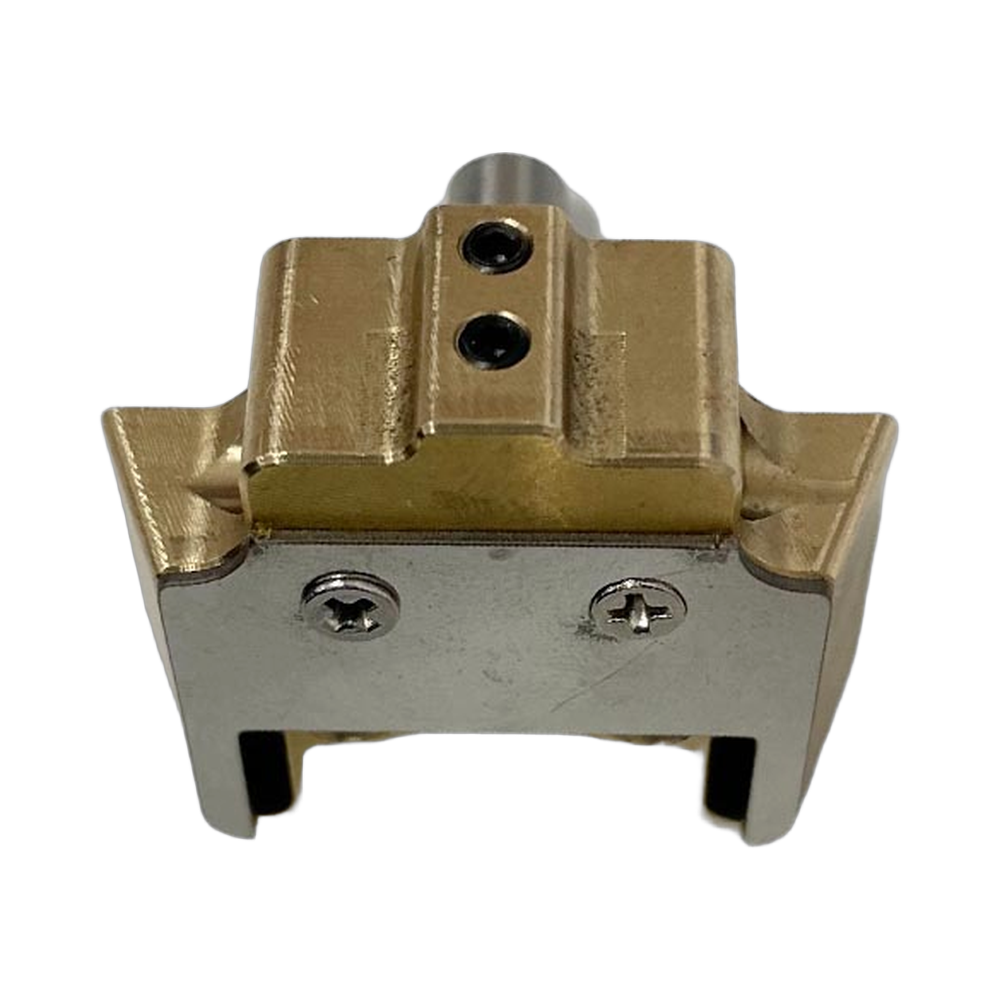

The CreatBot DAS heating block (part 102007) is an OEM hotend heating block for the CreatBot PEEK-300. The heating block is the core of the hotend: it holds the heater cartridge and temperature sensor, and the nozzle threads into it. It transfers heat into the melt zone so filament flows at a steady, controlled temperature. On a printer built for high temperature engineering materials, a block in good condition is essential for stable extrusion. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot DAS Heating Block, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating block needs replacing
Filament leaks around the nozzle threads, even after the nozzle is tightened hot.
Stripped or damaged nozzle threads, so a new nozzle will not seat properly.
The heater cartridge or sensor no longer sits firmly in its bore, causing unstable temperature readings.
Heavy baked-on material or physical damage after a blob or crash.
Compatible CreatBot 3D printer
The PEEK-300 also has a second listed block, the PEEK-300 Heating Block (part 102006). Other printers use different blocks: the PEEK-250 and F430 NX use part 102005, and the D1000 Pro HS, D600 Pro3 HS, D400 HS, D800 Ultra and D1200 Ultra use part 102011.
Which PEEK-300 heating block do I need?
Because two heating blocks are listed for the PEEK-300, compare the block on your printer with the product photos before you order, or send Rev1 your printer's serial number and a photo of the hotend. We will confirm whether your machine takes the DAS block (102007) or the PEEK-300 Heating Block (102006).
Installation tips
Remove the nozzle while the hotend is at temperature so the threads release cleanly. Then power the printer off, unplug it and let the hotend cool completely before you remove the heater cartridge and temperature sensor. Photograph the wiring and connectors first so everything goes back in the same place. After fitting the new block, tighten the nozzle hot, check for leaks, and recalibrate nozzle height before your next print.
CreatBot DAS Heating Block Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot DAS Heating Block — Questions
Is this a genuine CreatBot part?
Yes. It is CreatBot part 102007, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my PEEK-250?
No. The PEEK-250 uses the HS Heating Block V2, part 102005.
Should I replace the nozzle at the same time?
It is a good moment to do it, especially if the old nozzle was leaking or worn. The heater cartridge and sensor can usually be reused if they test good.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
