CreatBotD600 Z Axis BeltGenuine CreatBot Replacement Part
For the CreatBot D600

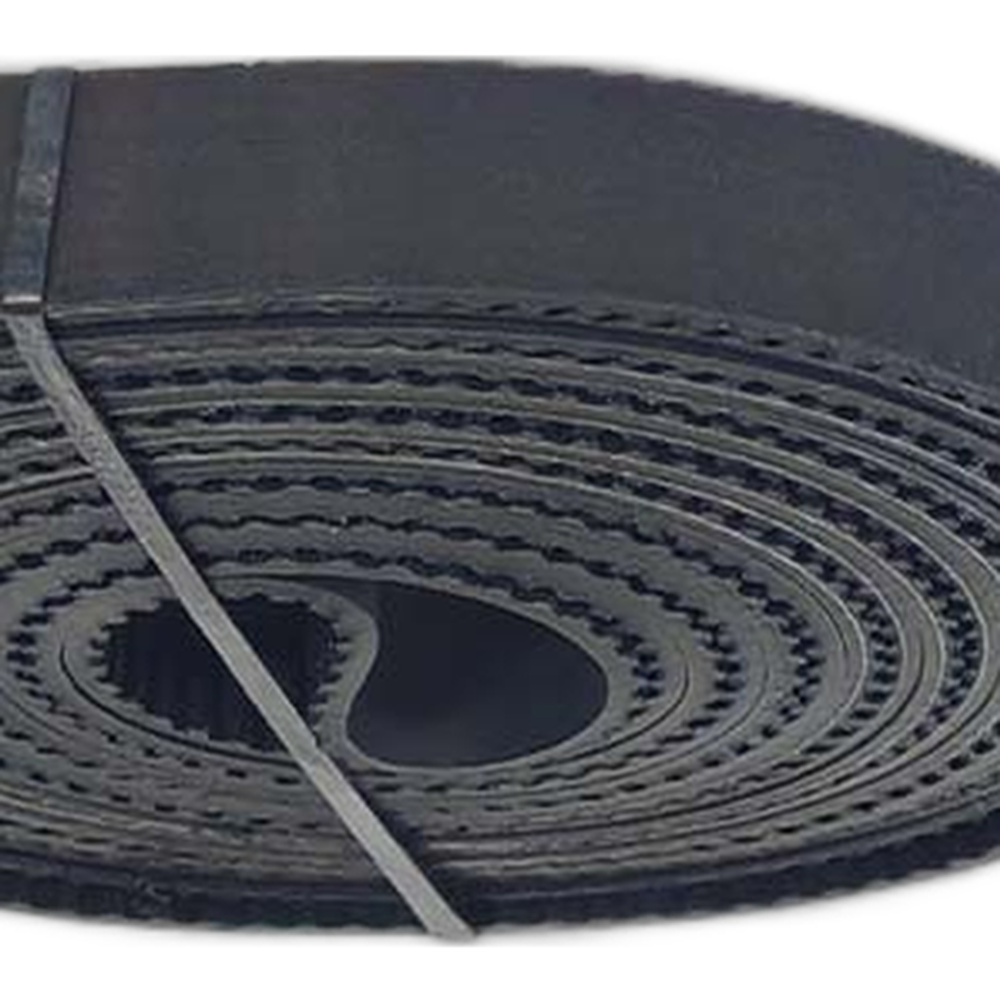

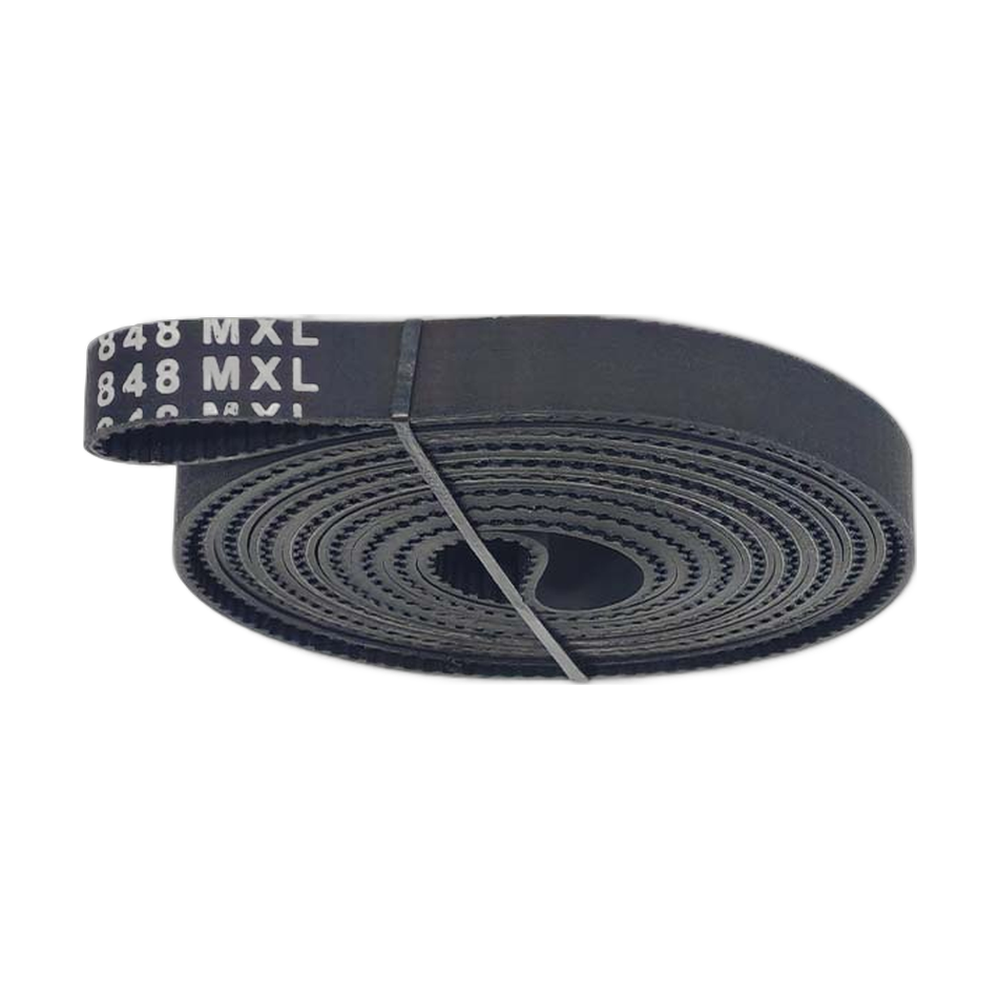

The CreatBot D600 Z axis belt (part 141007) is the OEM belt for the Z drive of the CreatBot D600 3D printer. The Z axis sets the height of every layer, so it has to move in small, exact steps for the whole print. The Z belt carries that motion through the drive. On a Z drive where one belt links more than one lead screw, it also keeps the screws turning together so the bed stays level relative to the nozzle. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Z Axis Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z belt needs replacing
Visible cracks, fraying, worn or missing teeth on the belt.
The belt has stretched and can no longer hold proper tension.
Uneven layer lines or banding that repeats up the height of the part.
The bed is no longer parallel to the gantry, so first layers are thick on one side and thin on the other.
Clicking or skipping from the Z drive when the axis moves.
Compatible CreatBot 3D printer
Later D600 models use their own Z belts: the D600 Pro2 uses part 141011 and the D600 Pro2 HS uses part 141012. Order the belt listed for your exact model, as belt length and routing can differ between machines.
Installation tips
Power the printer off and unplug it. Before removing the old belt, support the bed so it cannot drop, and photograph the belt path around every pulley. If the belt links several lead screws, do not turn any screw by hand while the belt is off, or the bed will be out of level when you reassemble. Fit the new belt along the same path, set the tension so the belt is firm without being over tight, then re-level the bed and run a test print.
CreatBot D600 Z Axis Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Z Axis Belt — Questions
Will this belt fit a D600 Pro2?
No. The D600 Pro2 uses Z axis belt 141011.
How tight should the belt be?
Firm enough that it does not slip or skip, but not so tight that it loads the bearings. If you are unsure, Rev1 support can talk you through it.
Is this a genuine CreatBot belt?
Yes, part 141007, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
