CreatBotD600 Pro3 HS Z Motor DriverGenuine CreatBot Replacement Part
D600 Pro3 HS Z Motor Driver for D400 HS, D600 Pro3 HS and D1000 Pro HS

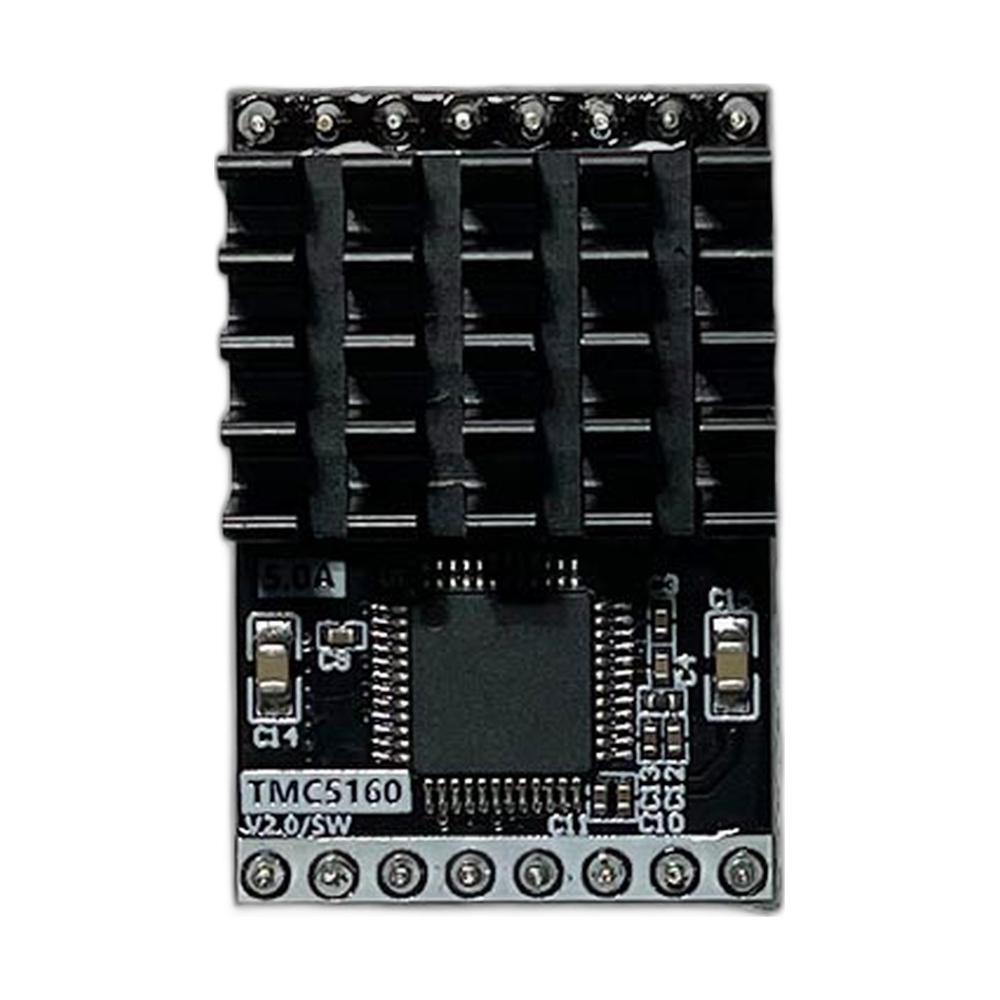

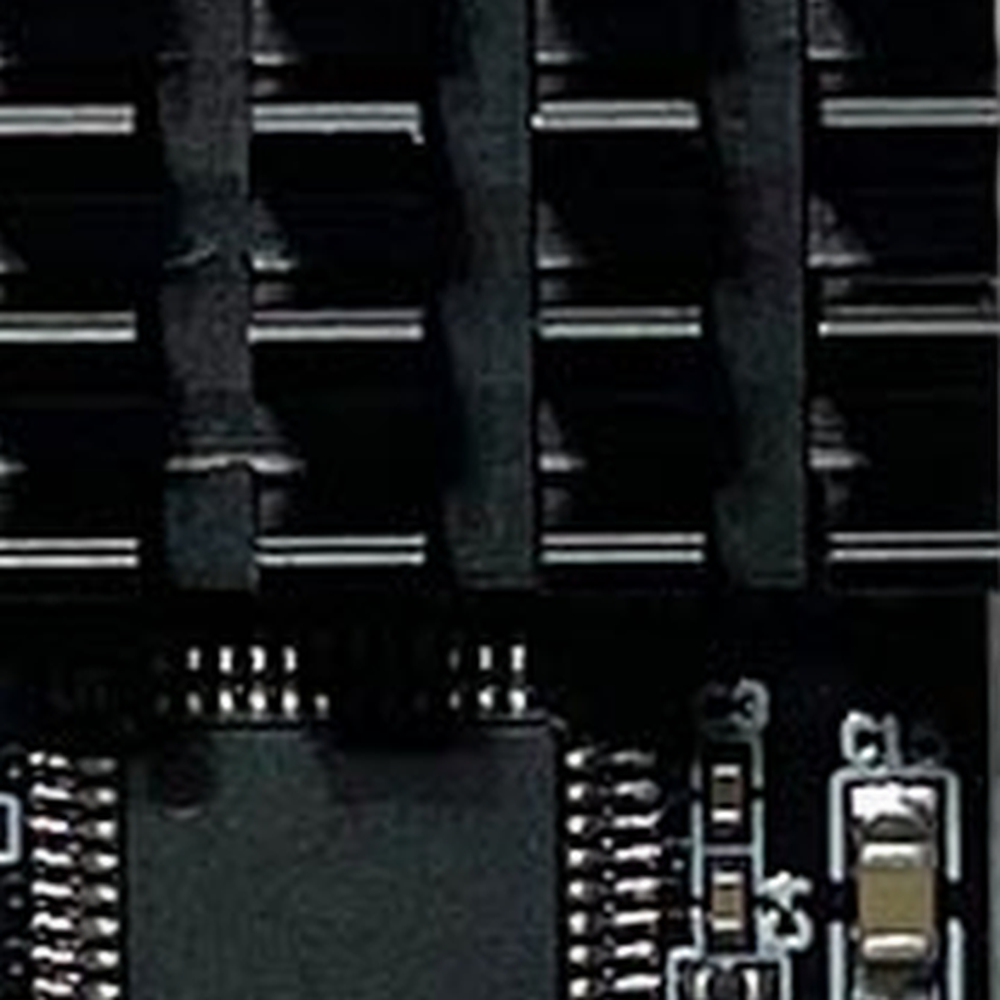

The CreatBot D600 Pro3 HS Z motor driver (part 115018) is the OEM stepper motor driver for the Z axis on CreatBot's current HS printers: the D400 HS, D600 Pro3 HS and D1000 Pro HS. The Z axis controls layer height. Each time a layer finishes, the main control board tells the Z driver to step the axis by a precise amount, and the driver supplies the current that moves the Z motor. Consistent Z steps are what give a print even layer lines and the right finished height. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro3 HS Z Motor Driver, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor driver may need replacing
Uneven layers, banding or parts that finish at the wrong height.
The Z axis does not move, moves erratically or the motor only buzzes.
Z homing or bed mesh leveling stops with an error.
The Z motor runs normally from a known good driver channel.
Mechanical problems such as a binding lead screw or loose coupler cause similar faults. Rule those out, or ask Rev1 support to help.
Compatible CreatBot 3D printers
About part number 115018
CreatBot uses part number 115018 for more than one driver listing: this Z motor driver, the extruder motor driver for the same printers plus the D800 Ultra and D1200 Ultra, and the TMC5160 drive (V2). When you order, tell Rev1 your printer model and which axis you are repairing so the right module ships. The D1000 Pro HS X and Y axes use separate parts, 115019 and 115020.
Installation tips
Clear the build plate, power the printer off and unplug it. Photograph the fitted driver so its orientation is clear, then install the new module the same way round and reconnect the Z motor cable. Home the printer, run bed mesh leveling and print a tall test part.
CreatBot D600 Pro3 HS Z Motor Driver Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro3 HS Z Motor Driver — Questions
Does it fit the D600 Pro2 HS?
No. It is listed for the D400 HS, D600 Pro3 HS and D1000 Pro HS.
Is it the same as the extruder motor driver?
CreatBot lists both under part 115018. Tell us the axis you need when ordering.
Is this a genuine CreatBot part?
Yes, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
