CreatBotD600 Pro3 HS Z-Axis MotorGenuine CreatBot Replacement Part
For the CreatBot D600 Pro3 HS

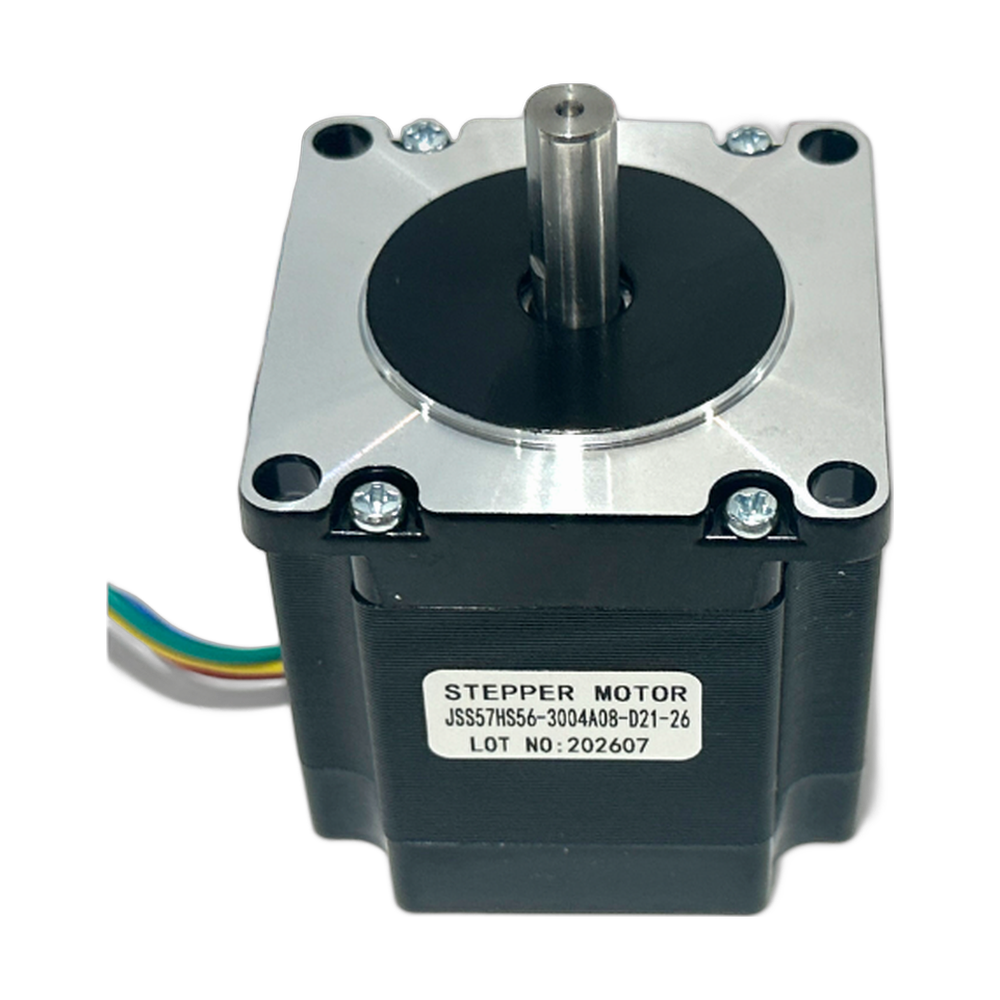

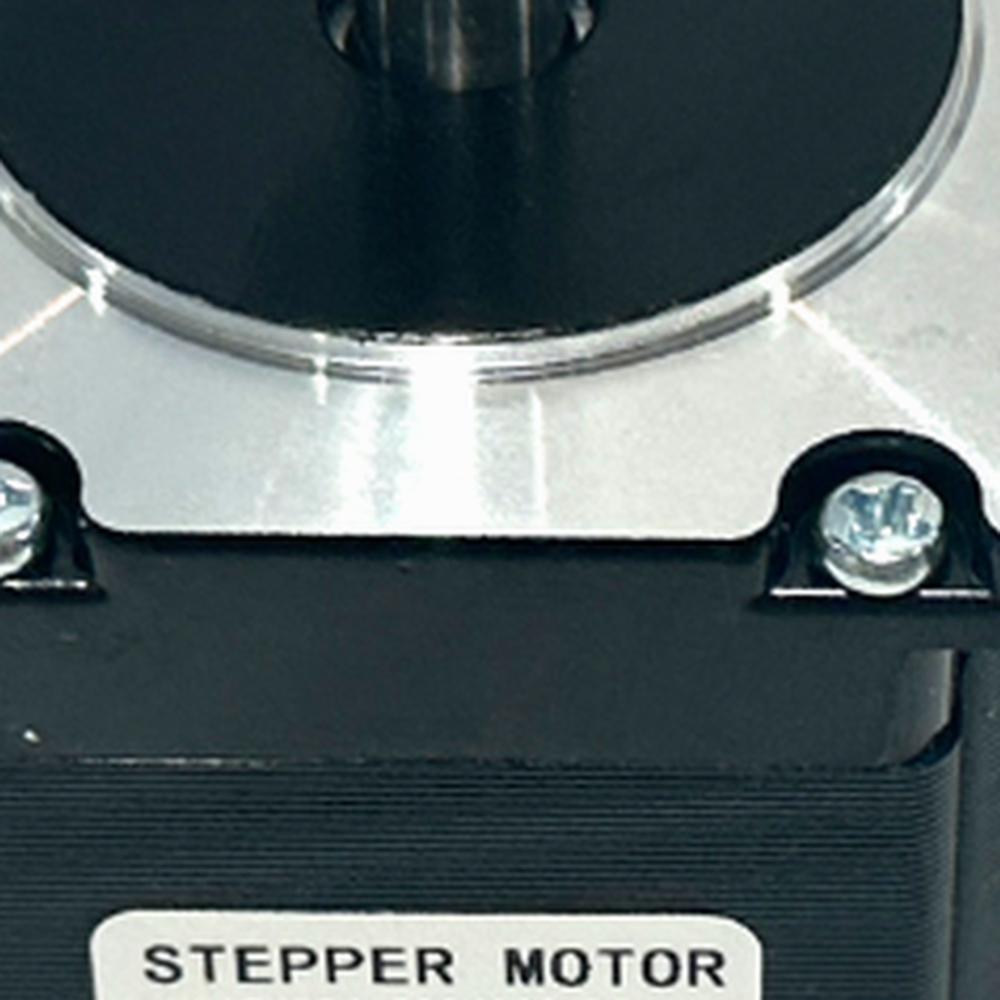

The CreatBot Z-axis motor (part 131040) is the OEM Z motor for the CreatBot D600 Pro3 HS. It moves the Z axis one layer height after every layer and holds position while the layer prints. The D600 Pro3 HS combines a tall build volume with high print speeds, so layers come quickly and a large part can stack hundreds of them. A Z motor that misses even a few steps shows as banding, a shifted layer or a part that comes out the wrong height. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro3 HS Z-Axis Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z-axis motor needs replacing
The Z axis does not home, or stalls when you jog it from the touchscreen.
Banding, squashed layers or a visible step partway up a tall print.
Inconsistent first layer height from print to print after leveling.
Grinding, knocking or rough noise from the Z drive.
Binding in the Z mechanism, a loose coupling or a cable or driver fault can produce the same results. Rev1 support can help you confirm the motor is the cause.
Compatible CreatBot 3D printer
Other D600 models use different Z motors: the D600 Pro2 HS uses 131001, the D600 Pro2 uses 131026 and the D600 Pro uses 131023. The D600 Pro3 HS extruder motors are parts 131038 (E1) and 131039 (E2).
Installation tips
Power the printer off and unplug it. Support the Z assembly securely before you release the motor, since a large format platform can drop when the drive is disconnected. Photograph the cable routing and connector, fit the new motor in the same position and orientation, and confirm it is fully seated. Run the axis through its full travel, then home, re-level and print a first layer test before returning to high speed jobs.
CreatBot D600 Pro3 HS Z-Axis Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro3 HS Z-Axis Motor — Questions
Does this Z motor fit the D600 Pro2 HS?
No. The D600 Pro2 HS uses Z motor 131001.
Does it fit the D400 HS or D1000 Pro HS?
It is listed for the D600 Pro3 HS only. Contact Rev1 support for the correct Z motor for other HS models.
Is this a genuine CreatBot part?
Yes. It is part 131040, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
