CreatBotD600 Pro2 Z MotorGenuine CreatBot Replacement Part

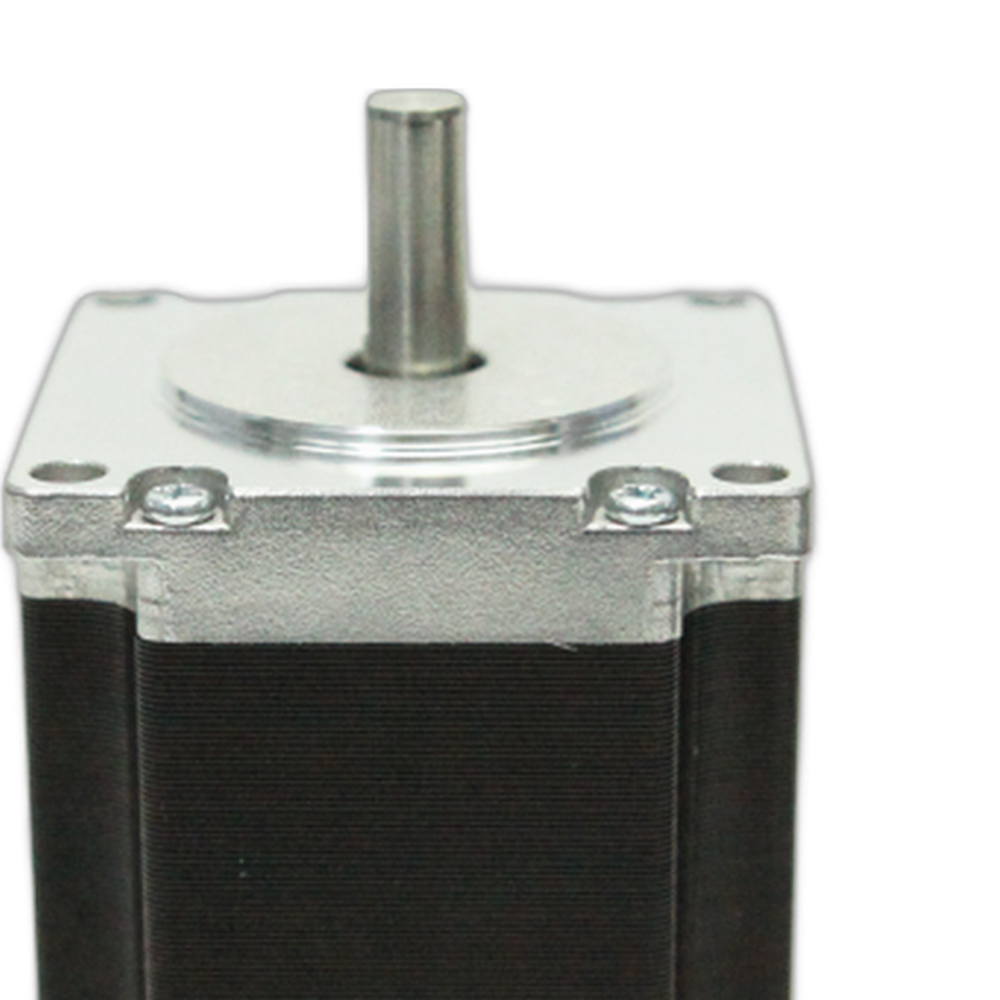

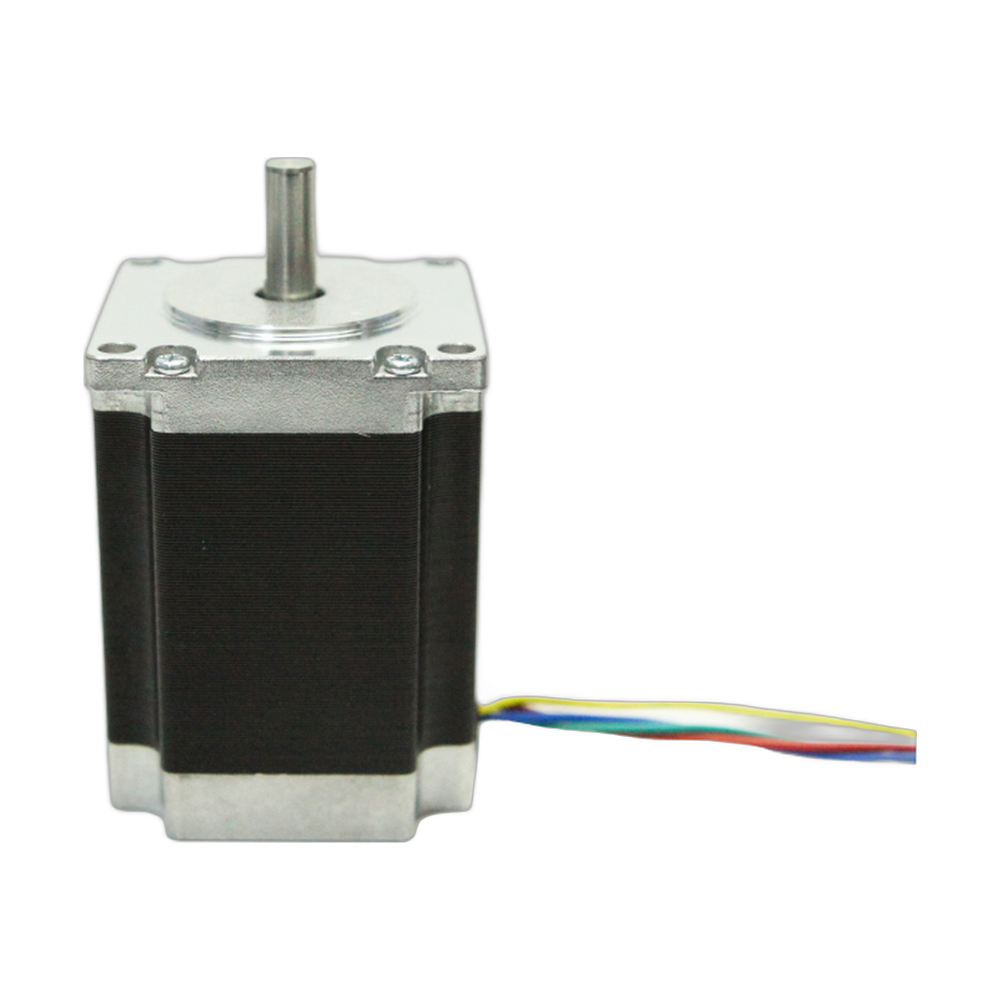

D600 Pro2 Z Motor (Z-Axis Drive Motor)
The CreatBot D600 Pro2 Z motor (part 131026) is the OEM Z-axis motor for the CreatBot D600 Pro2 large format 3D printer. The Z motor sets the height of every layer: after each layer it moves the Z axis by exactly one layer height, so its accuracy decides how even your layer lines are and whether a tall part stays true from the first layer to the last. On a machine with the build height of the D600 Pro2, a healthy Z drive matters on every long job. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor needs replacing
The Z axis does not move, or moves in one direction only, when you jog it from the touchscreen.
Grinding, buzzing or clicking from the Z drive during homing or printing.
Uneven layer lines, squashed layers or a sudden step in height partway up a tall print.
The axis stalls under load or the motor runs noticeably hotter than it used to.
A binding Z drive, a loose coupling, a damaged cable or a driver fault can cause the same symptoms. Rev1 support can help you rule those out before you order.
Compatible CreatBot 3D printer
Other D600 models use their own Z motors: the D600 Pro uses part 131023, the D600 Pro2 HS uses part 131001 and the D600 Pro3 HS uses part 131040. The D600 Pro2 extruder motors are parts 131024 (E1) and 131025 (E2).
Installation tips
Power the printer off and unplug it. Support the moving Z assembly before you release the motor so nothing drops when the drive is disconnected. Photograph the cable routing and connector, then fit the new motor in the same position and orientation. Jog the Z axis through its full travel to check for binding, home the printer, re-level the bed and run a first layer test before you start a long job.
CreatBot D600 Pro2 Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 Z Motor — Questions
Will this fit a D600 Pro2 HS?
No. The D600 Pro2 HS uses its own Z motor, part 131001.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 131026, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose the Z axis, fit the motor and test the printer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
