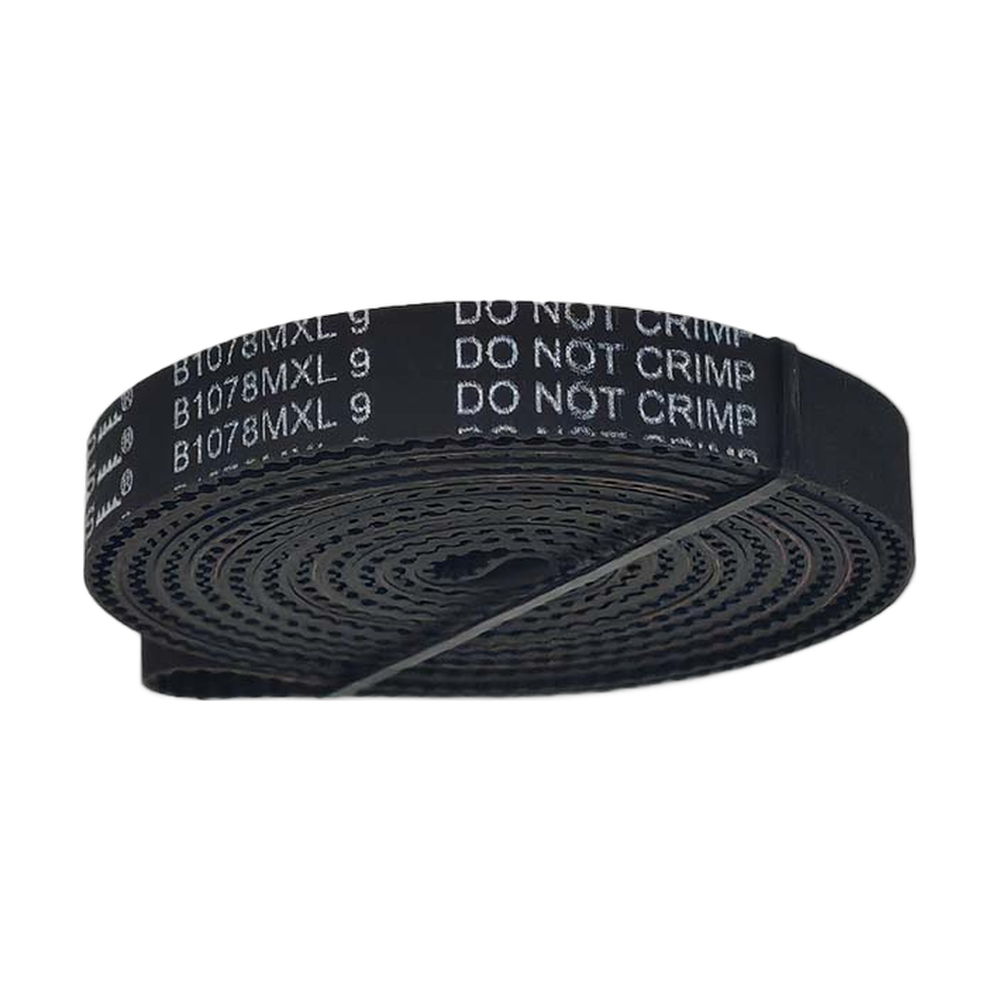

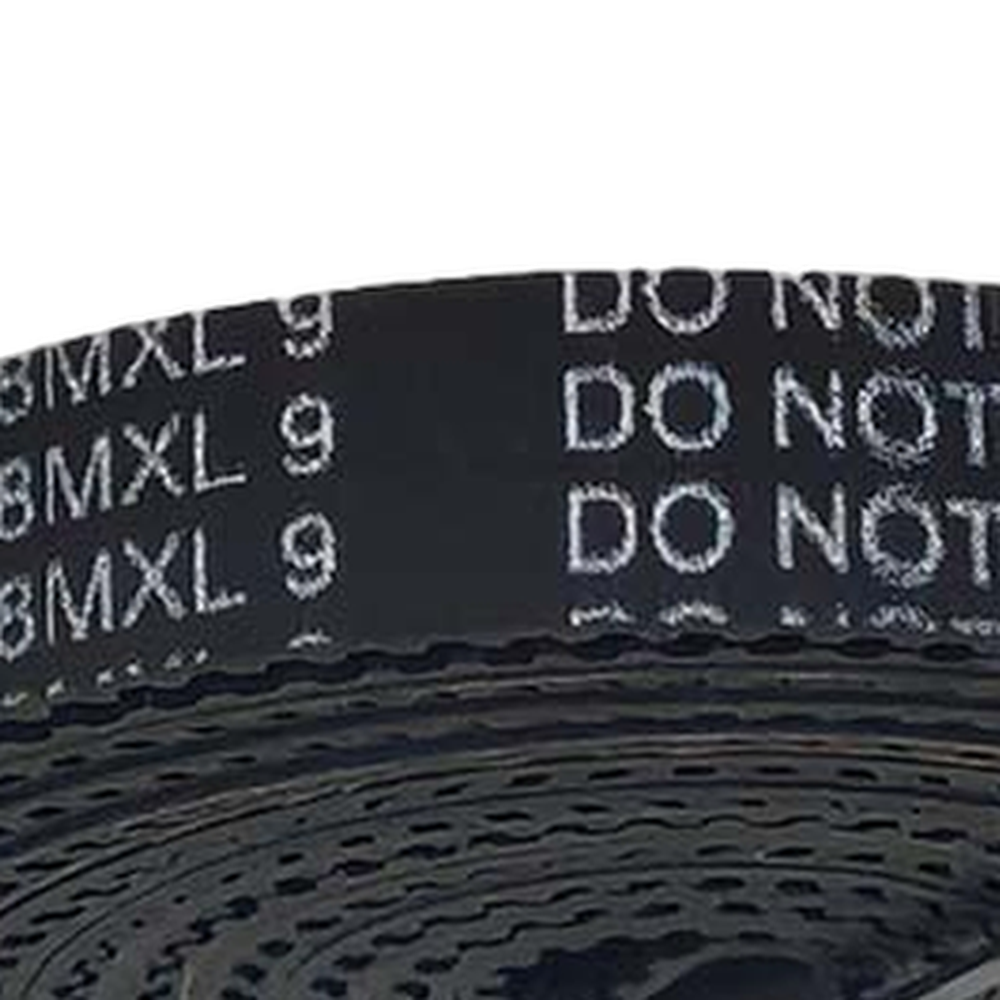

CreatBotD600 Pro2 / D600 Pro2 HS Z-Axis BeltGenuine CreatBot Replacement Part
D600 Pro2 Z-Axis Belt for D600 Pro2 and D600 Pro2 HS 3D Printers
The CreatBot D600 Pro2 Z-axis belt is the OEM drive belt for the Z axis of the CreatBot D600 Pro2 and D600 Pro2 HS. The Z axis sets the height of every layer, so the belt that drives it has to move the build platform smoothly and in step, layer after layer, for the length of a large print. CreatBot sells this belt under two part numbers, one for each printer, and this listing offers both. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 / D600 Pro2 HS Z-Axis Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
One part, two CreatBot part numbers
CreatBot lists the belt as 141011 for the D600 Pro2 and as 141012 for the D600 Pro2 HS. CreatBot confirmed they are the same physical belt, so each number fits both printers. Pick the number for your printer and you receive the identical part.
Signs the Z-axis belt needs replacing
Uneven or repeating lines across the layers, or layer heights that drift during a print.
The platform tilts, binds or moves unevenly when the Z axis travels.
Visible wear on the belt: frayed edges, cracks, missing teeth or a glazed surface.
Clicking or skipping noises from the Z drive.
Choose your printer
| Printer | CreatBot part number | Fits |
|---|---|---|
| D600 Pro2 | 141011 | D600 Pro2, D600 Pro2 HS |
| D600 Pro2 HS | 141012 | D600 Pro2, D600 Pro2 HS |
Compatible CreatBot 3D printers
Other models use their own Z belts: D600 (141007), PEEK-300 (141008), PEEK-250 (141009), F430 (141006) and F430 NX (141010).
Which part number should I choose?
Either one works. The belt is identical, and CreatBot simply catalogs it once per printer. Ordering the number for your own model keeps your maintenance records tidy, but a D600 Pro2 owner who orders 141012 gets the right belt. If your printer is a different model, use the list above to find its own Z belt.
Installation tips
Power the printer off and support the build platform before you release belt tension, so the platform cannot drop. Note how the belt is routed around each pulley before removal. Fit the new belt along the same path, set the tension so it is firm without being overtight, and check the platform is level before you tighten everything. Finish with a homing run, a bed leveling routine and a short test print.
CreatBot D600 Pro2 / D600 Pro2 HS Z-Axis Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 / D600 Pro2 HS Z-Axis Belt — Questions
Which printer number do I need?
Either. 141011 (D600 Pro2) and 141012 (D600 Pro2 HS) are the same belt and fit both printers.
Does it fit the plain D600?
No. The D600 uses its own Z belt, part 141007.
Is this a genuine CreatBot belt?
Yes. It is supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
