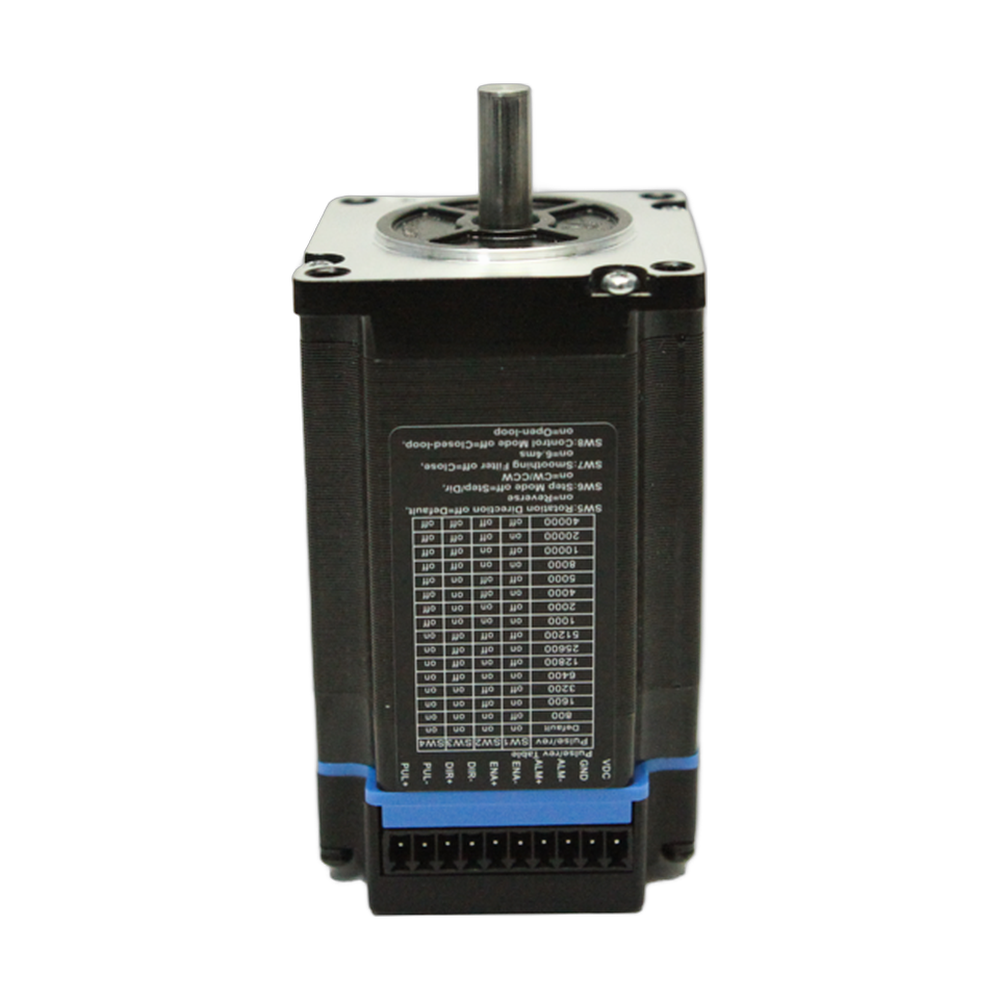

CreatBotD600 Pro2 Y Axis MotorGenuine CreatBot Replacement Part
D600 Pro2 Y Axis Motor for D600 Pro2 HS
The CreatBot D600 Pro2 Y motor (part 132009) is an OEM Y axis motor that CreatBot lists for the D600 Pro2 HS. The Y axis handles front to back motion, and on a large format machine it moves a significant load on every layer. A worn or failing Y motor shows up as front to back shifts, rough motion and noise, and it tends to get worse over time rather than better. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 Y Axis Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Y motor needs replacing
Parts show an offset or step in the Y direction while X stays aligned.
The Y axis buzzes, stalls or vibrates during quick moves.
Y homing fails or the axis stops responding.
The shaft feels gritty or uneven when turned by hand with the printer off.
Rule out a slack belt, a slipping pulley and a damaged cable before changing the motor. Rev1 support can help you test each of these.
Which Y motor does my D600 Pro2 HS use?
Two Y motors are listed for the D600 Pro2 HS: this motor, part 132009, and the Y closed-loop motor, part 132002. Check the label on your existing motor, or send Rev1 your serial number, so you order the motor that matches your machine. Mixing motor types can change how the axis behaves.
Compatible CreatBot 3D printer
The matching X motor is part 132008. For the D600 Pro, order Y motor 132007.
Installation tips
Power the printer off and unplug it. Take a photo of the connector and cable path, slacken the Y belt and remove the motor mounting screws. Fit the new motor in the same orientation and line up the pulley with the belt. Restore tension, home the axes and print a calibration square to check the Y dimension.
CreatBot D600 Pro2 Y Axis Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 Y Axis Motor — Questions
Is this the closed-loop Y motor?
No. The closed-loop Y motor for the D600 Pro2 HS is part 132002.
Should I replace X and Y together?
Only if both show symptoms. Each motor is sold separately and can be changed on its own.
Can Rev1 install it?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test the Y axis.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
