CreatBotD600 Pro2 MotherboardGenuine CreatBot Replacement Part

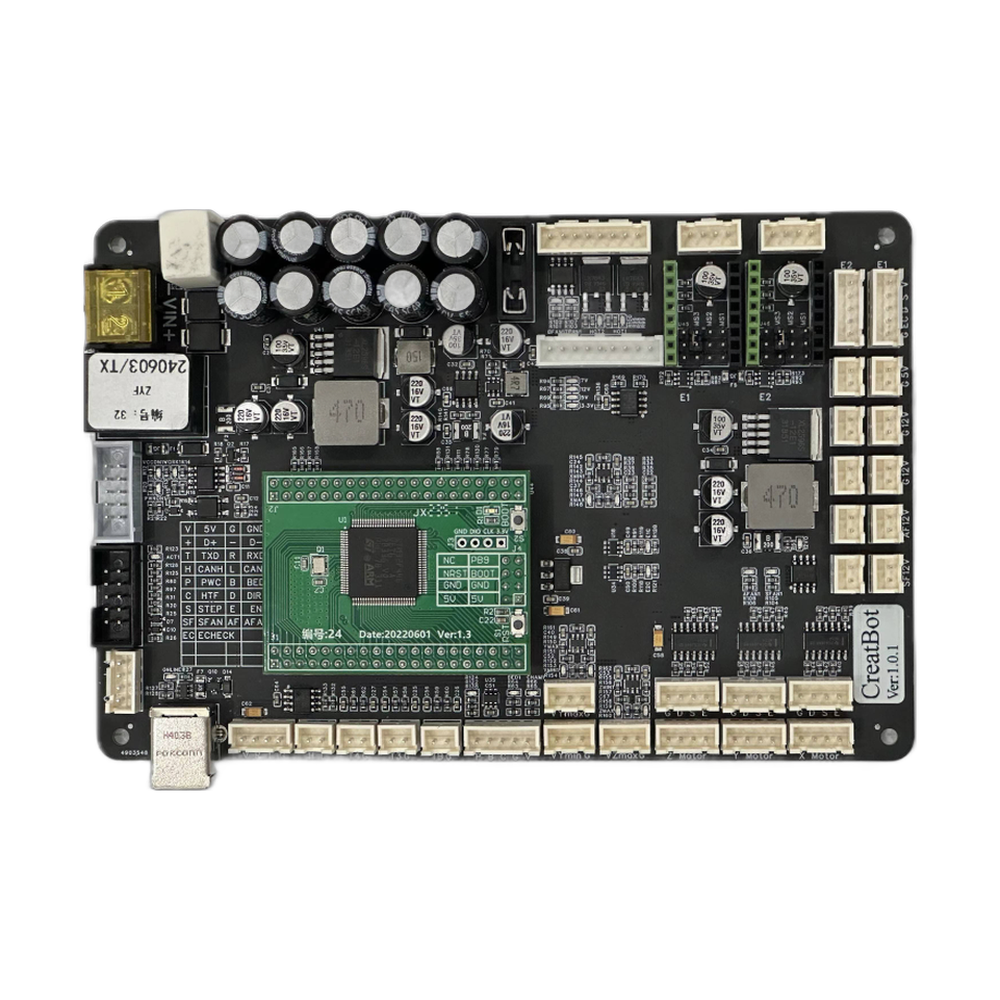

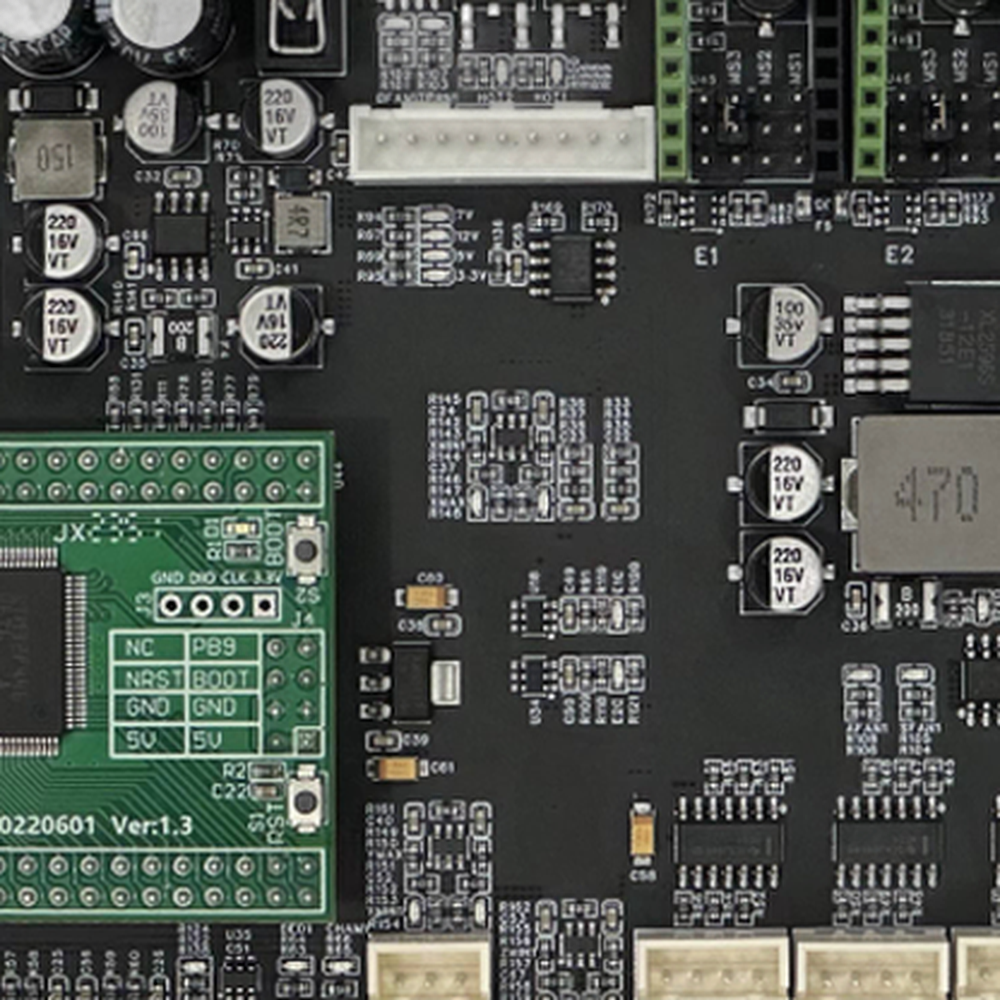

D600 Pro2 Motherboard (Main Control Board)
The CreatBot D600 Pro2 motherboard (part 111010) is the OEM main control board for the CreatBot D600 Pro2. Every function of the printer depends on it. The board drives the stepper motors, switches the hotends, heated bed and fans, and reads the endstops, thermistors and other sensors. When it fails, the printer stops, and a genuine CreatBot board brings it back to the way it left the factory. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why a genuine board
Same mounting and connectors as the original, so the existing wiring plugs straight back in.
Designed for this printer's motors, heaters and sensors.
Rev1 can confirm the firmware with you and help if anything does not behave as expected.
Signs the motherboard may have failed
The printer does not start, or the screen stays blank.
One motor, heater or fan stops responding while the component itself tests good.
Visible damage such as burnt components or a damaged connector.
These symptoms can also come from the power supply or a cable. Contact Rev1 support before ordering and we will help you find the fault.
Compatible CreatBot 3D printer
The D600 Pro2 HS uses a different board (111001). Earlier D600 Pro printers use the 8-bit boards (111007, 111008) or the 32-bit board (111009).
Installation
Power the printer off and unplug it before opening the electronics bay. Photograph the board and every connector, and label cables before you disconnect them. Use anti-static precautions when handling the new board. After installation, check the firmware version with Rev1 support, then run homing, heating and leveling and a short test print. If your printer is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot D600 Pro2 Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 Motherboard — Questions
Will it fit my D600 Pro2 HS?
No. The D600 Pro2 HS uses part 111001.
Does it fit the older D600 Pro?
No. The D600 Pro uses the 8-bit boards (111007 or 111008) or the 32-bit board (111009), depending on how it was built.
Can Rev1 install it?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test the board.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
