CreatBotD600 Pro2 HS Z MotorGenuine CreatBot Replacement Part

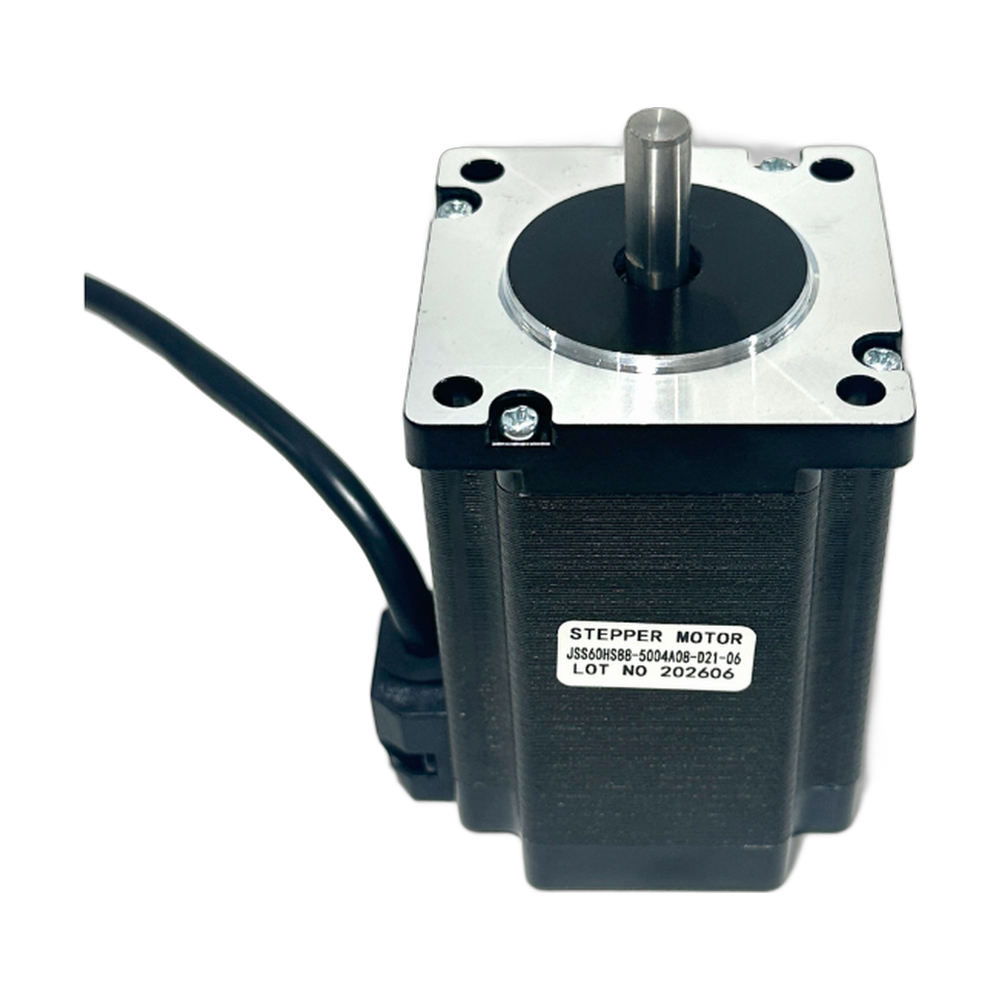

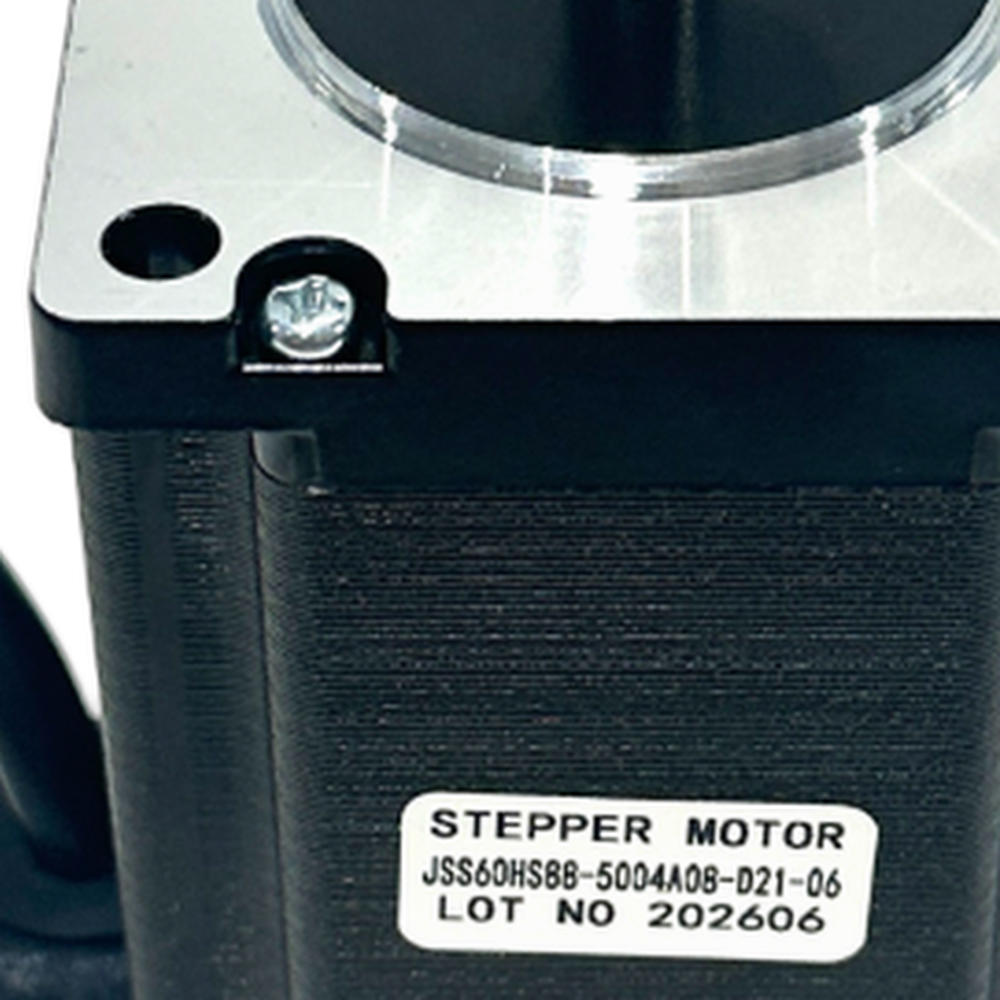

D600 Pro2 HS Z-Axis Motor
The CreatBot D600 Pro2 HS Z motor (part 131001) is the OEM Z-axis motor for the CreatBot D600 Pro2 HS. It moves the Z axis that sets the gap between nozzle and build plate, one layer at a time. High speed printing lays down layers quickly, so the Z axis has to step cleanly and on time throughout the build. A worn or failing Z motor shows up as uneven layers, homing problems or prints that stop partway. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 HS Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor may need replacing
The Z axis does not move, stalls, or moves with a stutter.
Buzzing or grinding from the Z motor during homing or printing.
Banding, uneven layer lines or short parts that continue after the lead screw and coupling have been checked.
A damaged motor body, shaft or connector.
Mechanical binding in the Z axis can overload a good motor and make it look faulty. Clean and check the Z mechanics, then confirm the motor if the problem remains. Rev1 support can help.
Compatible CreatBot 3D printer
Other D600 Pro2 HS and D600 motors
D600 Pro2 HS extruder motors: 131002 (left) and 131003 (right)
D600 Pro2 Z motor: 131026
D600 Pro3 HS Z-axis motor: 131040
These are separate parts. Order the one that matches your printer model and axis.
Installation tips
Power off and unplug the printer. Support the Z axis so it cannot drop during the swap. Photograph the motor mount, coupling and cable route, then remove the old motor. Fit the new one, tighten the coupling evenly, reconnect, home the printer, run the bed leveling routine and finish with a test print.
CreatBot D600 Pro2 HS Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 HS Z Motor — Questions
Will this fit the D600 Pro3 HS?
No. The D600 Pro3 HS uses Z-axis motor 131040.
Is the D600 Pro2 Z motor the same part?
No. The standard D600 Pro2 uses part 131026.
Is this a genuine CreatBot motor?
Yes. It is CreatBot part 131001, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
