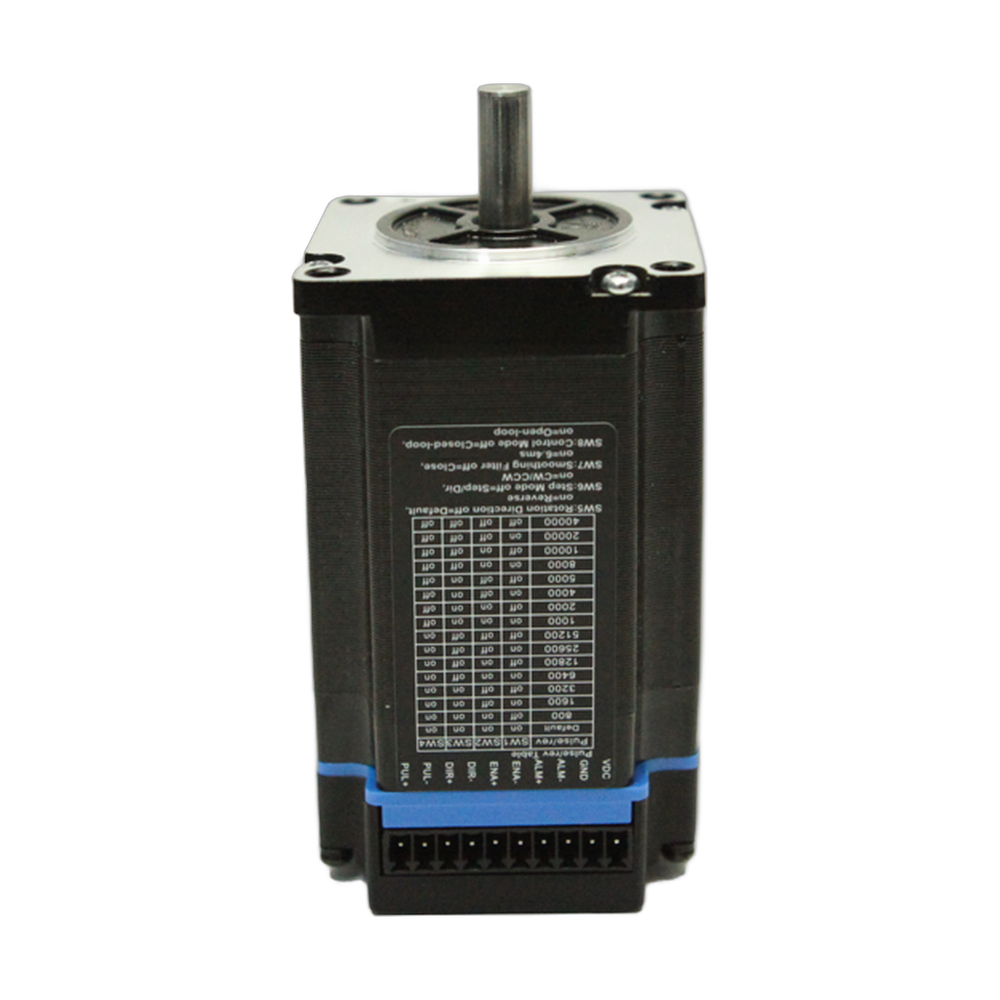

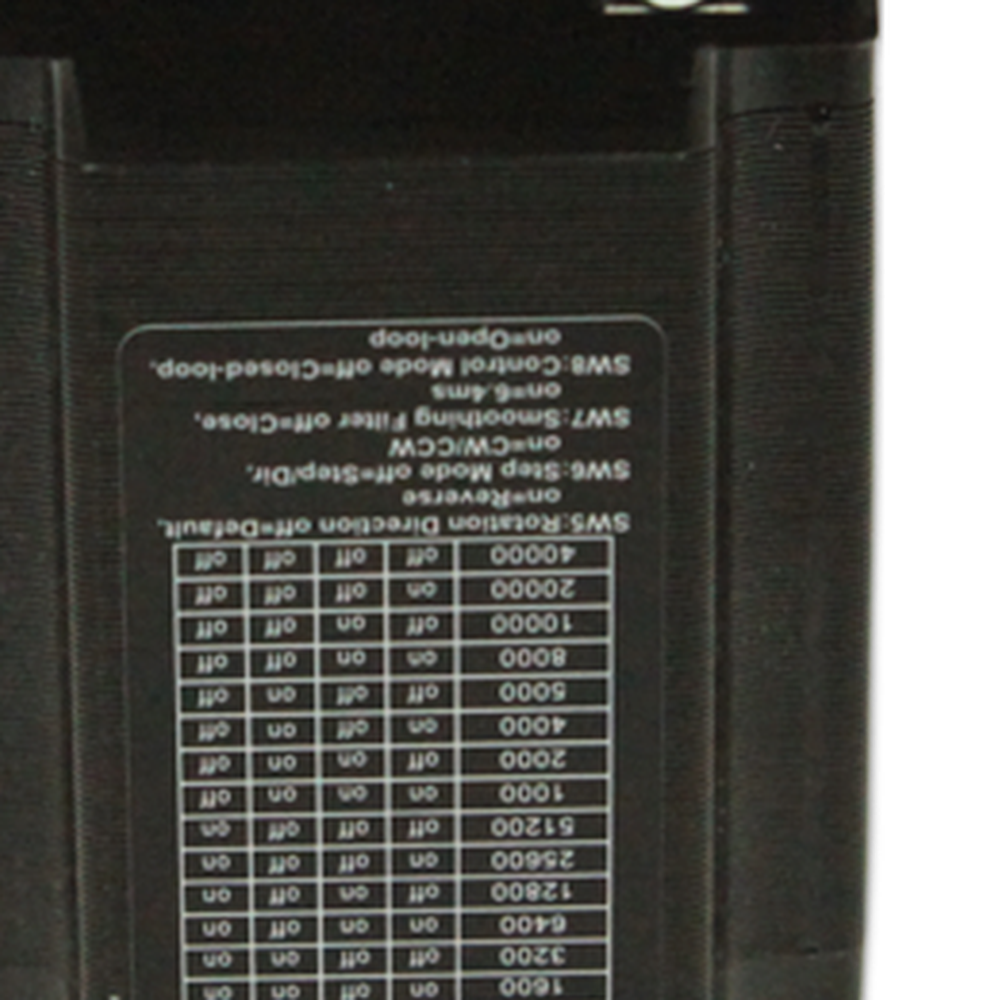

CreatBotD600 Pro2 HS Y Closed-Loop MotorGenuine CreatBot Replacement Part
D600 Pro2 HS Y Axis Closed-Loop Motor
The CreatBot D600 Pro2 HS Y closed-loop motor (part 132002) is the OEM motor that drives the Y axis on the CreatBot D600 Pro2 HS. On a high speed printer the Y axis has to start, stop and reverse quickly while carrying its load, which is exactly the situation where an open-loop motor can slip. The closed-loop design uses an encoder to report the real shaft position to the driver, which corrects small errors instead of letting them build up into a visible shift. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 HS Y Closed-Loop Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace with the genuine closed-loop motor
The D600 Pro2 HS motion settings were tuned around CreatBot's own motors.
Fitting an open-loop motor in its place would remove the position checking the HS relies on.
As the motor you are removing, so the swap is direct.
Signs it needs replacing
Position or motor errors reported on the Y axis.
Front to back layer shifts, or a Y axis that hesitates and then jumps.
Grinding, whining or vibration from the Y motor during fast moves.
A cable fault or a loose encoder connector can cause the same errors, so check those first or ask Rev1 support to help.
Compatible CreatBot 3D printer
The X axis uses closed-loop motor 132001. CreatBot also lists Y motor 132009 for the D600 Pro2 HS; Rev1 can confirm which Y motor your printer has from its serial number.
Installation tips
Turn the printer off and unplug it. Photograph the motor and encoder connectors, then release the Y belt tension and unbolt the motor. Fit the new motor the same way round, align the pulley with the belt and restore tension. Reconnect both the motor and encoder wiring, home all axes and run a high speed test print.
CreatBot D600 Pro2 HS Y Closed-Loop Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 HS Y Closed-Loop Motor — Questions
Is the Y motor the same as the X motor?
No. CreatBot lists them as separate parts: Y is 132002 and X is 132001.
Does it fit the standard D600 Pro2?
It is listed for the D600 Pro2 HS only. Contact Rev1 for the correct motor for other D600 models.
Can Rev1 fit the motor?
Yes. Rev1 is a certified CreatBot service provider and can replace and test it for you.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
