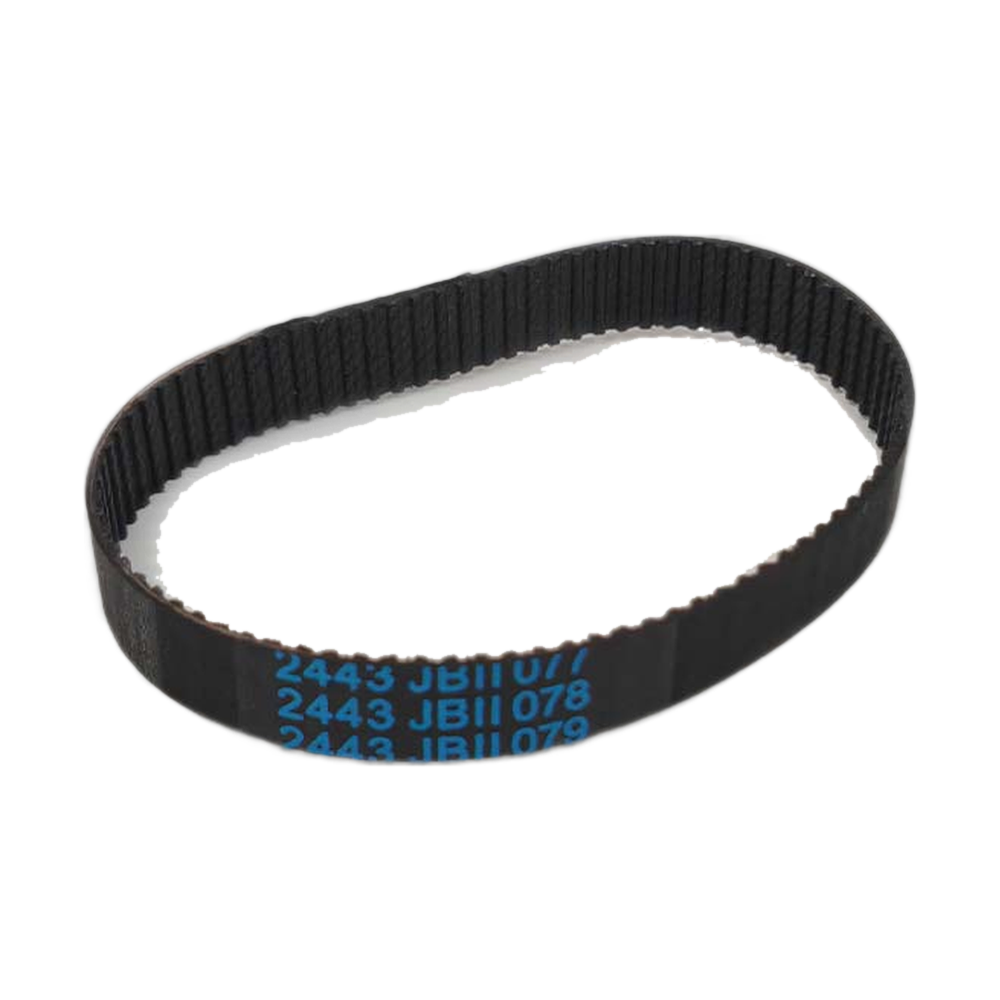

CreatBotD600 Pro2 HS Y Closed Loop BeltGenuine CreatBot Replacement Part
D600 Pro2 HS Y-Axis Closed Loop Belt
The CreatBot D600 Pro2 HS Y-axis closed loop belt (part 143009) is the OEM endless belt in the Y-axis drive of the CreatBot D600 Pro2 HS. A closed loop belt is one continuous loop with no ends, and belts of this type usually carry drive from one pulley to another, for example from a motor to a shaft. On a high speed printer that drive is under load with every fast Y move, so the loop is worth checking during routine maintenance. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 HS Y Closed Loop Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the closed loop belt needs replacing
Y-axis shifts that persist after the Y-axis belt has been checked or replaced.
A skipping, chirping or rough noise from the Y drive at speed.
Cracks, fraying, glazing or worn teeth on the loop.
No tension adjustment left on the motor mount or tensioner.
Compatible CreatBot 3D printer
The D600 Pro2 HS also uses an X-axis belt (143007) and a Y-axis belt (143008). The standard D600 Pro2 uses closed loop belt 143006, and the D600 Pro uses 143003.
Replacing an endless belt
An endless loop has to be slipped over its pulleys, so the job usually starts by slackening the motor mount or tensioner. Some layouts also need a guard or pulley removed. It is good practice to inspect the pulleys while they are exposed: worn or damaged pulley teeth will wear out a new belt quickly.
Installation tips
Power the printer off and unplug it. Mark the motor or tensioner position before loosening it. Fit the new loop with the teeth fully seated on both pulleys, return the tension to the mark, and turn the drive by hand to make sure the belt runs centered and quietly. Home the printer and run a test print that includes fast Y moves.
CreatBot D600 Pro2 HS Y Closed Loop Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 HS Y Closed Loop Belt — Questions
How is this different from the Y-axis belt?
The Y-axis belt (143008) moves the axis. This closed loop belt (143009) is the endless loop in the Y drive.
Will it fit the D600 Pro2?
No. The D600 Pro2 uses part 143006.
Can Rev1 replace it?
Yes. Rev1 Technologies is a certified CreatBot service provider and can replace the belt and check the Y drive.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
