CreatBotD600 Pro2 HS X Closed-Loop MotorGenuine CreatBot Replacement Part

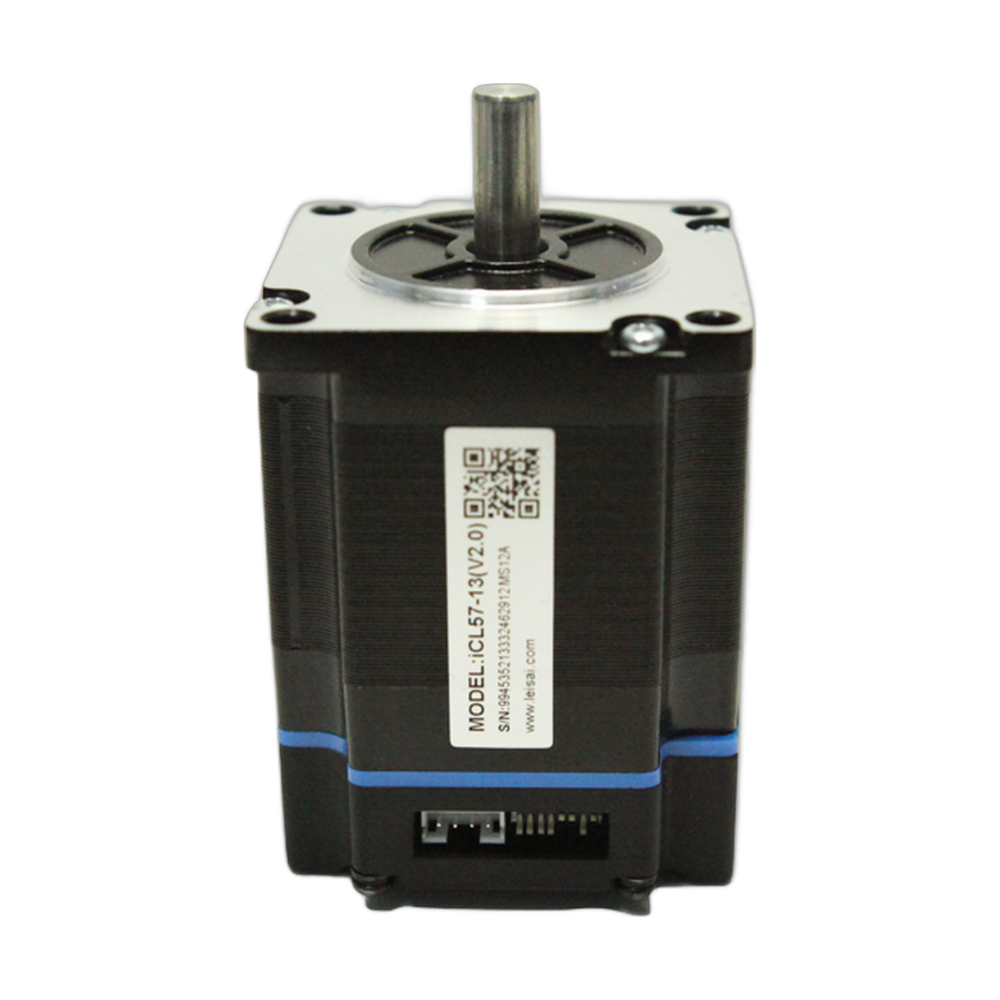

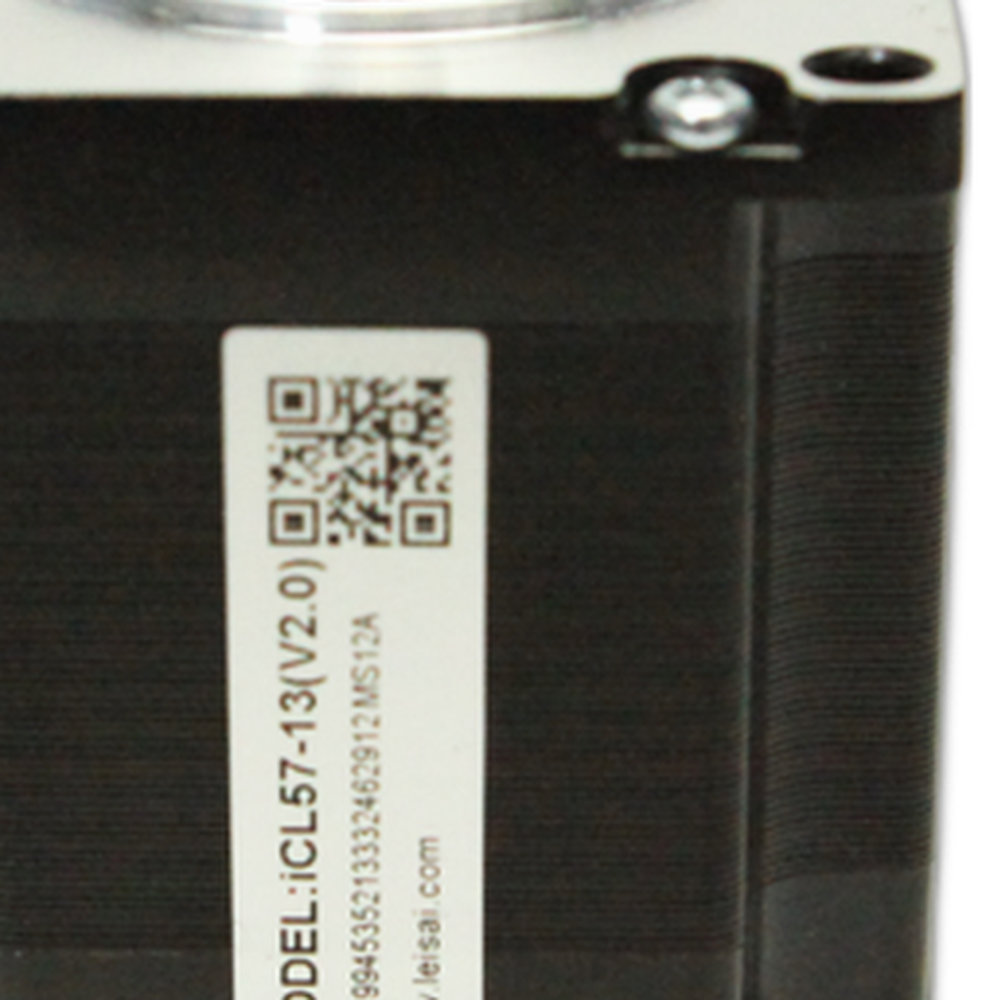

D600 Pro2 HS X Axis Closed-Loop Motor
The CreatBot D600 Pro2 HS X closed-loop motor (part 132001) is the OEM X axis motor for the CreatBot D600 Pro2 HS. The HS models are built to print fast, and fast motion is where an ordinary open-loop motor is most likely to lose steps. A closed-loop motor reports its actual position back to its driver, so the system can detect and correct a lag before it turns into a shifted layer. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 HS X Closed-Loop Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why a closed-loop motor matters on the X axis
The motor's encoder tells the driver where the shaft really is, not only where it was commanded to be.
Rapid direction changes on the X axis are handled with correction rather than lost steps.
A genuine CreatBot part matches the motor your D600 Pro2 HS was tuned with.
Signs it needs replacing
The printer reports a motor or position error on X, or the X axis stops mid print.
X travel becomes noisy, rough or hesitant at normal print speeds.
Layer shifts in X return even after the belt and pulley have been checked.
Compatible CreatBot 3D printer
The matching Y closed-loop motor is part 132002. CreatBot also lists X motor 132008 and Y motor 132009 for the D600 Pro2 HS, so send Rev1 your serial number or a photo of the existing motor and we will confirm which one your machine uses.
Installation tips
Power down and unplug the printer. A closed-loop motor carries encoder wiring as well as the motor wiring, so photograph every connection before you unplug anything and make sure each connector is fully seated on reassembly. Relieve belt tension, swap the motor, align the pulley with the belt and re-tension. Home the printer and run a fast test print to confirm the X axis holds position.
CreatBot D600 Pro2 HS X Closed-Loop Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 HS X Closed-Loop Motor — Questions
What is the difference between this and part 132008?
Part 132001 is CreatBot's closed-loop X motor for the D600 Pro2 HS. Part 132008 is another X motor listed for the same model. Rev1 can tell you which one matches your printer.
Will it fit the Y axis?
No. The Y axis uses closed-loop motor 132002.
Is this a genuine CreatBot part?
Yes, part 132001, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
