CreatBotD600 Pro2 HS Quick-Remove HotendGenuine CreatBot Replacement Part
Quick-Remove Hotend for D600 Pro2 HS 3D Printer

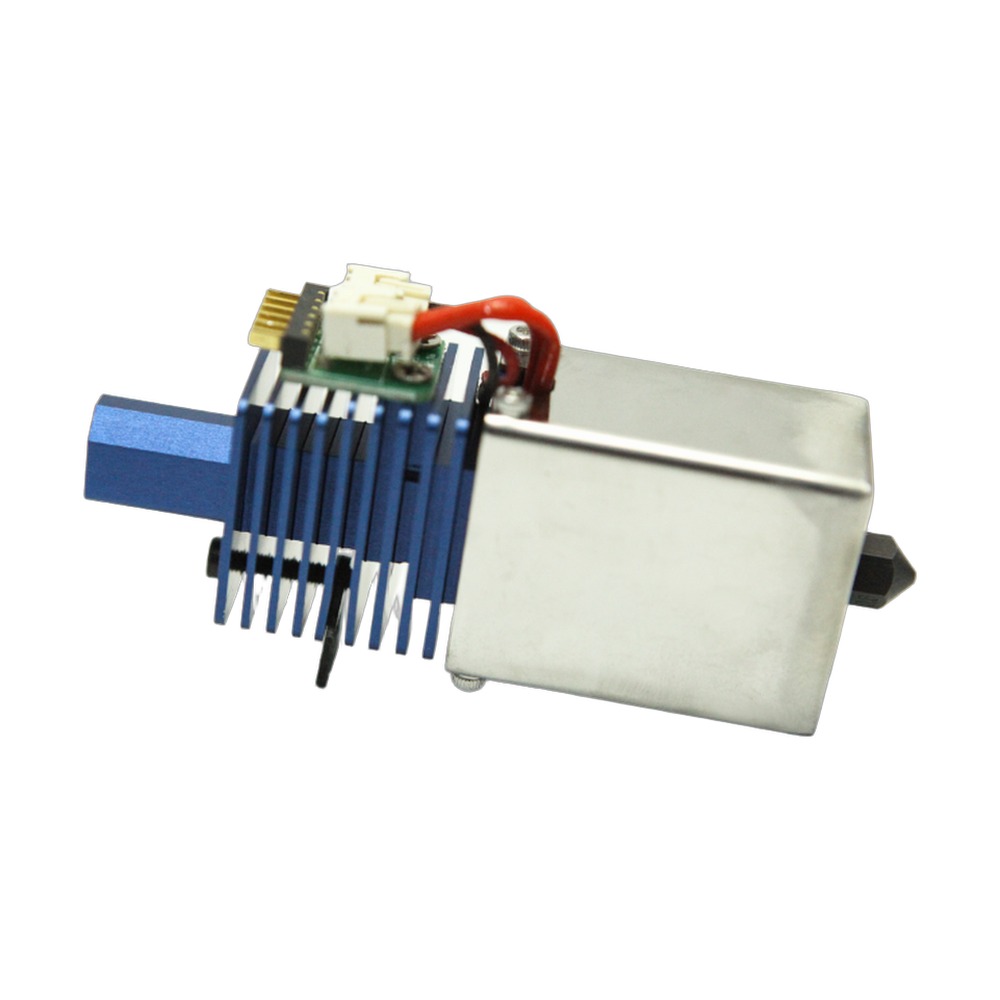

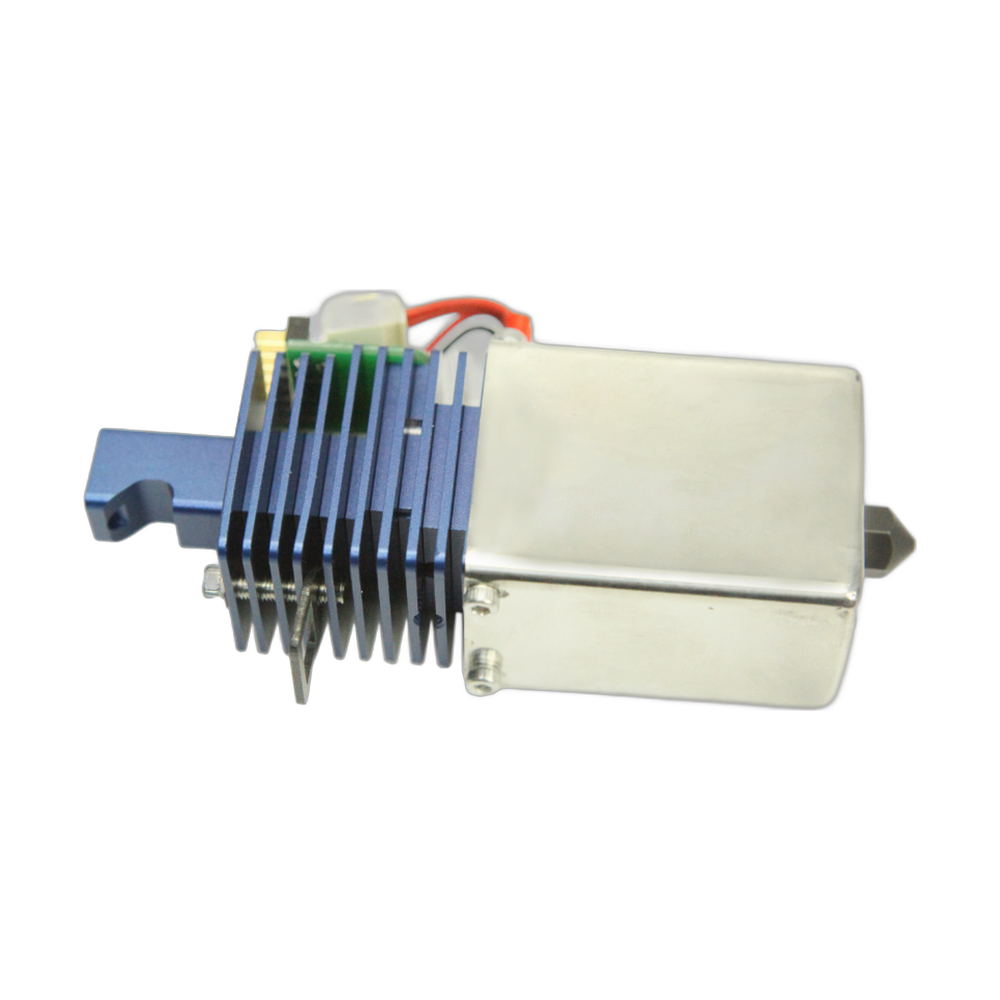

The CreatBot D600 Pro2 HS quick-remove hotend is a complete OEM hotend for the CreatBot D600 Pro2 HS high speed 3D printer, designed to come off and go back on quickly. With a spare unit ready, a clog or worn nozzle becomes a short swap instead of an on-machine teardown. It is fitted with a 0.6 mm nozzle and comes in two revisions: V1 (part 104003) and V2 (part 104006). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 HS Quick-Remove Hotend, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
What a spare hotend does for a high speed printer
The D600 Pro2 HS moves a lot of filament through its hotend, so the hotend is the part most likely to need attention during heavy use. A quick-remove spare lets you:
And restart the job, then clean the old hotend later.
For example one hotend for general filaments and one kept for abrasive filled materials.
Without taking the printer out of service for long.
Choose your version
| Version | Size | Part number | Fits |
|---|---|---|---|
| V1 | 0.6 mm | 104003 | D600 Pro2 HS |
| V2 | 0.6 mm | 104006 | D600 Pro2 HS |
Compatible CreatBot 3D printer
Both versions fit only the D600 Pro2 HS. The D1000 HS uses its own quick-remove hotend, V1 (104004) or V2 (104007), with a 0.8 mm nozzle. The newer D600 Pro3 HS uses the quick-remove hotends 104025 to 104029.
Choosing V1 or V2
V1 and V2 are two revisions of the same hotend for the same printer. Match the revision already installed on your D600 Pro2 HS so the mounting and connections line up without modification. If your printer still has the standard fixed D600 Pro2 HS hotend (104001) and you want to move to the quick-remove design, ask Rev1 which revision your machine accepts. Have the serial number ready.
Installation tips
Turn the printer off and allow the hotend to cool. Note the cable and filament path, release the installed hotend, and seat the replacement in the same position. Reconnect, heat to printing temperature, load filament and confirm the nozzle height with a first layer test. Keep your slicer profile set to a 0.6 mm nozzle.
CreatBot D600 Pro2 HS Quick-Remove Hotend Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 HS Quick-Remove Hotend — Questions
Which version do I need?
The revision that matches your installed hotend. Rev1 can confirm it from the printer serial number.
Can I use it on the D600 Pro3 HS?
No. The D600 Pro3 HS uses the quick-remove hotends 104025 to 104029.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
