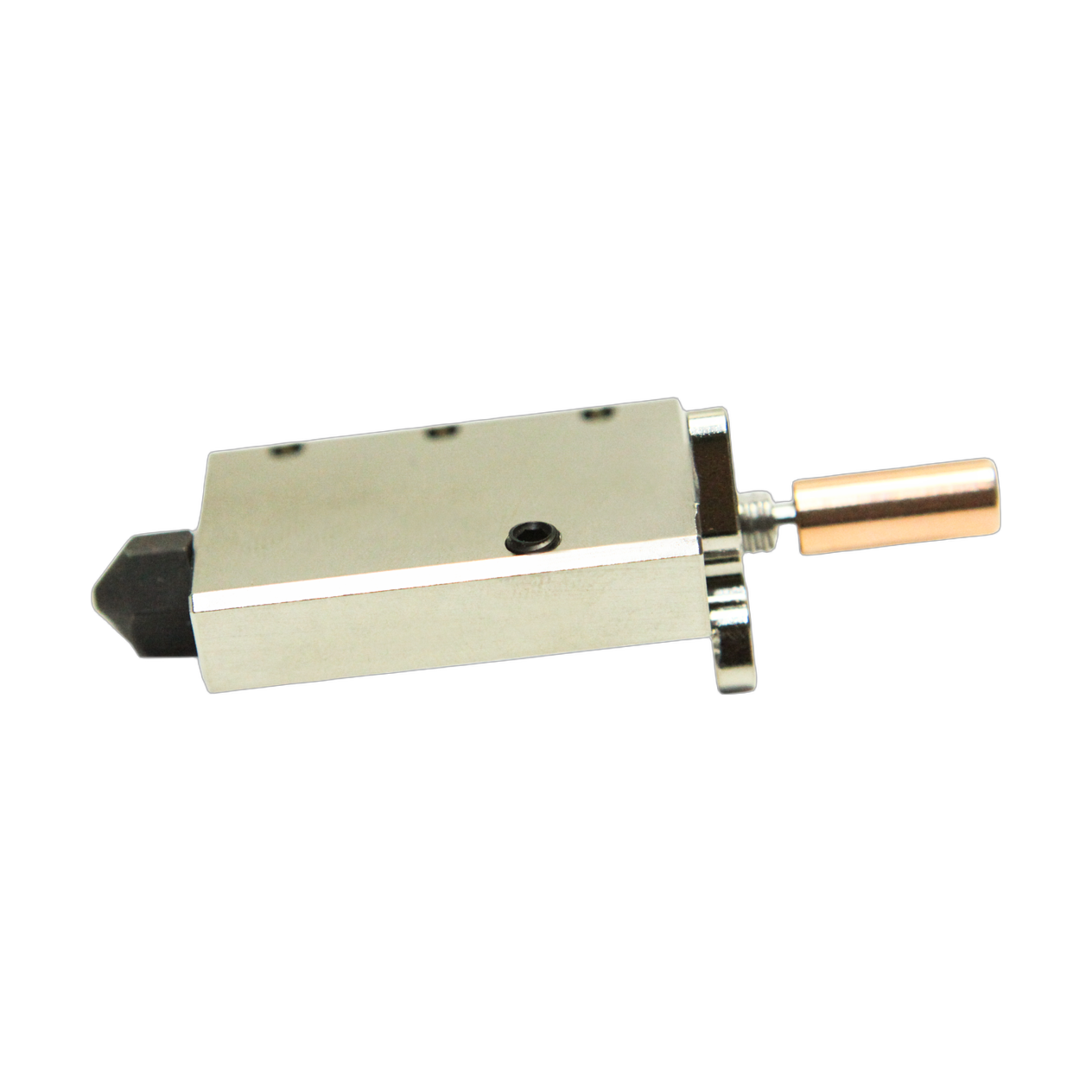

CreatBotD600 Pro2 HS Hotend 0.6 mmGenuine CreatBot Replacement Part
For the CreatBot D600 Pro2 HS
The CreatBot D600 Pro2 HS hotend (part 104001) is the OEM 0.6 mm hotend assembly for the CreatBot D600 Pro2 HS large format 3D printer. The hotend melts filament and pushes it through the nozzle, so its condition decides how consistently every layer goes down. When a hotend clogs repeatedly, leaks or stops heating properly, replacing the full assembly is often faster and more reliable than rebuilding it piece by piece. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 HS Hotend 0.6 mm, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your hotend needs replacing
Recurring clogs or under extrusion that cleaning and a new nozzle do not fix.
Filament leaking around the nozzle or heat block.
Temperature errors, slow heating or unstable readings on the hotend.
Damaged wiring, a worn nozzle thread or a crushed heat block.
Some of these symptoms can also come from the extruder, a cable or the board. Contact Rev1 support if you want help confirming the hotend is the cause.
Compatible CreatBot 3D printer
Related printers use different hotends. The D1000 HS uses part 104002 (0.8 mm). The standard D600 Pro2 without HS uses the V3 hotends (104012 to 104015). The D600 Pro3 HS uses the Pro-HS hotends, for example part 104022 (0.6 mm).
Standard or quick remove hotend?
CreatBot offers three 0.6 mm hotends for the D600 Pro2 HS: this standard hotend (104001) and the quick remove V1 (104003) and V2 (104006) versions. Order the same style your printer has installed now so the mounting and connections match. If you are unsure which one you have, send Rev1 a photo of the print head and your serial number and we will confirm it.
Installation tips
Power the printer off and unplug it, then let the hotend cool fully before you remove it. Photograph the heater and sensor connections before you disconnect them, and route the new wiring the same way so it cannot snag as the head moves. After installation, heat the hotend, check for leaks, then recalibrate nozzle height and bed leveling before your first print.
CreatBot D600 Pro2 HS Hotend 0.6 mm Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 HS Hotend 0.6 mm — Questions
Is this a genuine CreatBot hotend?
Yes. It is CreatBot part 104001, supplied through Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my D600 Pro3 HS?
No. The D600 Pro3 HS uses the Pro-HS hotends; the 0.6 mm version is part 104022, and the quick remove 0.6 mm version is part 104027.
Should I replace the whole hotend or just the nozzle?
If the problem is a worn or clogged nozzle, a nozzle swap may be enough. If heating, leaks or clogs persist, the full hotend is the more dependable fix.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
