CreatBotD600 Pro2 HS Extruder MotorGenuine CreatBot Replacement Part

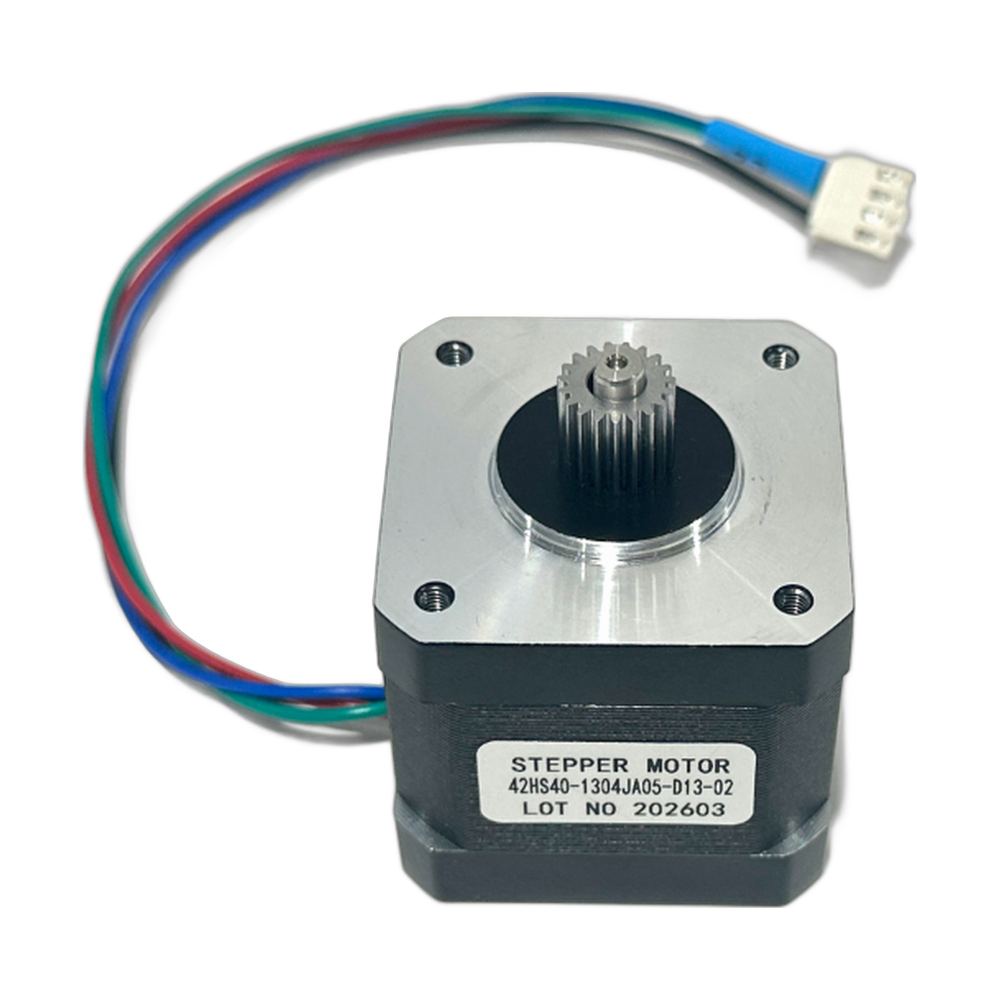

D600 Pro2 HS Extruder Motor, Left or Right
The CreatBot D600 Pro2 HS extruder motor is the OEM motor that drives filament through each extruder on the CreatBot D600 Pro2 HS. This dual extruder printer has one motor per extruder, so CreatBot supplies the motor in two versions: left and right. The extruder motor powers the drive that grips the filament and pushes it into the hotend. When a motor weakens, the extruder on that side starts to under-extrude, click or stop feeding altogether. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 HS Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace with a genuine motor
Same mounting, shaft and connection as the motor the D600 Pro2 HS shipped with.
A healthy motor keeps the filament feed steady at high print speeds.
Support material and two-material jobs need both sides feeding reliably.
Choose your side
| Side | Part number | Fits |
|---|---|---|
| Left | 131002 | D600 Pro2 HS |
| Right | 131003 | D600 Pro2 HS |
Compatible CreatBot 3D printer
Both versions fit the D600 Pro2 HS only. The D600 Pro2 HS Z motor is part 131001. The standard D600 Pro2 uses different extruder motors, 131024 (E1) and 131025 (E2).
Which side do you need?
Replace the motor on the extruder that is failing. Left and right are as you face the front of the printer. Before ordering, check that the problem really is the motor: clear the nozzle, inspect the drive gears, and then try swapping the left and right motor cables at the motors. If the fault moves to the other extruder, the motor is bad. If it stays put, the cable, connector or controller output is more likely. If you print long dual material jobs, a spare of each side keeps downtime short.
Installation tips
Power the printer off, let the hotends cool and unload filament from the side you are working on. Photograph the extruder assembly before you take it apart. Transfer the drive gear if needed, aligned with the filament path, reconnect the motor cable to the same side, then extrude a test length and run a short print.
CreatBot D600 Pro2 HS Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 HS Extruder Motor — Questions
Which side do I need?
The side whose extruder has the fault. Left is part 131002 and right is part 131003.
Do these fit the D1000 HS?
No. The D1000 HS uses extruder motors 131005 and 131006.
Are these genuine CreatBot motors?
Yes. Both are genuine CreatBot parts, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
