CreatBotD600 Pro2 HS Auto-Rising ServoGenuine CreatBot Replacement Part
For the CreatBot D600 Pro2 HS

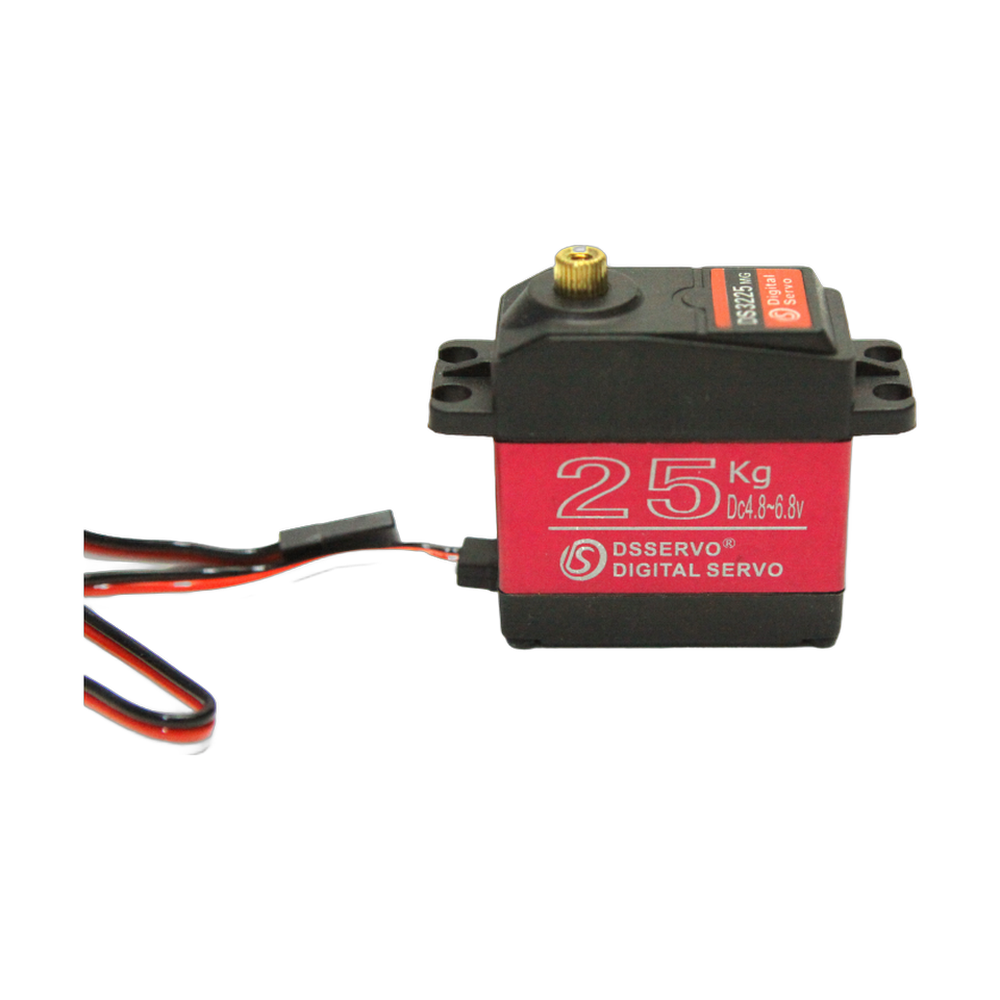

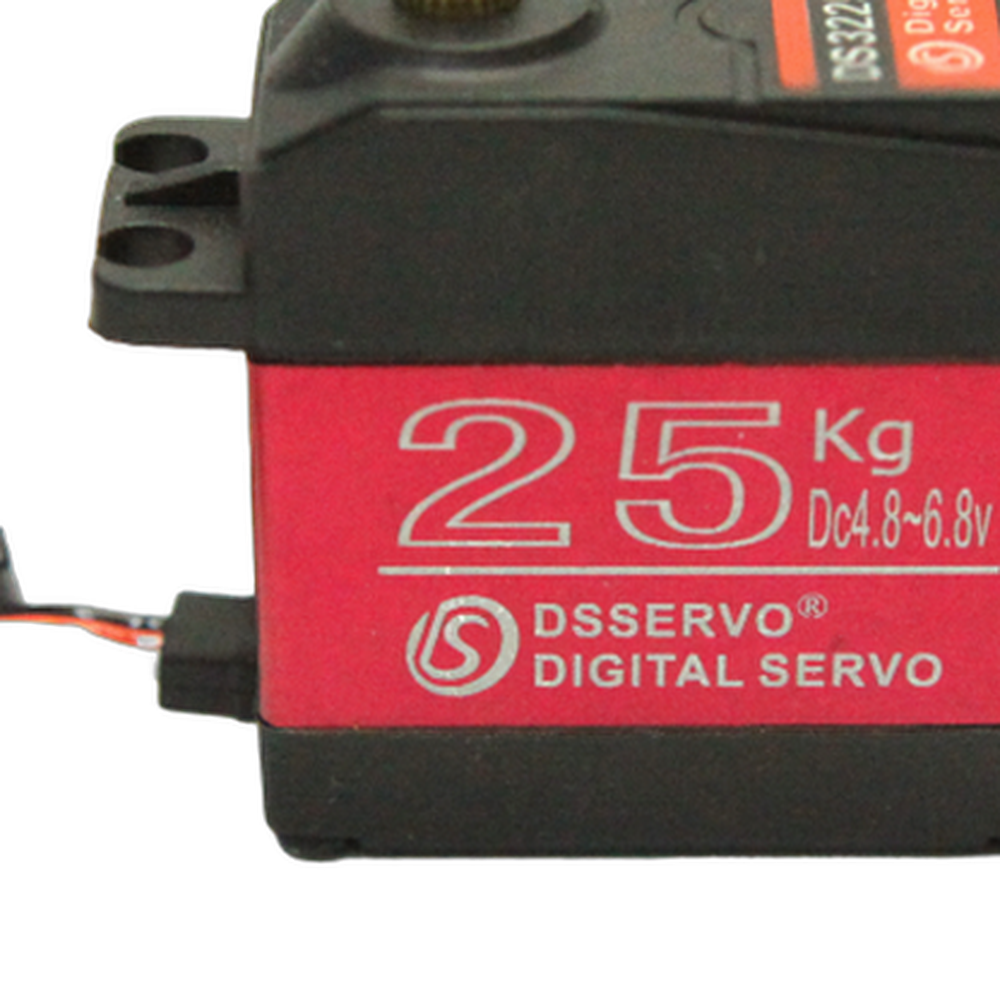

The CreatBot D600 Pro2 HS servo for auto-rising (part 133001) is the OEM servo that drives the nozzle auto-rising system on the CreatBot D600 Pro2 HS. On this dual extruder printer, the auto-rising system raises whichever nozzle is not printing so it stays clear of the part. When the servo fails, the idle nozzle can stay down and rub across the surface, and at HS print speeds that contact is more likely to leave marks or dislodge a part. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 HS Auto-Rising Servo, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the auto-rising servo needs replacing
The inactive nozzle does not lift, or lifts and then sags.
Dual extrusion prints show drag marks, ooze trails or blobs from the idle nozzle.
The servo makes a buzzing or clicking noise, or moves in small jerks.
Switching between nozzles leaves the active nozzle at an inconsistent height.
Compatible CreatBot 3D printer
The D600 Pro2 HS uses two different servos. This is the auto-rising servo; the bed leveling servo is part 133002. CreatBot also lists the general auto-rising servo, part 133013, for the D600 Pro2 HS. Rev1 can confirm which auto-rising servo matches your machine from a photo or serial number.
Installation tips
Turn the printer off and allow the hotends to cool fully. Take a photo of the servo, its linkage and the connector before you start. Swap the servo in the same orientation, reconnect it and route the cable away from the heater blocks and moving belts. Power on, confirm that the idle nozzle rises all the way and that both nozzles return to the right height, then run a dual extrusion test print.
CreatBot D600 Pro2 HS Auto-Rising Servo Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 HS Auto-Rising Servo — Questions
Is this the bed leveling servo?
No. The D600 Pro2 HS bed leveling servo is part 133002.
Does it fit the standard D600 Pro2?
It is listed for the D600 Pro2 HS. For the D600 Pro2, CreatBot lists auto-rising servo 133010.
Is this a genuine CreatBot part?
Yes, part 133001, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
