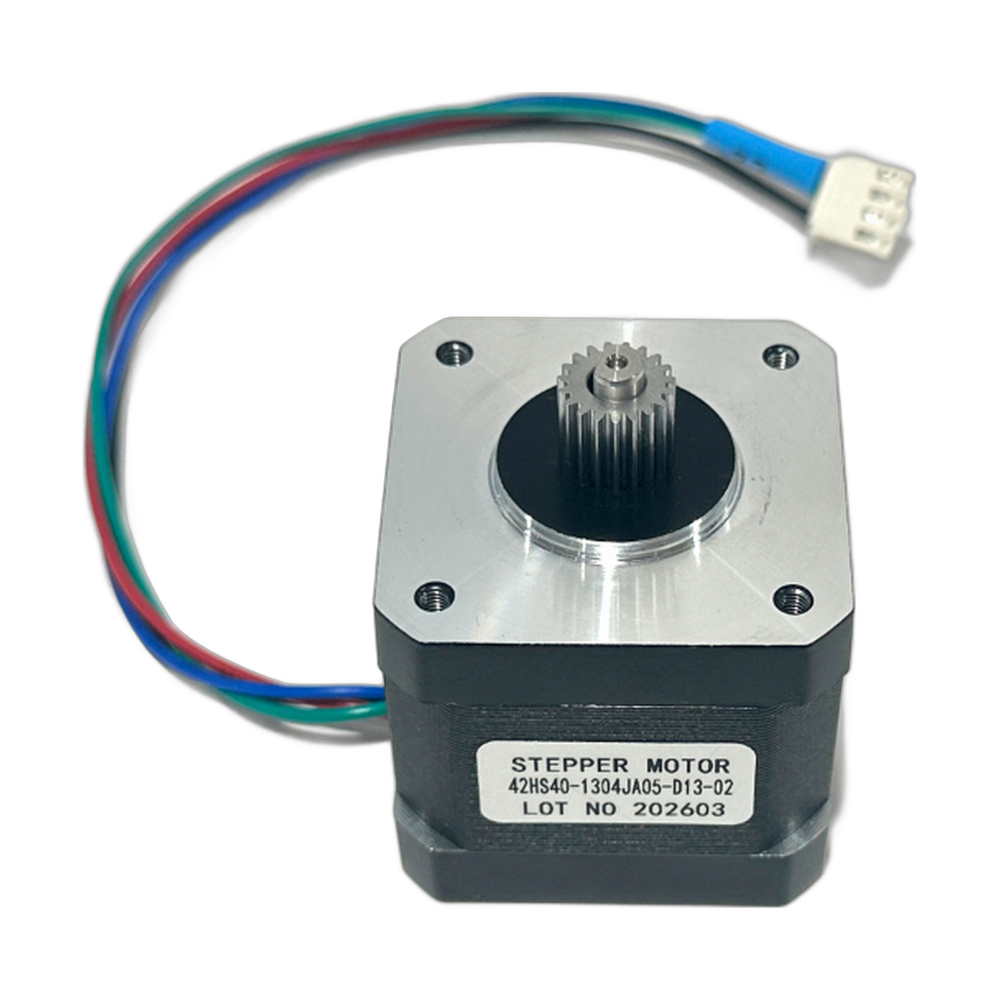

CreatBotD600 Pro2 E2 Extruder MotorGenuine CreatBot Replacement Part
For the CreatBot D600 Pro2
The CreatBot D600 Pro2 E2 motor (part 131025) is the OEM extruder motor for the second extruder, E2, on the CreatBot D600 Pro2. Owners often use E2 for soluble or breakaway support, or for a second color or material. That means a failing E2 motor tends to show up on the most complex prints first. This genuine motor restores reliable filament feed to the E2 extruder. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 E2 Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why choose the genuine E2 motor
Same mounting and connector as the original D600 Pro2 motor.
Support that stops extruding partway through a job leaves overhangs with nothing underneath.
A healthy E2 keeps both extruders feeding consistently in dual material jobs.
Signs the E2 motor may have failed
E2 does not extrude, or extrudes weakly, while E1 works normally.
Humming without rotation, stuttering, or a motor that runs hot.
Missing or thin support structures with a clear nozzle and clean drive gear.
Visible damage to the motor or connector.
Test before you buy: swap the E1 and E2 motor cables at the motors. If the fault moves with the motor, the motor is the cause.
Compatible CreatBot 3D printer
Related D600 Pro2 motors: E1 is part 131024 and Z is part 131026. The original D600 Pro uses E2 motor 131022.
Installation tips
Power the printer off, allow the E2 hotend to cool and unload its filament. Photograph the extruder before you take it apart. Fit the drive gear to the new motor if needed, aligned with the filament path, then reassemble and reconnect. Extrude a test length on E2 and run a short print with support to confirm.
CreatBot D600 Pro2 E2 Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 E2 Extruder Motor — Questions
Is the E2 motor the same as the E1 motor?
CreatBot lists them separately: E1 is 131024 and E2 is 131025. Order the one for the extruder that failed.
Will this fit the D600 Pro?
No. The D600 Pro uses its own E2 motor, part 131022.
Is this a genuine CreatBot motor?
Yes. It is CreatBot part 131025, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
