CreatBotD600 Pro2 Auto-Rising ServoGenuine CreatBot Replacement Part
For the CreatBot D600 Pro2

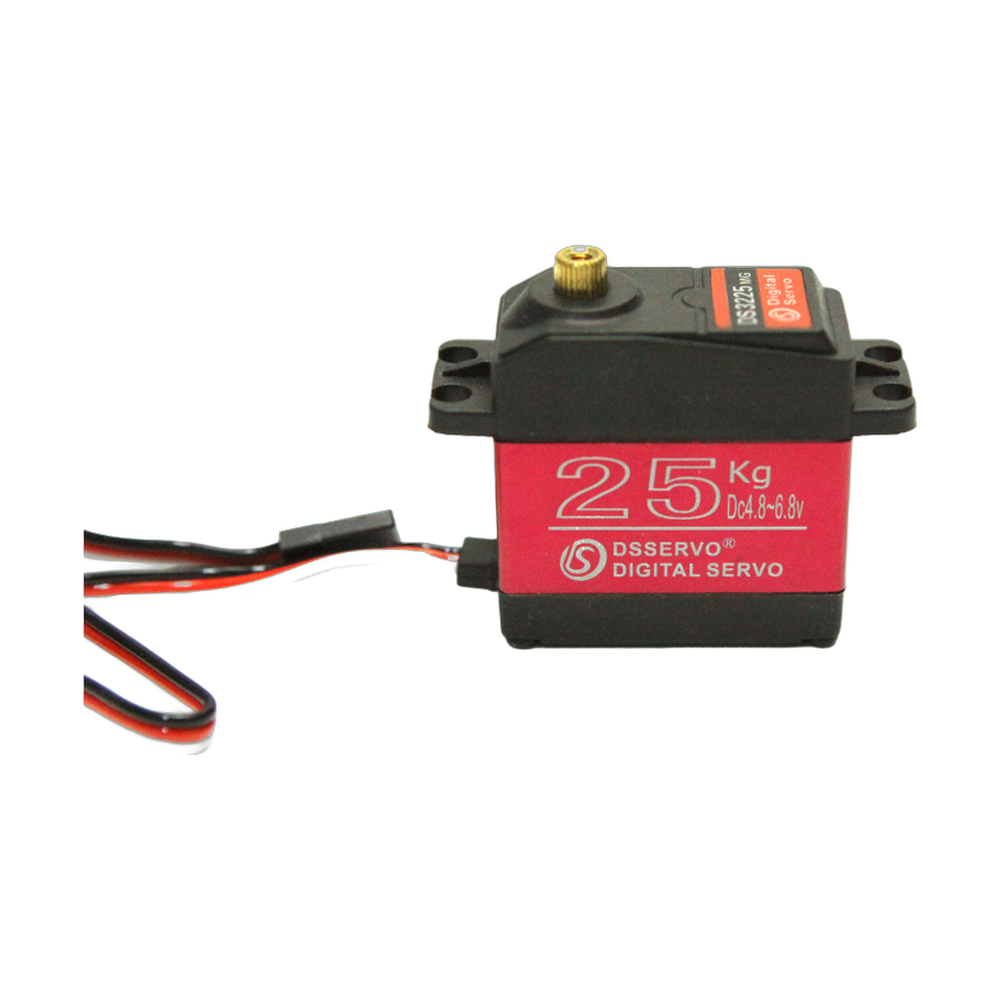

The CreatBot D600 Pro2 servo for auto-rising (part 133010) is the OEM servo for the nozzle auto-rising system on the CreatBot D600 Pro2. The D600 Pro2 prints with two nozzles, and the auto-rising system raises the one that is idle so it never touches the part. A worn servo lets the idle nozzle drop back toward the print, which shows up as scuffs, ooze strings and, in the worst case, a part knocked off the plate. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 Auto-Rising Servo, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
When the auto-rising servo matters most
With support material, where both nozzles work on every layer.
Where a dragging nozzle would smear one color into the other.
That a stray nozzle could catch and break loose.
Signs the servo needs replacing
The idle nozzle stays down, or does not lift to its usual height.
The servo jitters, buzzes or does not respond to tool changes.
Scrape marks appear on dual extrusion prints but not on single nozzle prints.
Compatible CreatBot 3D printer
CreatBot also lists the general auto-rising servo, part 133013, for the D600 Pro2. Send Rev1 a photo of the fitted servo and we will confirm which part matches. The D600 Pro2 bed leveling servo is a separate part, 133006, and the D600 Pro2 HS uses auto-rising servo 133001.
Installation tips
Turn the printer off and let the hotends cool. Photograph the servo mounting, linkage and connector, then remove the old servo. Install the new one in the same orientation and reconnect it, keeping the cable away from hot parts. Check that the idle nozzle lifts fully and both nozzles print at the correct height, then run a short dual extrusion test.
CreatBot D600 Pro2 Auto-Rising Servo Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 Auto-Rising Servo — Questions
Does this fit the D600 Pro2 HS?
No. The D600 Pro2 HS uses auto-rising servo 133001.
Is it the same as the bed leveling servo?
No. The D600 Pro2 bed leveling servo is part 133006.
Is this a genuine CreatBot part?
Yes, part 133010, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
