CreatBotD600 Pro Z MotorGenuine CreatBot Replacement Part

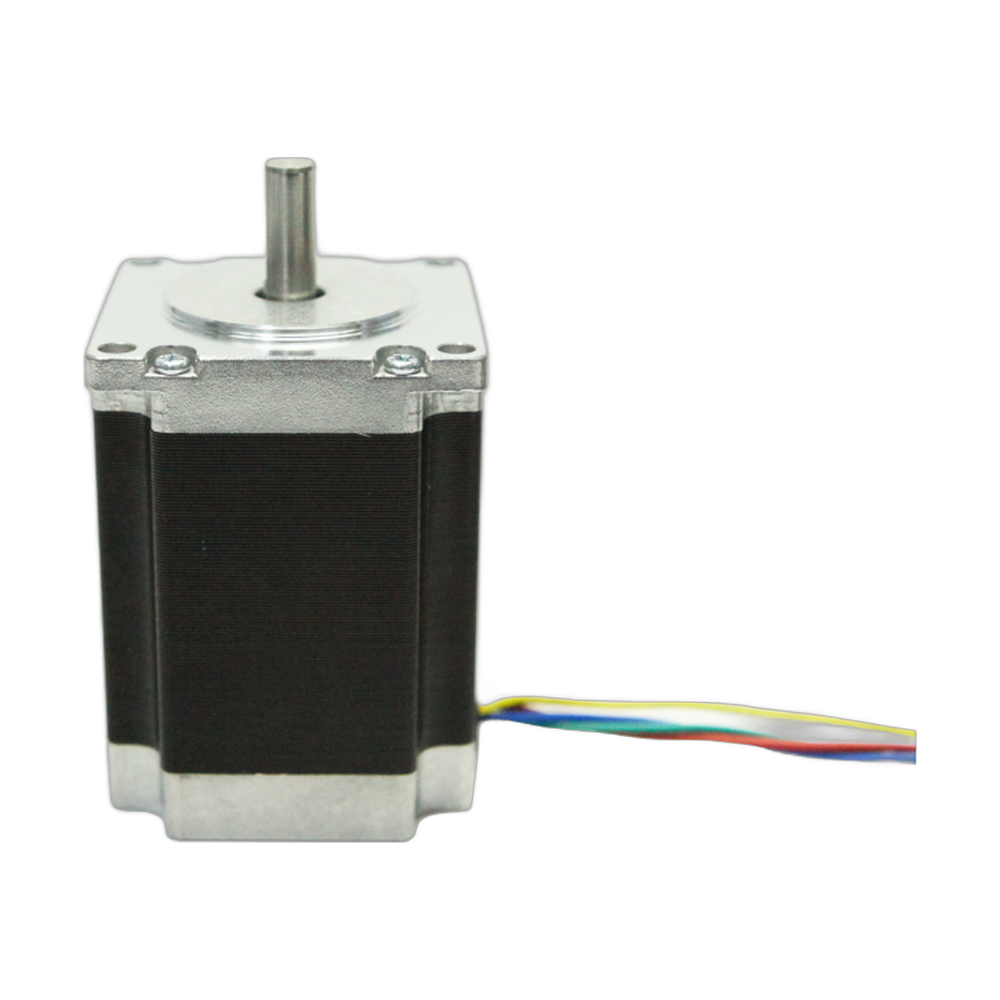

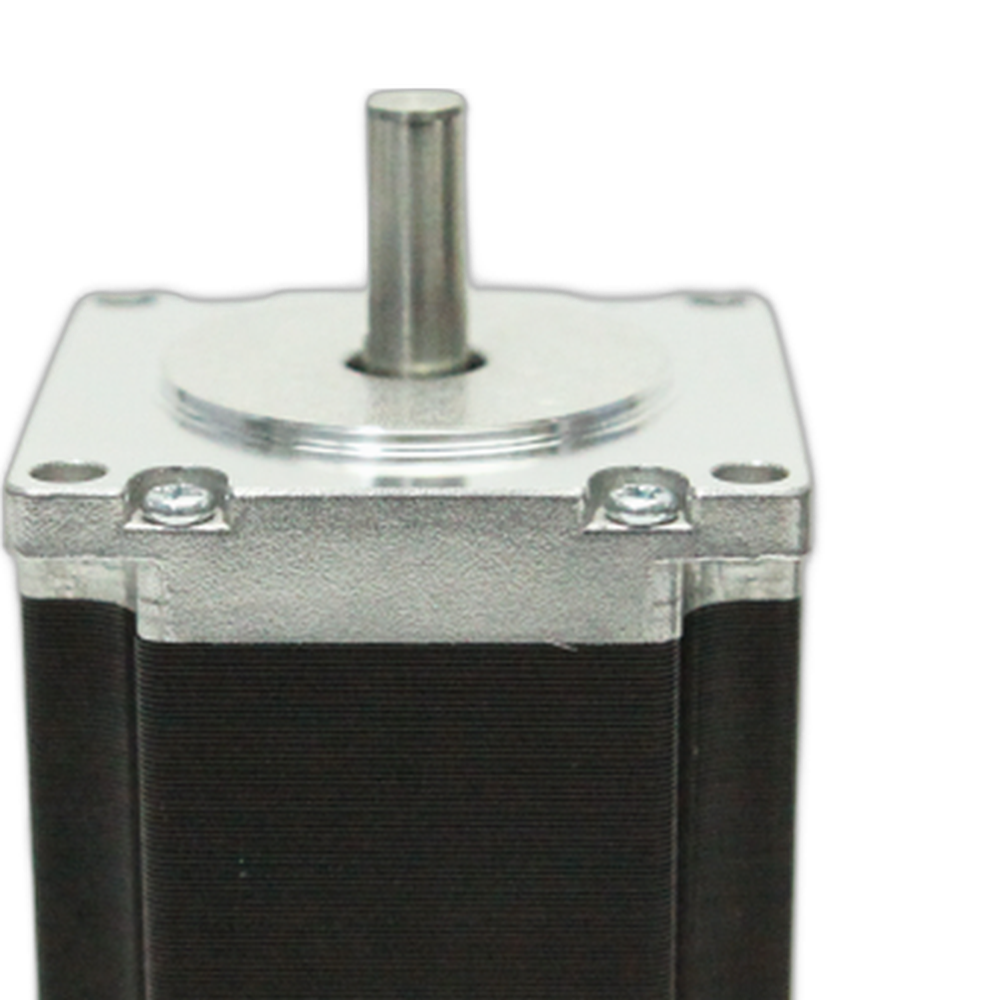

D600 Pro Z Motor (Z-Axis Drive Motor)
The CreatBot D600 Pro Z motor (part 131023) is the original Z-axis drive motor for the CreatBot D600 Pro. Every time a layer finishes, the Z motor moves the axis by one layer height. If it misses steps, binds or stalls, the result is visible straight away as banding, layers that are too thin or too thick, or a print that separates partway up. Replacing a worn Z motor with the genuine part brings the axis back to its factory behavior. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor needs replacing
The Z axis will not home, or stops partway when you jog it.
Regular banding or horizontal lines that were not there before.
Rough, loud or grinding movement from the Z drive.
First layer height changes from print to print even after leveling.
Dirty or dry Z guides, a loose coupling or a cable fault can produce the same results. Check those first, or contact Rev1 support for help.
Compatible CreatBot 3D printer
This motor is specific to the D600 Pro. The D600 Pro2 uses Z motor 131026 and the D600 Pro2 HS uses 131001. The D600 Pro extruder motors are parts 131021 (E1) and 131022 (E2).
Installation tips
Switch the printer off and unplug it before you open any covers. Block or support the Z assembly so it cannot move once the motor is released. Label the connector, note the cable route, and fit the new motor exactly where the old one sat. Move the axis by hand or with a short jog to confirm smooth travel, then home, re-level and print a calibration part to check layer consistency.
CreatBot D600 Pro Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro Z Motor — Questions
My D600 Pro shows layer shifts in Z. Is it always the motor?
Not always. Mechanical binding and cable faults are common too. Rev1 support can help you narrow it down.
Is this the same Z motor as the D600 Pro2?
No. The D600 Pro2 uses part 131026.
Is this genuine?
Yes. It is CreatBot part 131023, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
