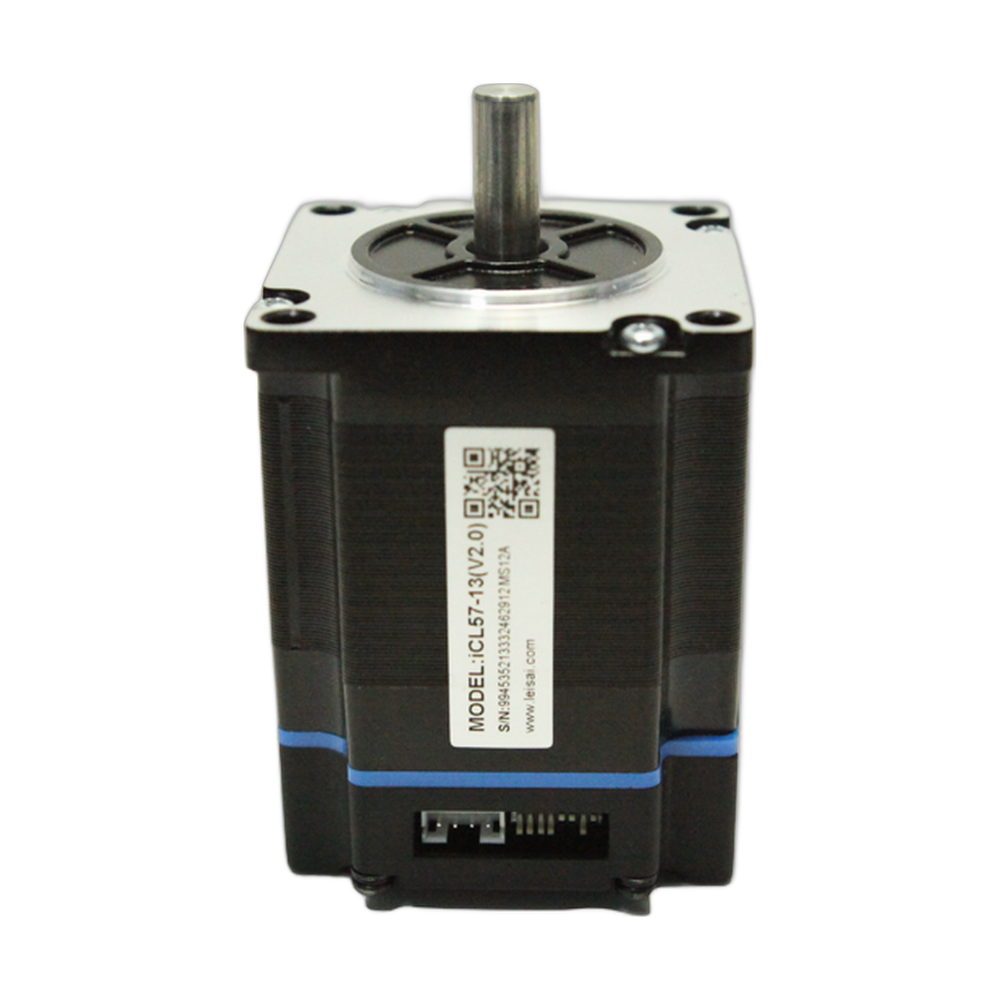

CreatBotD600 Pro X Axis MotorGenuine CreatBot Replacement Part
For the CreatBot D600 Pro
The CreatBot D600 Pro X motor (part 132006) is the OEM motor that drives the X axis on the CreatBot D600 Pro 3D printer. It moves the print head across the gantry, so it controls the accuracy and smoothness of every move in the X direction. The D600 Pro is often kept busy with long, large prints, and an X motor that is wearing out can turn a full day of printing into scrap with one missed step. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro X Axis Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace with a genuine CreatBot motor
Same mounting, shaft and connector as the motor your D600 Pro shipped with.
The printer's motion settings were set up for this motor, so print quality comes back without guesswork.
Supplied by Rev1 Technologies, an authorized CreatBot dealer.
Signs the X motor needs replacing
Layers shift sideways in X even with a properly tensioned belt.
Rough, noisy or jerky print head movement.
The X axis fails to home or stops partway through a job.
A loose pulley, a worn belt or a cable fault can cause similar problems. If you are not sure, contact Rev1 support and we will help you find the cause.
Compatible CreatBot 3D printer
The D600 Pro Y axis uses part 132007. Later D600 models use different motors, for example the D600 Pro2 HS X motors 132001 and 132008.
Installation tips
Unplug the printer and photograph the motor wiring before you begin. Release the X belt tension, remove the motor and transfer the pulley if it is not already fitted, setting it at the same height on the shaft. Fit the new motor, re-tension the belt and run the homing routine, then print a test part to confirm the X axis is smooth and accurate.
CreatBot D600 Pro X Axis Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro X Axis Motor — Questions
Does this motor fit the D600 Pro2?
It is listed for the D600 Pro only. Contact Rev1 for the correct X motor for a D600 Pro2 or D600 Pro2 HS.
Is the Y motor the same part?
No. The D600 Pro Y motor is part 132007.
Can Rev1 replace the motor for me?
Yes. Rev1 is a certified CreatBot service provider and can fit and test it.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
