CreatBotD600 Pro PEI FilmGenuine CreatBot Replacement Part
D600 Pro PEI Film Build Surface

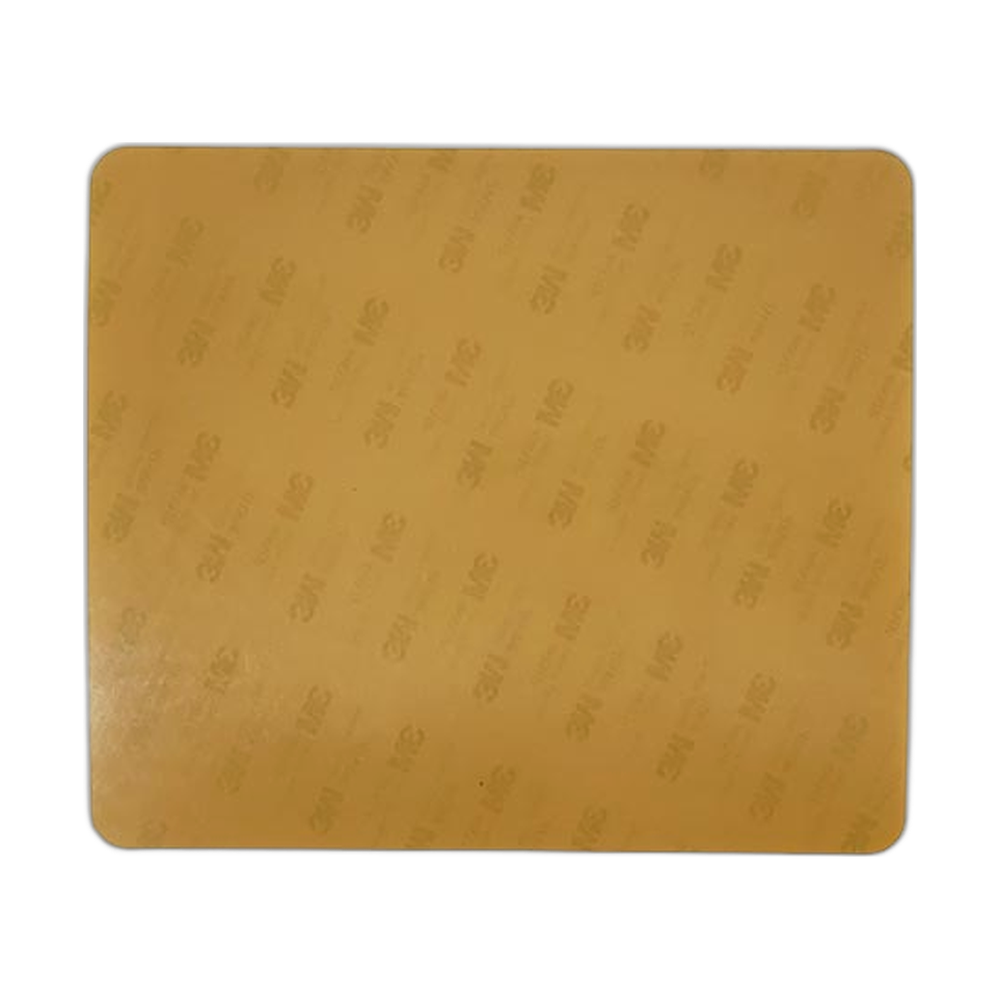

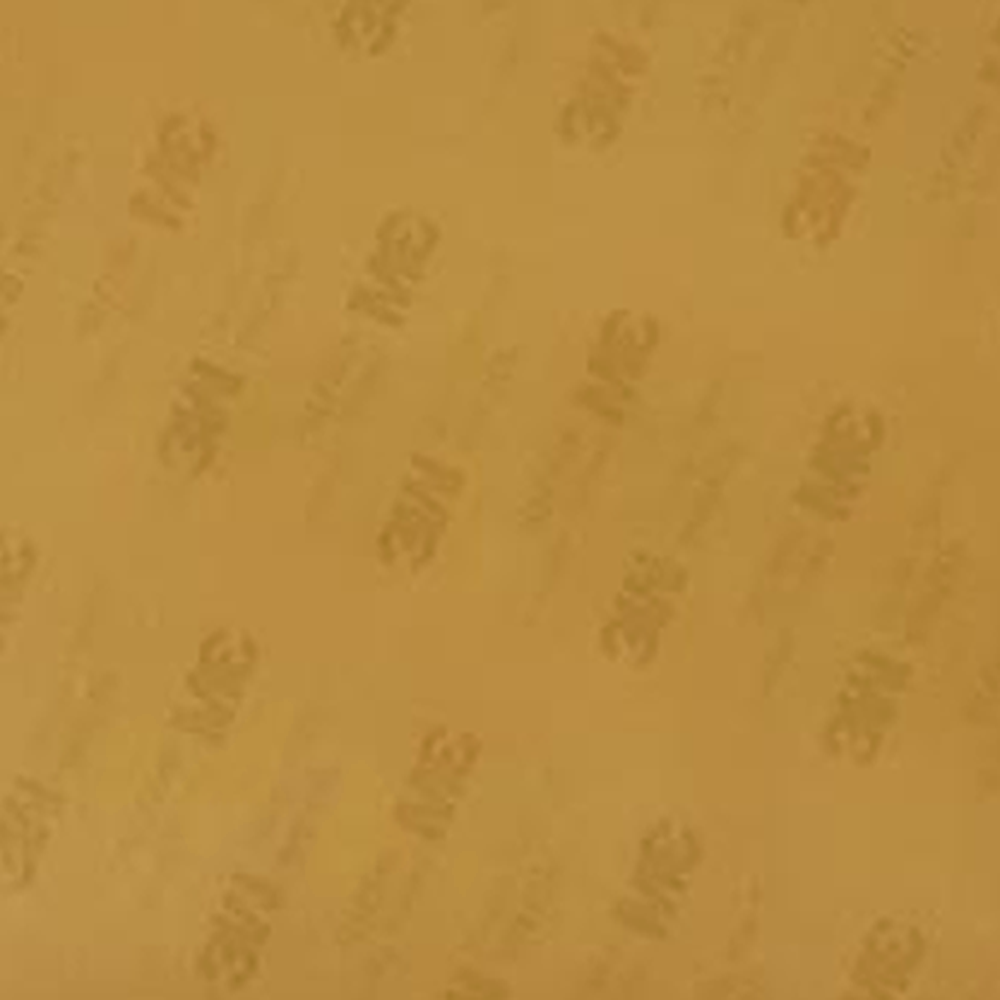

The CreatBot D600 Pro PEI film (part 107011) is the OEM PEI print surface cut to fit the build plate of the CreatBot D600 Pro 3D printer. PEI holds the first layer firmly while the bed is at printing temperature, then lets go of most parts as the plate cools. It also leaves a smooth, even finish on the underside of prints, which is useful for parts where the bottom face is visible or mates with another part. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro PEI Film, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why renew the PEI film
Worn PEI loses grip, and large D600 Pro prints start to lift at the corners.
Scratches, gouges and nozzle marks transfer to the bottom of every part.
That stop the film lying flat.
Sized for the D600 Pro plate, so there is no trimming.
Compatible CreatBot 3D printer
Other PEI films in the range: D600 Pro2 HS and D600 Pro2 (107001), D1000 HS and D1000 (107003), F430 (107007) and F1000 (107022).
Looking after PEI
Clean the film with isopropyl alcohol and avoid touching the print area, since skin oils reduce adhesion. For materials that stick very strongly to PEI, a release agent or glue stick layer can make removal easier and protect the surface. Wait for the bed to cool before removing parts, and use a plastic scraper rather than a blade. If you prefer a textured surface, the D600 Pro BuildTak (107012) is the alternative.
Installation tips
With the bed cool, peel the old film away slowly and clean all adhesive residue off the plate. Dry the plate completely. Line up one edge of the new film, then press it down progressively toward the opposite edge with a squeegee or plastic card, pushing air out as you go. Re-level and set the Z offset before printing.
CreatBot D600 Pro PEI Film Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro PEI Film — Questions
Will this fit the D600 Pro2?
No. The D600 Pro2 and D600 Pro2 HS use PEI film part 107001.
Can I print without glue on PEI?
Yes, for most materials. Some strongly bonding materials release more easily with a thin release layer.
Is this a genuine CreatBot part?
Yes, CreatBot part 107011, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
