CreatBotD600 Pro / F1000 Extruder PCBGenuine CreatBot Replacement Part
Extruder PCB for D600 Pro and F1000 3D Printers

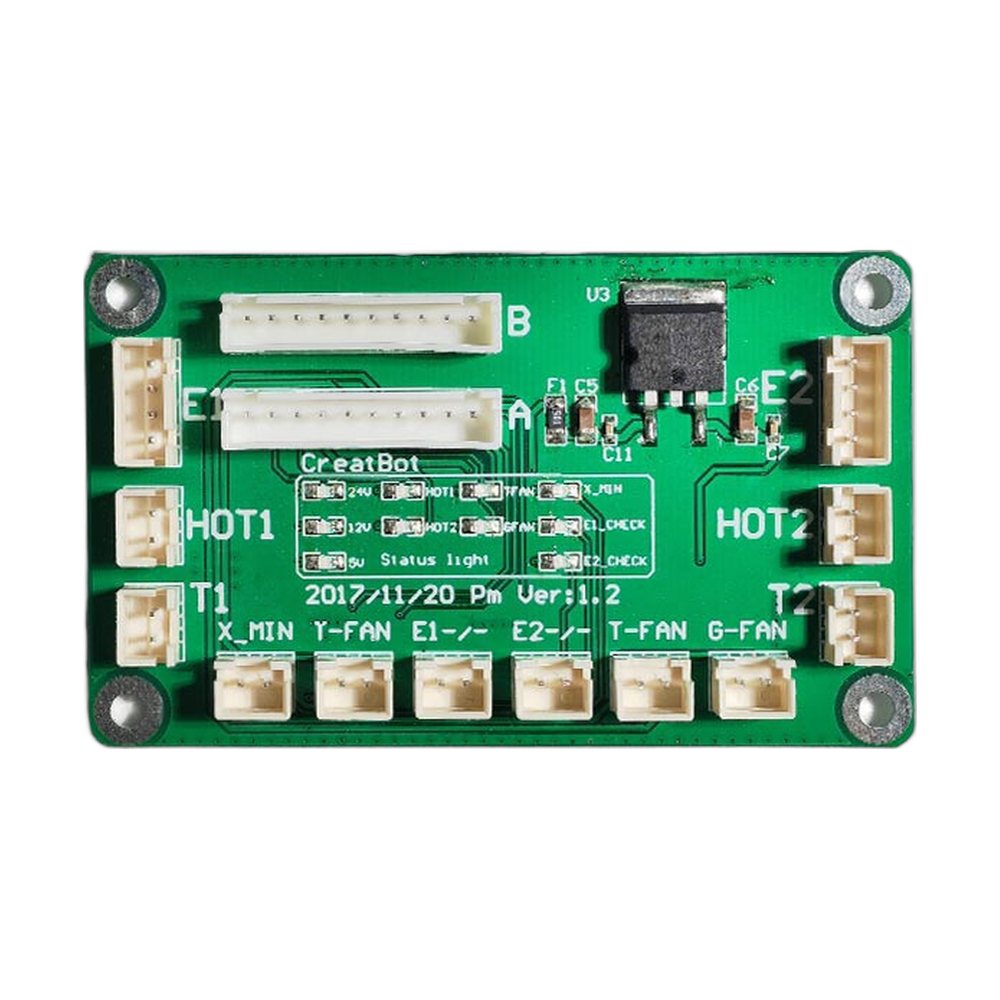

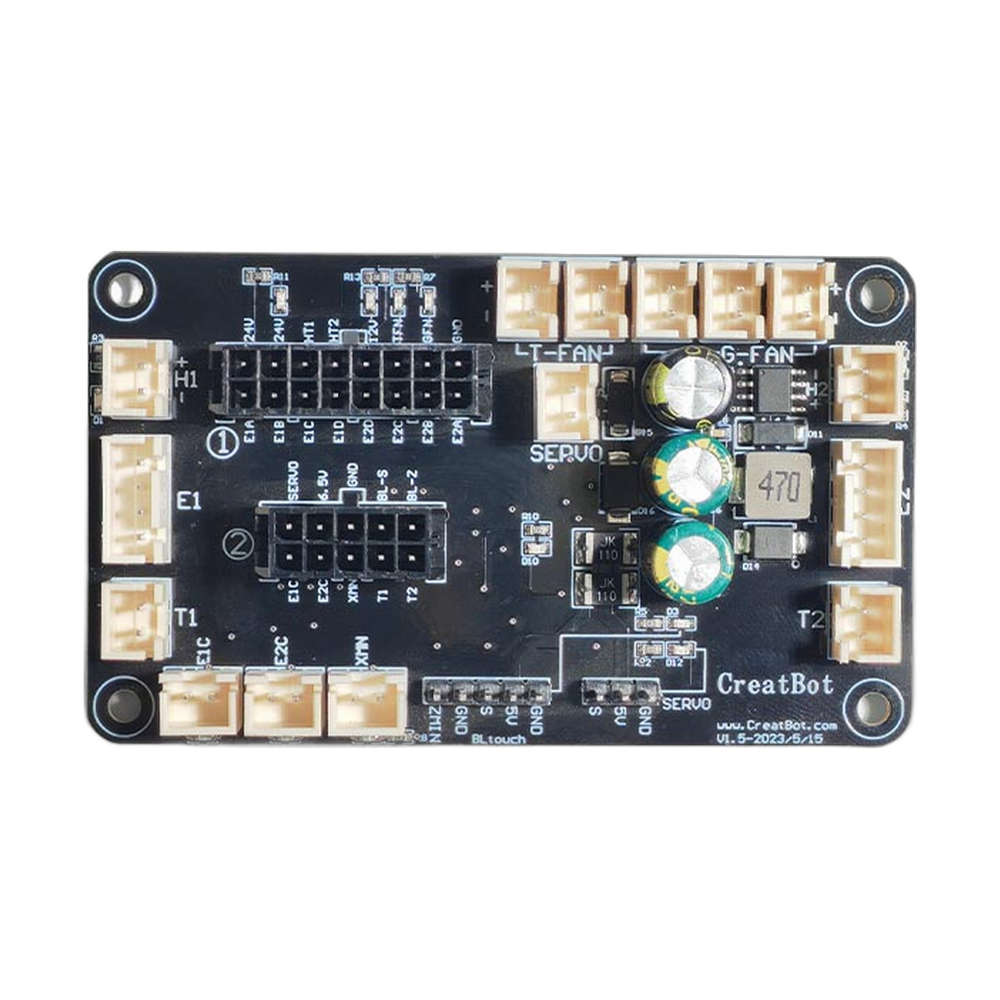

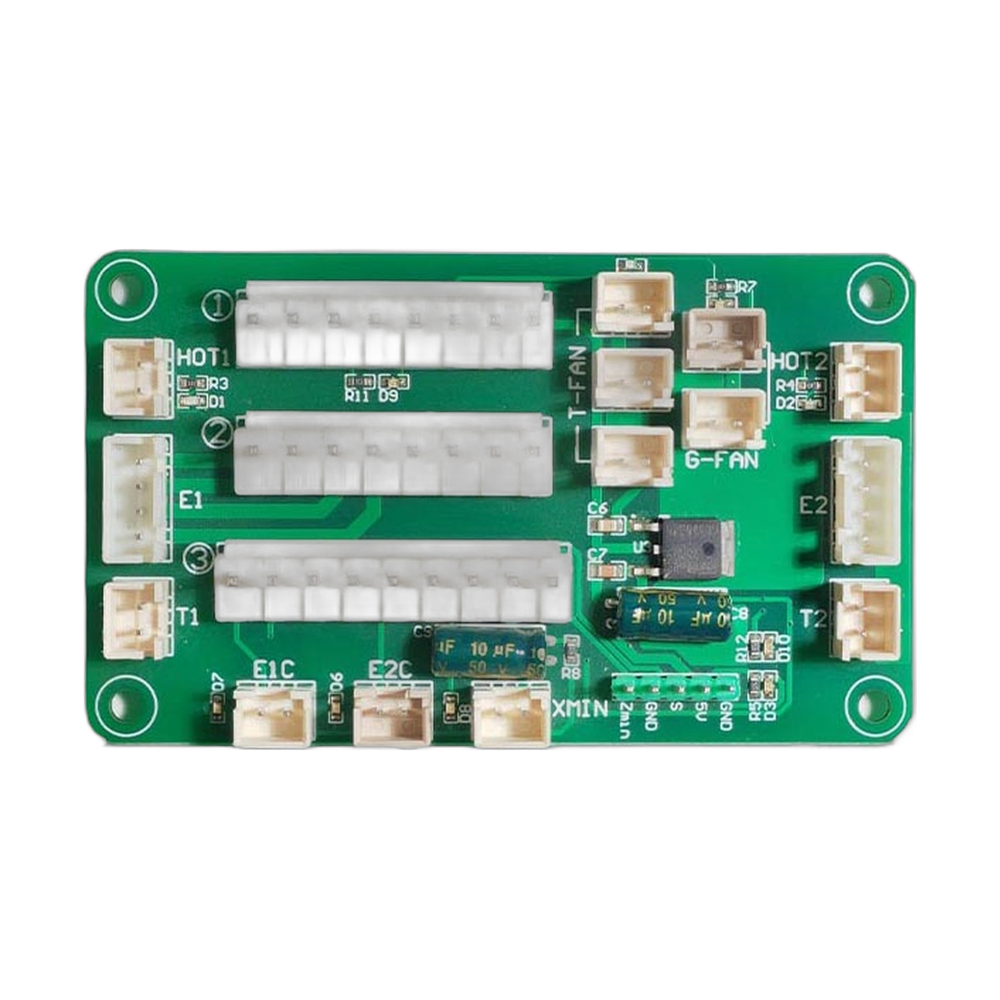

The CreatBot extruder PCB is the circuit board on the print head of the CreatBot D600 Pro and F1000. The hotend heaters, temperature sensors, fans and extruder wiring connect here and run back to the motherboard, so a damaged board can take a working hotend offline. This product comes in three board versions, V1, V2 and V3, so you can match the board already in your printer. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro / F1000 Extruder PCB, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder PCB needs replacing
Heating, temperature reading or fan errors on the print head that follow the board, not the cable.
Intermittent faults that come and go as the print head moves.
A burnt component, a damaged connector or a cracked board.
Choose your version and printer
| Version | Printer option | Part number | Fits |
|---|---|---|---|
| V1 | D600 Pro | 112009 | D600 Pro, F1000 |
| V2 | D600 Pro | 112010 | D600 Pro, F1000 |
| V3 | D600 Pro | 112011 | D600 Pro only |
| V1 | F1000 | 112013 | D600 Pro, F1000 |
| V2 | F1000 | 112014 | D600 Pro, F1000 |
Compatible CreatBot 3D printers
Fit differs by version: V1 and V2 fit both the D600 Pro and F1000, while V3 fits the D600 Pro only.
Which version do I need?
Order the version that matches the board in your printer. The version is normally printed on the board, so open the print head cover and check before you order. Board versions can differ in layout and connectors, so a different version is not a guaranteed drop-in swap even when it is listed for your printer. Within a version, the printer option does not matter: the D600 Pro and F1000 numbers are the same board. If you cannot find the marking, send Rev1 support a photo of your board.
Installation tips
Power the printer off, unplug it and let the hotend cool. Photograph every connector on the old board, use anti-static precautions and move the cables across one at a time. Check that each plug is fully seated and the wiring is clear of the moving parts, then heat the hotend and run the fans before your first print.
CreatBot D600 Pro / F1000 Extruder PCB Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro / F1000 Extruder PCB — Questions
Which version do I need?
The one printed on your current board. V1 and V2 fit the D600 Pro and F1000, and V3 fits the D600 Pro only.
Are 112009 and 112013 the same board?
Yes. Both are the V1 board, listed once for each printer. The same applies to 112010 and 112014 for V2.
Will it fit my D600 Pro2?
No. The D600 Pro2 uses the V1.2 extruder board, part 112012 or 112018.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
