CreatBotD600 Pro Extruder UnitGenuine CreatBot Replacement Part

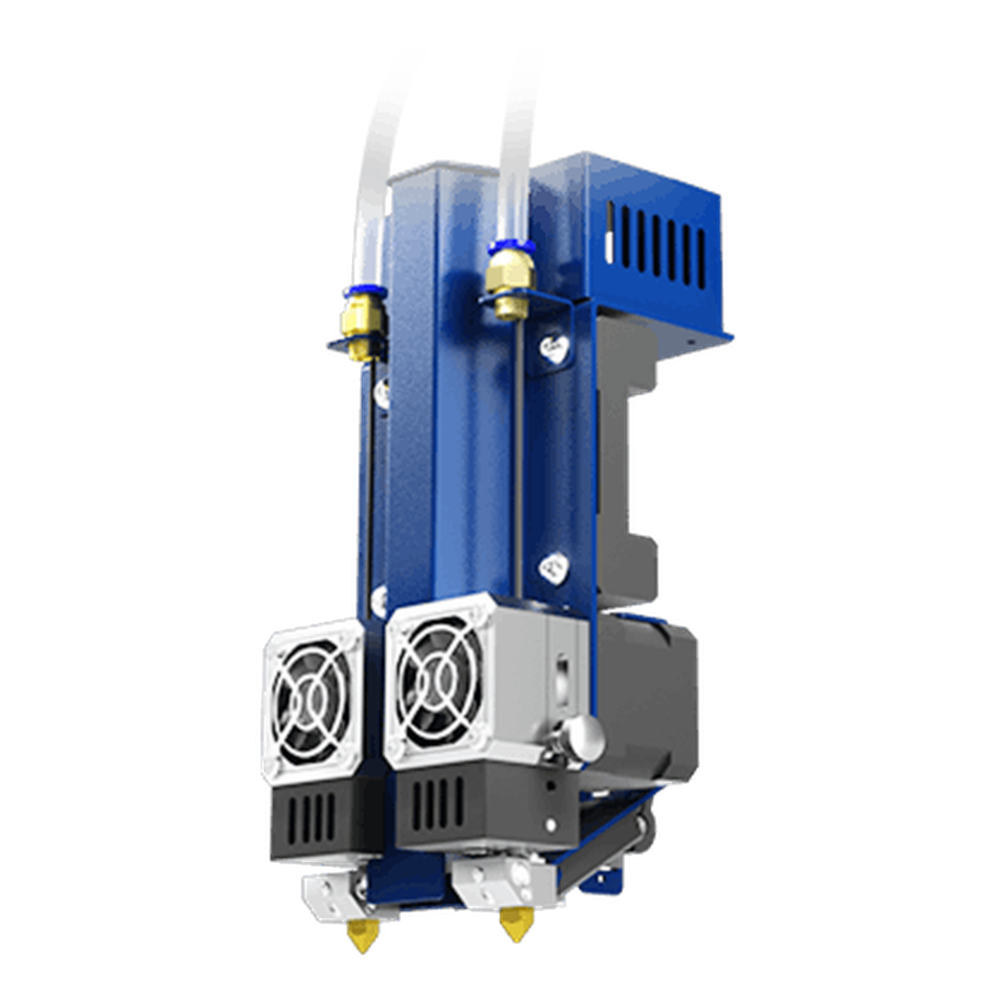

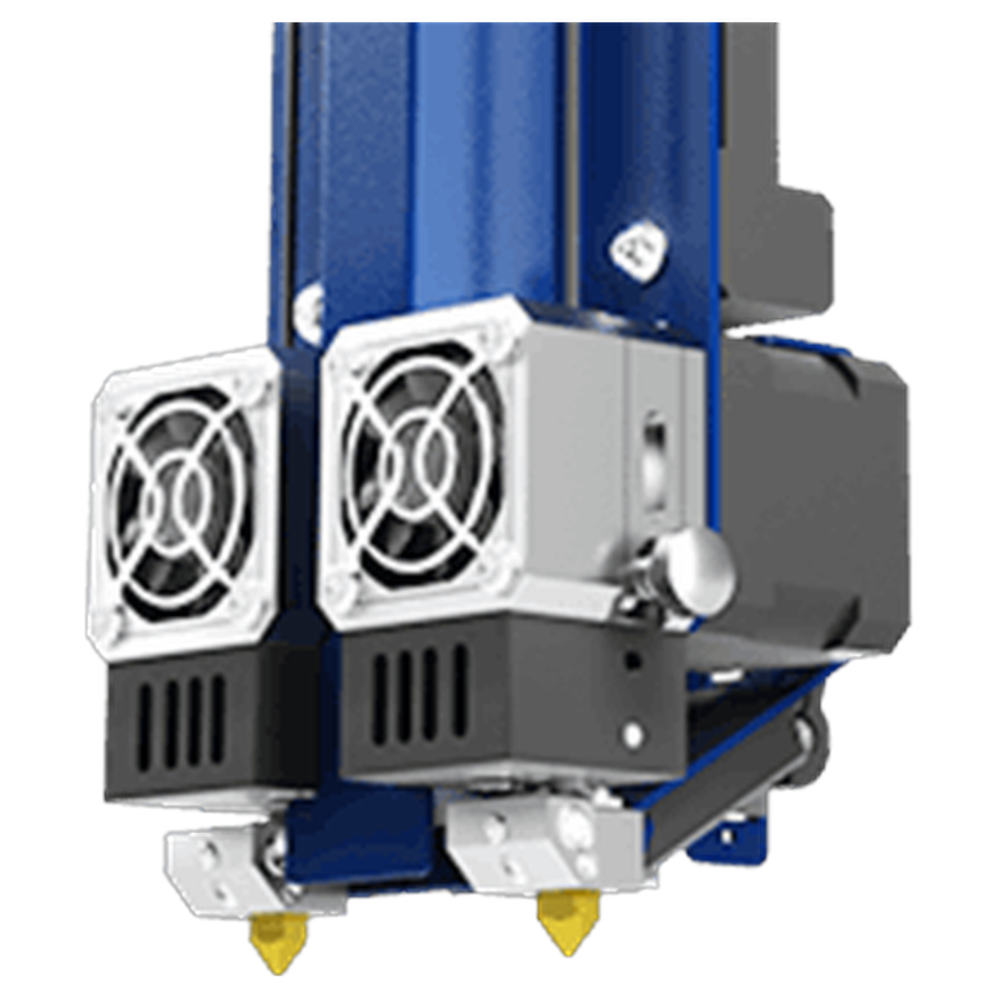

D600 Pro Extruder Unit (Complete Extruder Assembly)
The CreatBot D600 Pro extruder unit (part 183005) is the complete OEM extruder assembly for the CreatBot D600 Pro. The extruder is the part of the print head that grips the filament and drives it into the hotend. Its grip and consistency decide whether the printer lays down the right amount of plastic on every line. Over thousands of print hours, and especially with abrasive or flexible filaments, the extruder wears, and the first signs are usually weak walls and gaps in top surfaces. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro Extruder Unit, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder unit needs replacing
A clicking or knocking sound as the extruder slips on the filament.
Under extrusion that remains after you have cleaned or replaced the nozzle.
Filament with deep bite marks, or filament ground away where the gear grips it.
Physical damage to the unit, such as a cracked housing or bent bracket.
Before you replace it, rule out a partial clog, a print temperature that is too low and damp filament. Rev1 support can help you work through it.
Compatible CreatBot 3D printer
Each D600 version uses its own extruder unit. The D600 Pro2 uses part 183006 and the D600 Pro2 HS uses part 183007. Units for other models include the D1000 (183008) and F430 (183002).
Installation tips
With the hotend at printing temperature, unload the filament. Switch the printer off, unplug it and let the head cool before touching any wiring. Photograph the connectors and cable routing, swap the unit using the original hardware, and reconnect each cable exactly as it was. Load filament and run a manual extrusion to confirm smooth, steady feeding, then re-check the nozzle height and print a calibration part.
CreatBot D600 Pro Extruder Unit Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro Extruder Unit — Questions
Will the D600 Pro2 extruder unit fit my D600 Pro?
CreatBot lists separate units. Order part 183005 for the D600 Pro.
Why replace the whole unit and not individual parts?
A complete unit replaces every worn component at once and is the quickest way back to reliable printing.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 183005, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
