CreatBotD600 Pro Adapter BoardGenuine CreatBot Replacement Part
D600 Pro Adapter Board for D600 and D600 Pro 3D Printers

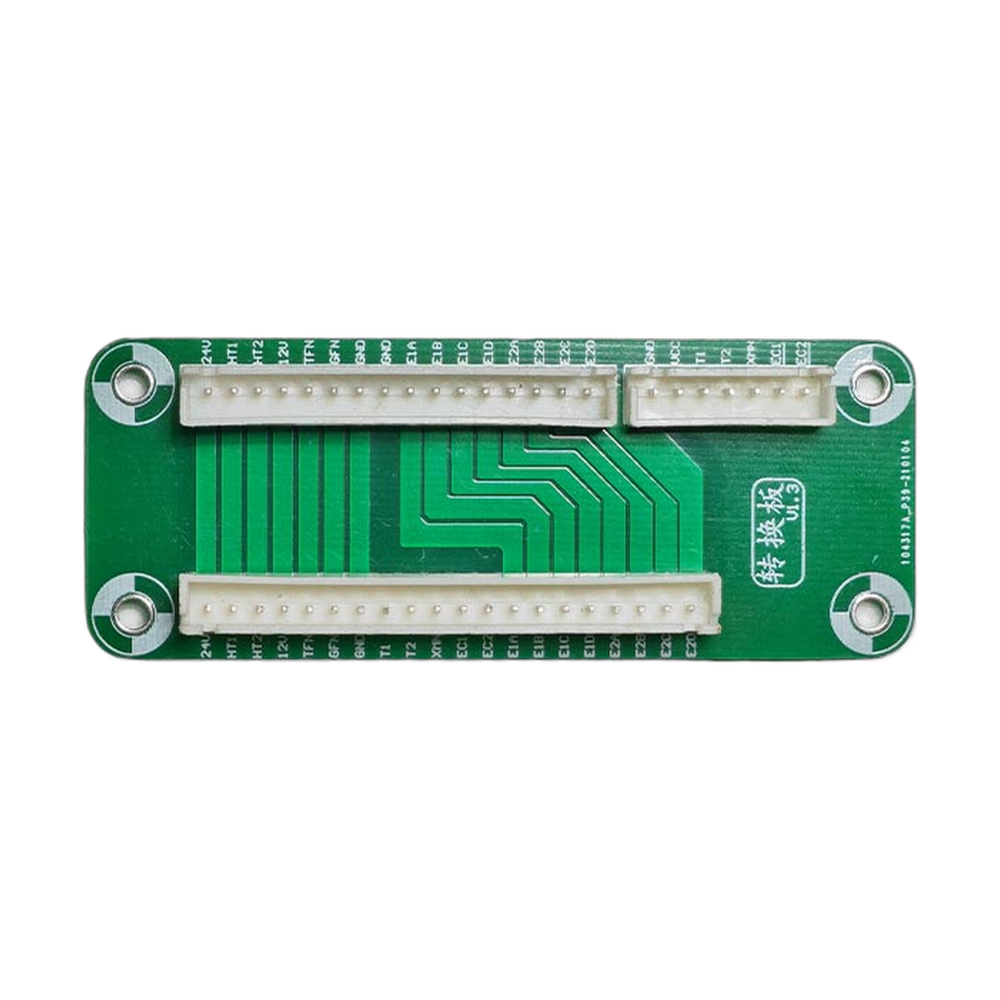

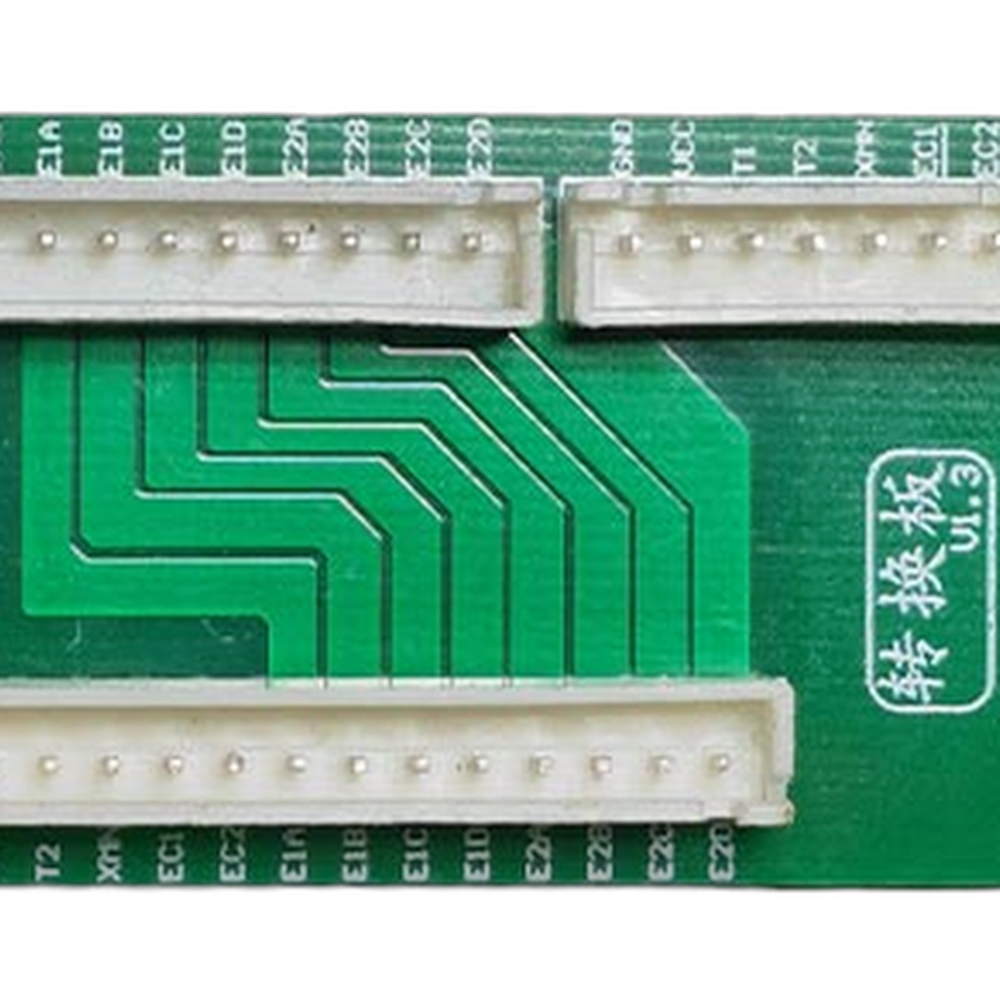

The CreatBot D600 Pro adapter board (part 114008) is the OEM interface board for the CreatBot D600 and D600 Pro large format 3D printers. An adapter board is a junction point in the wiring: it takes the cables from one section of the printer and passes power and signals on to the next, so the main control board can reach the components it drives and reads. When an adapter board fails, the fault usually shows up as a group of components dropping out together rather than one part at a time. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro Adapter Board, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the adapter board may need replacing
Several components connected through the board stop responding at once, such as a heater, a fan and a sensor.
Readings or functions cut in and out when the cables at the board are moved.
Visible damage on the board: a scorched area, a cracked solder joint or a loose or broken connector.
A damaged cable or a failed main board can look the same. Rev1 support can help you narrow it down before you order.
Compatible CreatBot 3D printers
Other CreatBot printers use their own adapter boards: the F430 uses part 114005, the F430 NX uses part 114004 and the PEEK-250 uses part 114003.
Installation tips
Power the printer off and unplug it before you open any cover. Photograph the board and every connector in place, then label each cable as you unplug it. Handle the new board by its edges with anti-static precautions, reconnect each cable to the same position, and check that no wire is pinched when you refit the cover. Power up and test each function that runs through the board: heating, fans and sensor readings.
CreatBot D600 Pro Adapter Board Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro Adapter Board — Questions
Is this the same board my D600 Pro shipped with?
Yes. It is the genuine CreatBot adapter board, part 114008, listed for the D600 and D600 Pro.
Will it fit my F430?
No. The F430 uses its own adapter board, part 114005.
Can Rev1 replace it for me?
Yes. Rev1 Technologies is a certified CreatBot service provider and can diagnose the fault, fit the board and test the printer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
