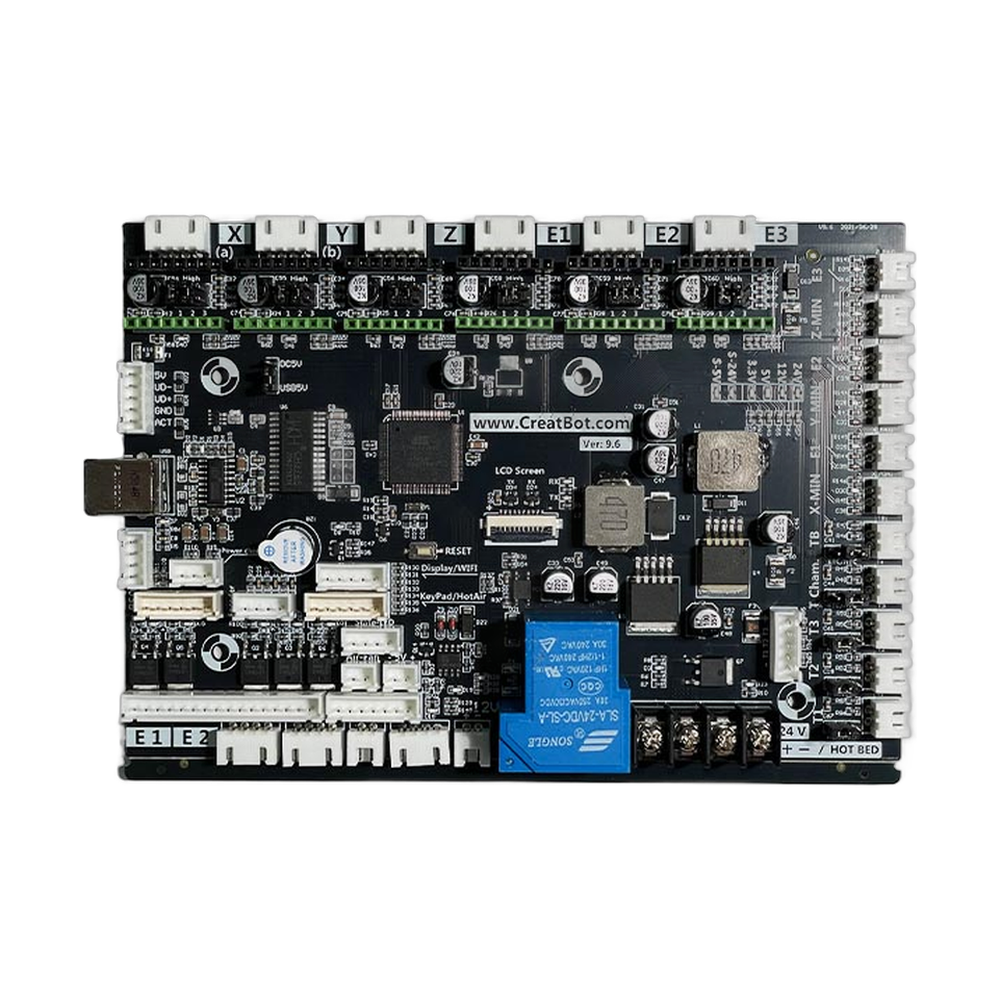

D600 Pro 8-Bit Motherboard (Main Control Board)
The CreatBot D600 Pro 8-bit motherboard is the OEM main control board for CreatBot D600 Pro printers built with 8-bit electronics. The motherboard runs the printer: it processes the print, drives the stepper motors, controls the hotends, heated bed and fans, and reads the sensors. CreatBot produced the 8-bit board in two versions, V9.6 and V2.2, so this product comes in two options. Matching the version on your existing board is the key to a straightforward replacement. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro 8-Bit Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your motherboard may need replacing
The printer will not boot, or the display stays blank or frozen.
An axis, heater or fan stops working while the component itself tests good.
Visible damage: burnt components, a scorched connector or a burning smell from the electronics.
A failed power supply, cable or connector can produce the same symptoms. Contact Rev1 support before ordering and we will help you confirm the board is the cause.
Choose your version
| Version | Part number | Fits |
|---|---|---|
| V9.6 | 111007 | D600 Pro (8-bit V9.6 board) |
| V2.2 | 111008 | D600 Pro (8-bit V2.2 board) |
Compatible CreatBot 3D printers
Both versions fit the D600 Pro; the right one is the version your printer was built with. D600 Pro printers with 32-bit electronics use a different board, the 32-bit V1.0.1 (111009).

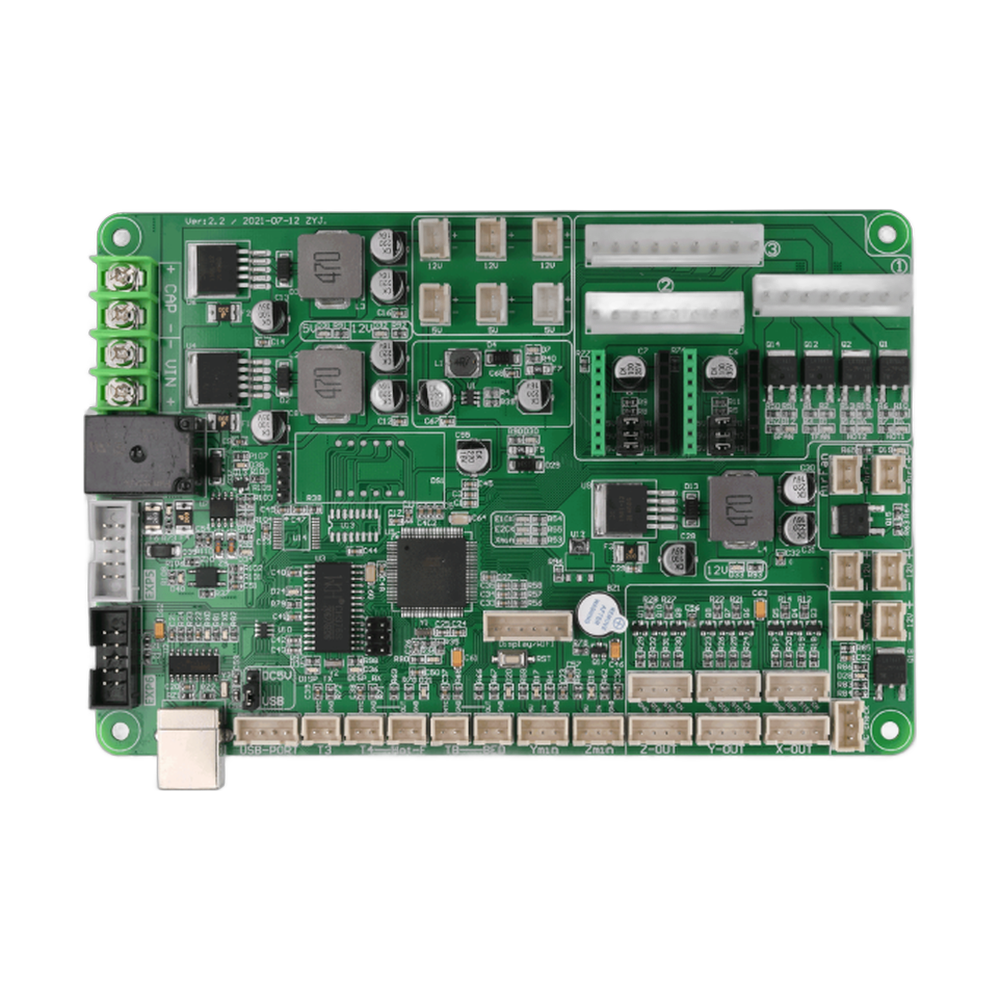

How to choose between V9.6 and V2.2
Board revisions differ in layout, connectors and firmware, so order the same version you are replacing. The version is normally printed on the board. With the printer unplugged, open the electronics bay and look for the marking near the board's edge or label. If the board is marked V9.6, order part 111007. If it is marked V2.2, order part 111008. If the marking reads 32-bit or V1.0.1, you need part 111009 instead. If the board is damaged or you cannot read it, send a photo to Rev1 support and we will identify it before you order.
Installation tips
Power the printer off and unplug it. Photograph every connector and label the cables before disconnecting anything, then move connections across one at a time. Use anti-static precautions when handling the board. After installation, confirm the firmware with Rev1 support and test homing, heating and a short print. If your printer is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot D600 Pro 8-Bit Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro 8-Bit Motherboard — Questions
Which version do I need?
The same version as the board in your printer. Check the marking on the board: V9.6 is part 111007, V2.2 is part 111008.
Can I swap a V9.6 board for a V2.2?
Contact Rev1 support before doing that. Different revisions can differ in wiring and firmware, and the safe choice is a like-for-like replacement.
Can Rev1 install the board?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test it.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
