CreatBotD600 Pro 32-Bit MotherboardGenuine CreatBot Replacement Part
D600 Pro 32-Bit Motherboard V1.0.1 (Main Control Board)

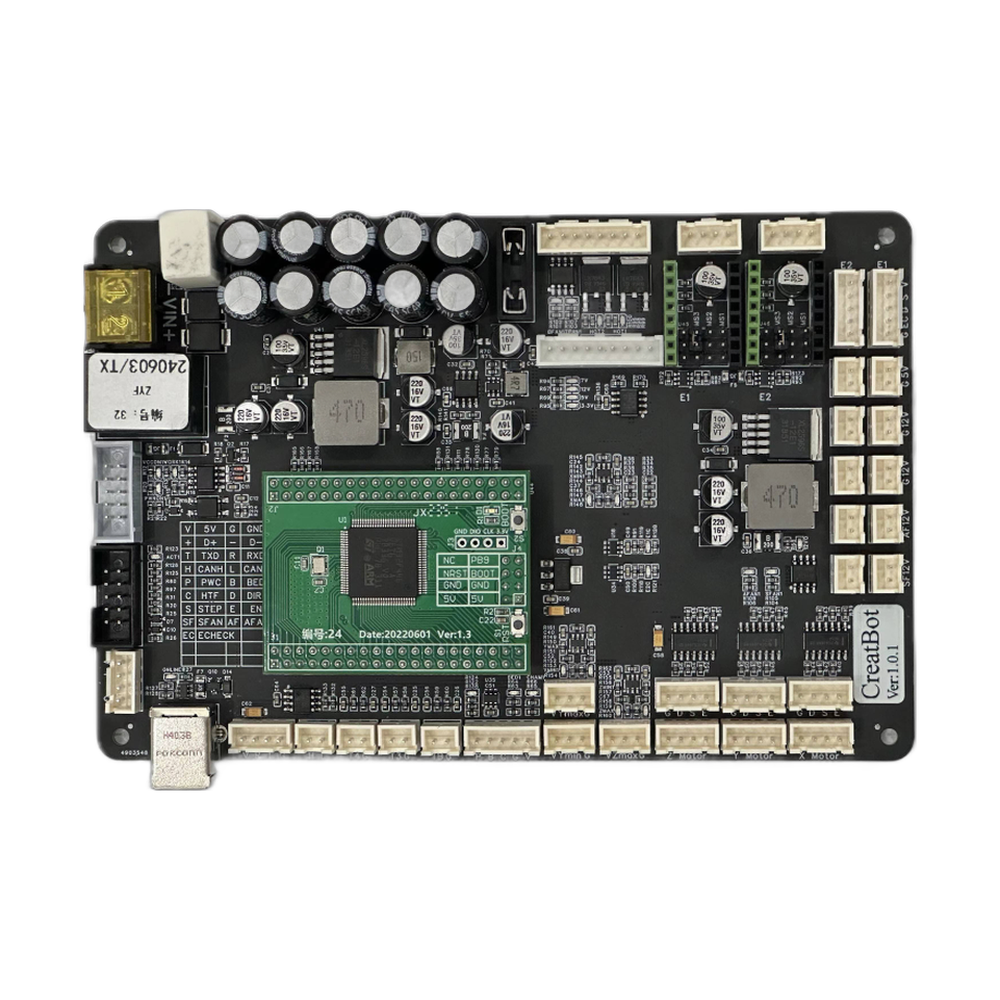

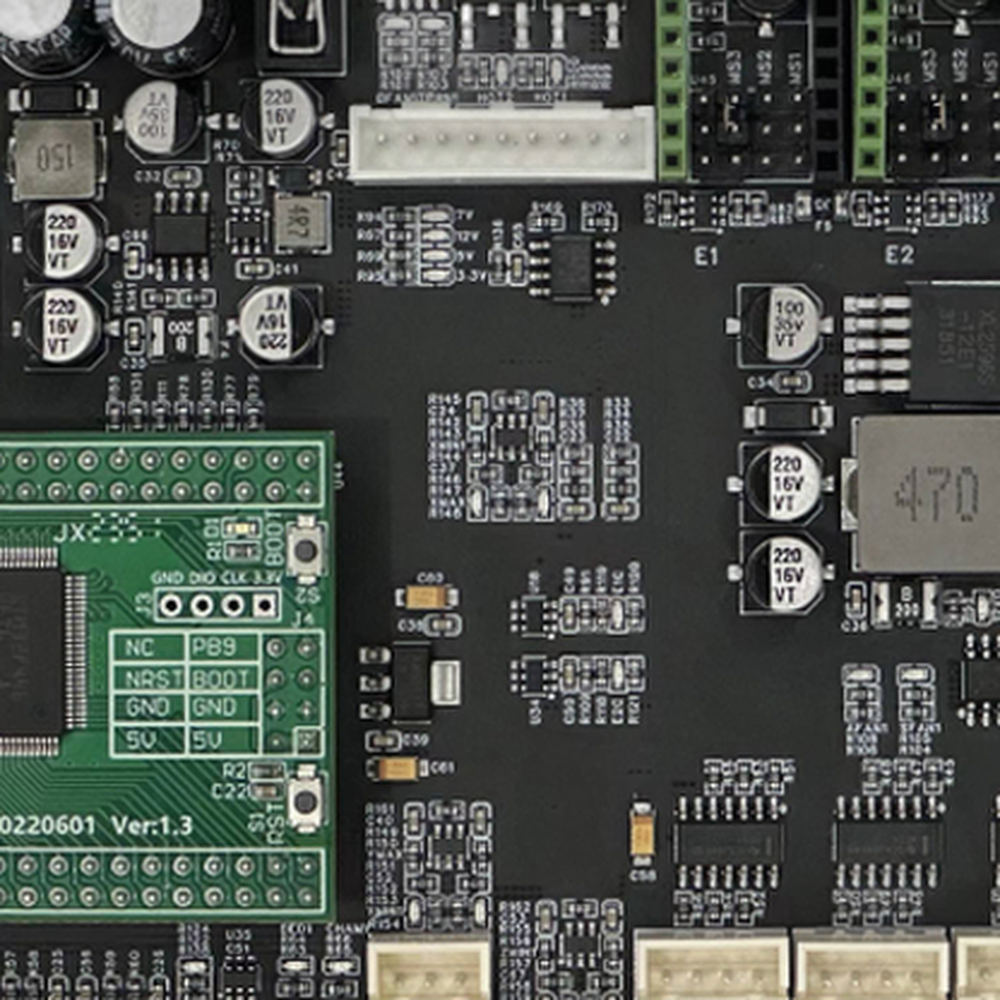

The CreatBot D600 Pro 32-bit motherboard V1.0.1 (part 111009) is the OEM main control board for CreatBot D600 Pro printers built with the 32-bit electronics. The motherboard controls the whole machine: it processes the print, drives the stepper motors, runs the hotends, heated bed and fans, and reads the sensors. The D600 Pro was produced with more than one board over its life, so the most important step is confirming that your printer uses this 32-bit V1.0.1 board. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro 32-Bit Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Which D600 Pro board do you have?
CreatBot lists three motherboards for the D600 Pro:
Part 111009 (this board)
Part 111007
Part 111008
The version is normally printed on the board itself. Open the electronics bay with the printer unplugged, photograph the board and compare the markings. 8-bit and 32-bit boards run different firmware, so they are not drop-in swaps for each other. If you cannot read the markings, send the photo to Rev1 support and we will identify it.
Signs the motherboard may need replacing
The printer does not boot or the display stays blank.
An axis, heater or fan stops responding while the component itself tests good.
Burnt components or a damaged connector on the board.
Compatible CreatBot 3D printer
The D600 Pro2 uses part 111010 and the D600 Pro2 HS uses 111001.
Installation
Power the printer off and unplug it before opening the electronics bay. Photograph every connector before you disconnect anything and use anti-static precautions. After installation, confirm the firmware with Rev1 support, then test homing, heating and a short print. If your printer is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot D600 Pro 32-Bit Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro 32-Bit Motherboard — Questions
Can I replace an 8-bit board with this 32-bit board?
Talk to Rev1 support first. The boards run different firmware, and a change of board type needs to be checked against your printer.
Does it fit the D600 Pro2?
No. The D600 Pro2 uses part 111010.
Can Rev1 install it?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test the board.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
