CreatBotD600/D600 Pro Heating TubeGenuine CreatBot Replacement Part
Hotend Heating Tube for D600 and D600 Pro

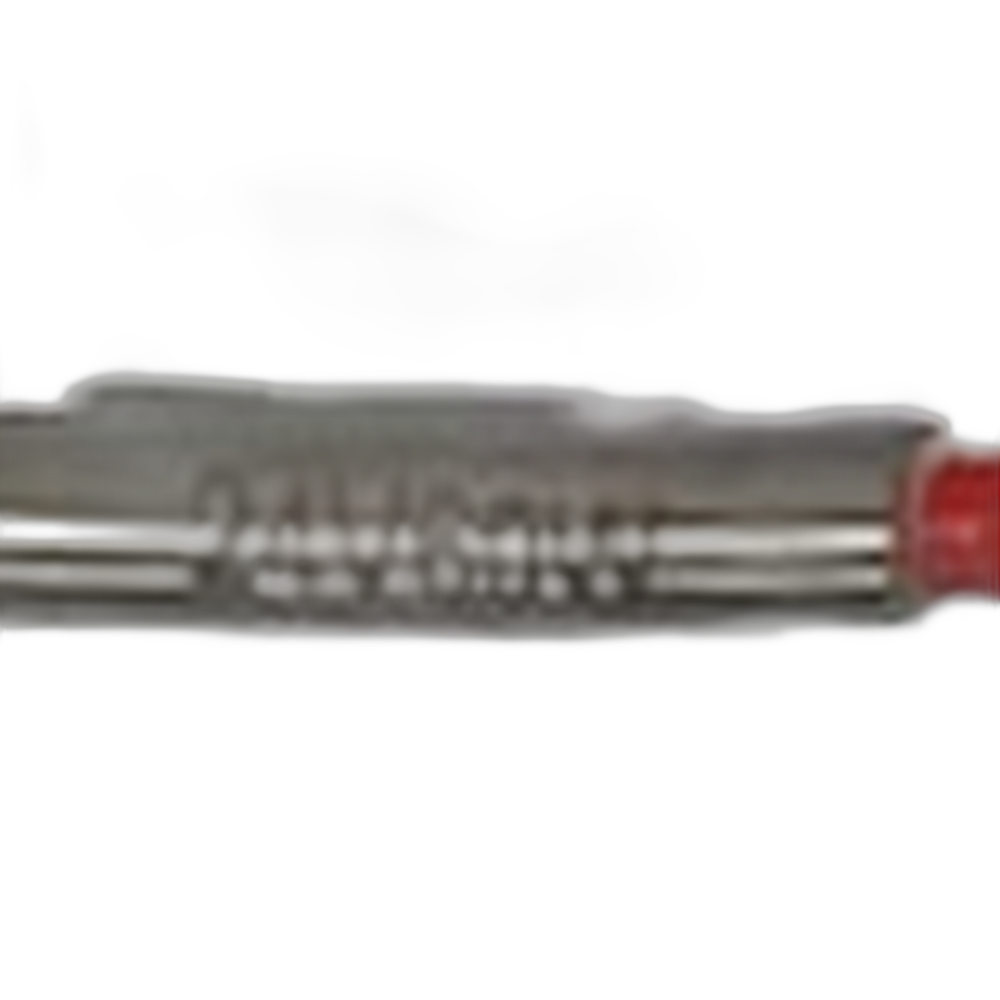

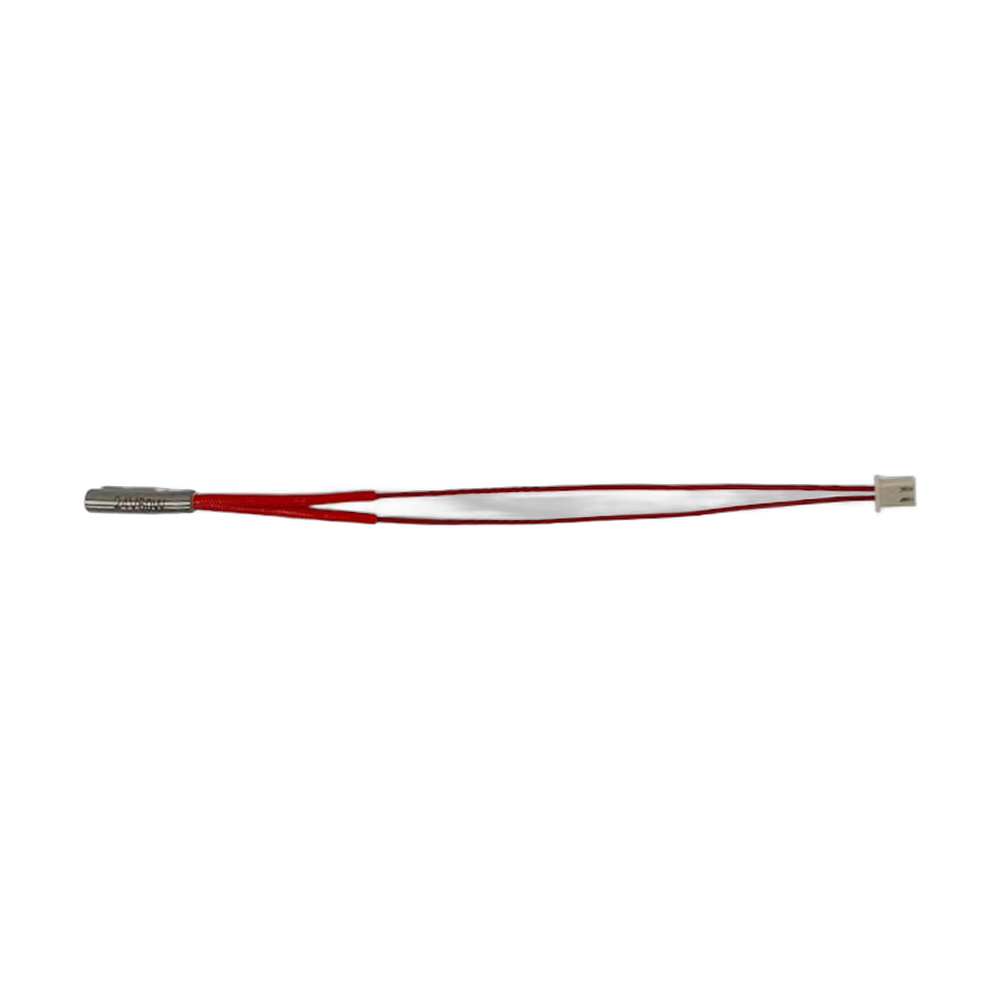

The CreatBot heating tube (part 105007) is the OEM hotend heater for the CreatBot D600 and D600 Pro. It sits in the heating block and supplies the heat that melts filament before it leaves the nozzle. If the heating tube fails or weakens, the hotend cannot hold its set temperature and extrusion suffers, so replacing it with the genuine part brings the extruder back to factory behavior. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600/D600 Pro Heating Tube, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating tube needs replacing
The hotend heats slowly or never reaches its target temperature.
The printer reports a heating error or a temperature fault during warm up.
Under extrusion or weak layers that appear mid print as the temperature sags.
Damaged, pinched or burnt leads where the wires exit the tube.
A failed thermistor, loose connector or board fault can show similar symptoms. If you are unsure, contact Rev1 support and we will help you narrow it down before you order.
Compatible CreatBot 3D printers
Newer D600 models use different heating tubes. The D600 Pro2 uses part 105011, the D600 Pro2 HS uses part 105001, and the D600 Pro3 HS uses part 105014. Check your exact model name on the printer label before ordering.
Installation tips
Power the printer off, unplug it and let the hotend cool completely before you start. Photograph the wiring and note the cable route so the new leads follow the same path away from moving parts. Loosen the retaining screw on the heating block, slide the old tube out and seat the new one fully in the bore, then tighten the screw firmly without crushing the tube. Reconnect the leads, secure them, and run a heat test while watching the temperature reading. Recalibrate the nozzle height and run a short test print before returning to production work. If you would rather not open the hotend yourself, Rev1 service can do the replacement.
CreatBot D600/D600 Pro Heating Tube Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600/D600 Pro Heating Tube — Questions
Is this a genuine CreatBot heating tube?
Yes. It is CreatBot part 105007, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my D600 Pro2?
No. Part 105007 is for the D600 and D600 Pro only. The D600 Pro2 uses part 105011.
My D600 Pro has two extruders. Do I need two heating tubes?
Each hotend has its own heating tube, so order one for each hotend that is failing. Many owners keep a spare on hand to avoid downtime.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
