CreatBotD1000 Z MotorGenuine CreatBot Replacement Part

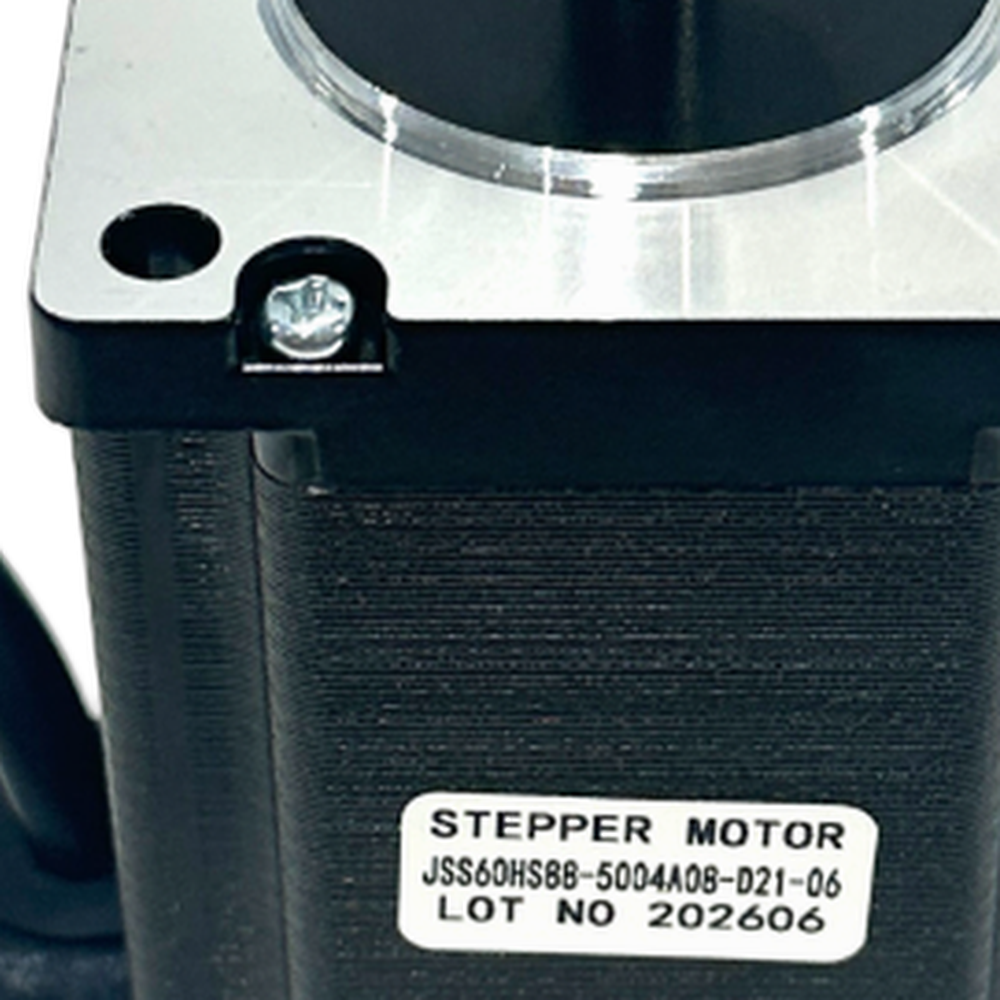

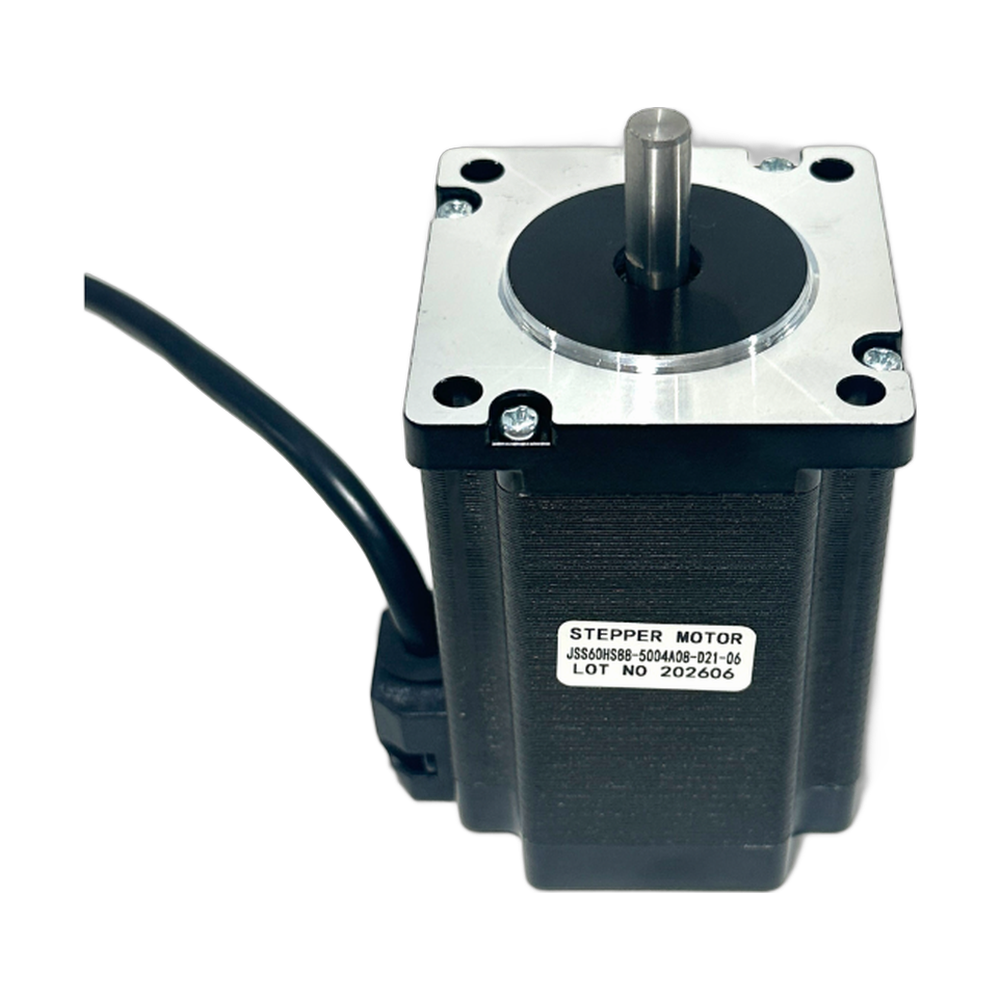

D1000 Z-Axis Motor
The CreatBot D1000 Z motor (part 131029) is the OEM Z-axis motor for the CreatBot D1000. The D1000 is built for very tall parts, and the Z motor is what moves the axis up one layer at a time through the whole build. If the Z motor misses steps or stalls, the result is visible straight away as uneven layers, a short part or a failed print. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why the Z motor matters on a D1000
A tall part means a very large number of Z steps. The motor has to make each one accurately.
Consistent Z movement is what gives smooth, even layer lines.
Lost steps compress the part and throw off dimensions.
Signs the Z motor may need replacing
The Z axis will not move, or moves unevenly or with a grinding sound.
Layer banding or compressed sections that remain after mechanical checks.
The motor stalls during homing or leveling.
Damage to the shaft, body or connector.
A dirty or dry lead screw, a slipping coupling or a cable fault can cause the same symptoms. Rule those out first, or ask Rev1 support for help with diagnosis.
Compatible CreatBot 3D printer
The D1000's extruder motors are parts 131027 (E1) and 131028 (E2). The D1000 HS is a different printer and uses Z motor 131004.
Installation tips
Turn the printer off and unplug it. Secure the Z axis so it cannot move or drop while the motor is removed. Photograph the motor mount, coupling and cable routing first. Install the new motor, tighten the coupling evenly so the lead screw runs true, reconnect the cable, then home the axis, re-level the bed and print a tall test piece to confirm even layers.
CreatBot D1000 Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Z Motor — Questions
Is this the same Z motor as the D1000 HS?
No. The D1000 uses part 131029 and the D1000 HS uses part 131004.
Can a failing Z motor cause layer shifts?
A Z motor fault shows up as uneven or compressed layers rather than sideways shifts. Sideways shifts usually point to the X or Y axis.
Is this a genuine CreatBot motor?
Yes. It is CreatBot part 131029, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
