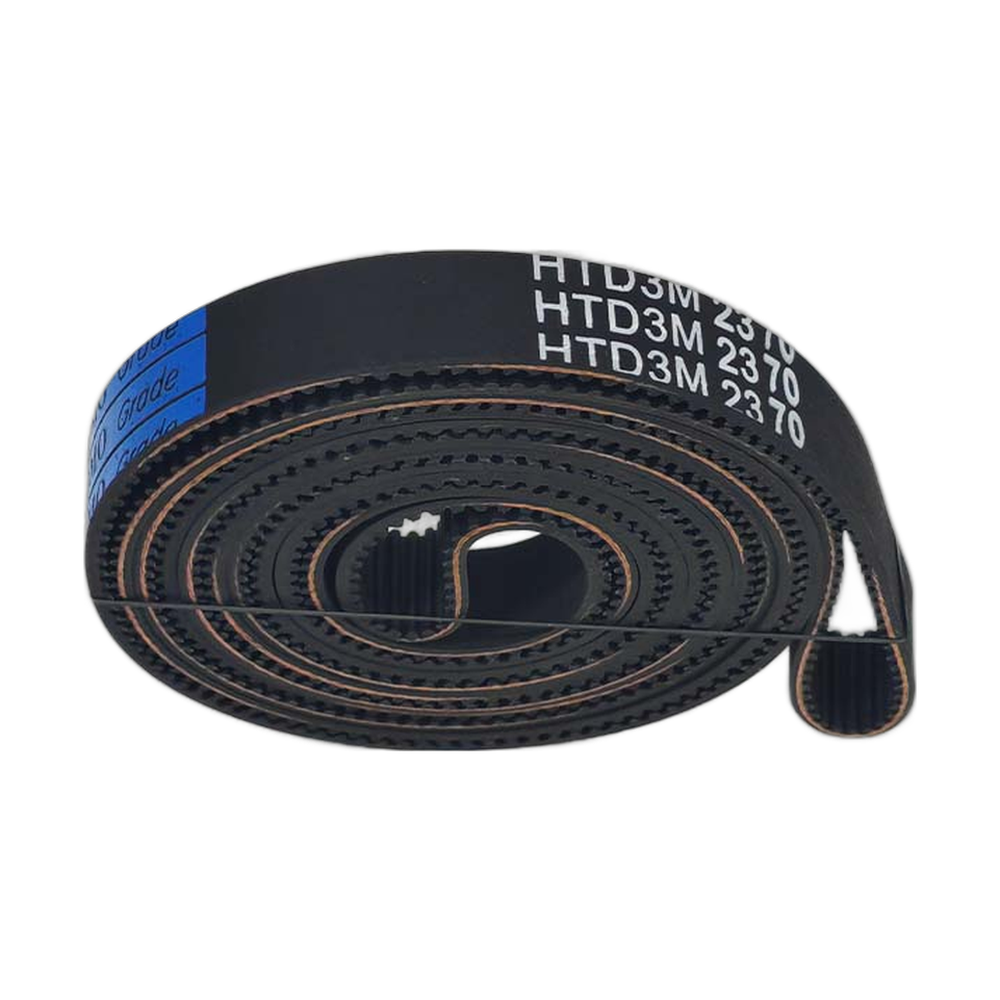

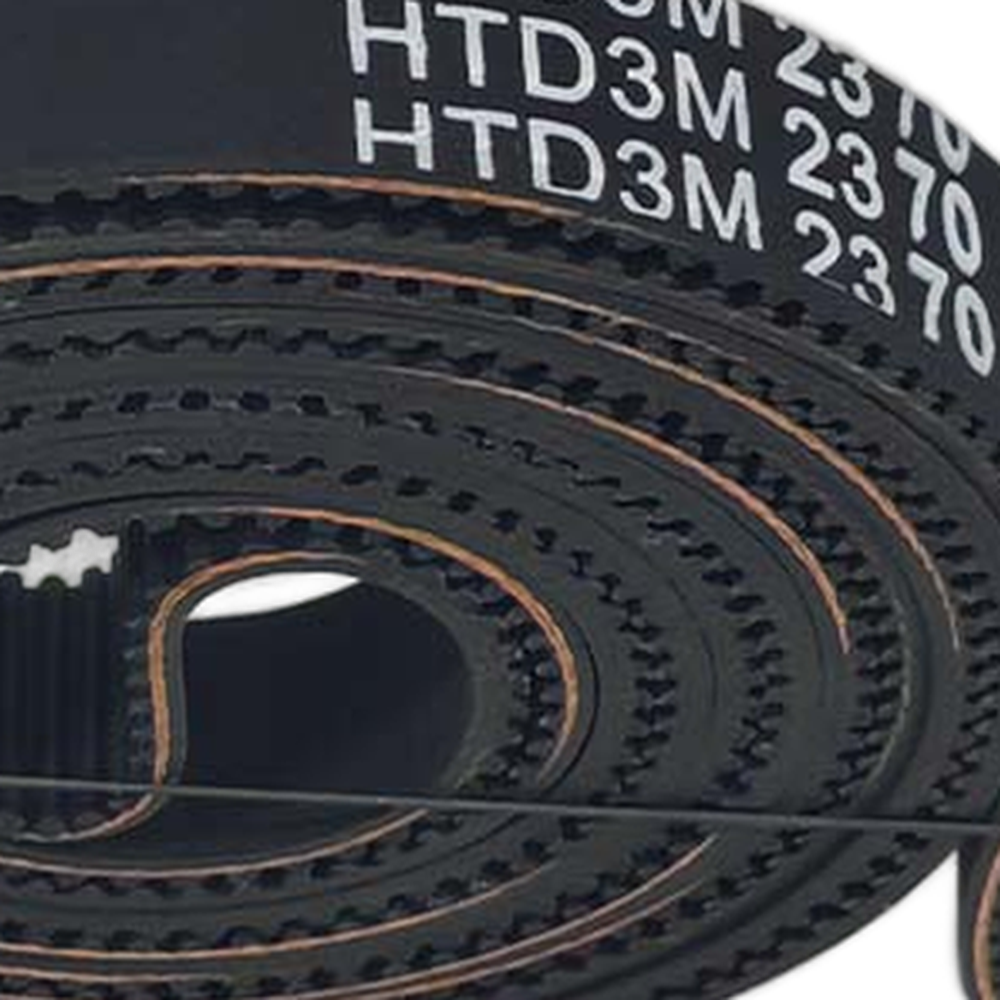

CreatBotD1000 Z-Axis Timing BeltGenuine CreatBot Replacement Part
For the CreatBot D1000
The CreatBot D1000 Z-axis timing belt (part 143019) is the OEM timing belt in the Z drive of the CreatBot D1000. On a printer with more than one Z lead screw, a timing belt is what keeps those screws turning together. If it slips even one tooth, one side of the bed or gantry ends up higher than the other, and every layer after that is printed on a tilt. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Z-Axis Timing Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z-axis timing belt needs replacing
The bed keeps going out of level, even right after leveling.
First layers are squashed on one side of the plate and thin on the other.
Tall prints lean, or layers are uneven from one side of the part to the other.
The belt is cracked, frayed, missing teeth or has visibly stretched.
Compatible CreatBot 3D printer
The D1000 also uses a Z-axis motor belt, part 143018, which is a different belt. The D1000 HS has its own Z-axis timing belt, part 143024.
Keeping the Z drive in step
The most important part of this job is putting the Z drive back exactly in step. Before you remove the old belt, lower the bed or gantry onto supports or measure the height at each corner, and mark each pulley against its housing. Fit the new belt with every mark back in position. If the drive does go out of step, the bed will need to be trammed before leveling can work.
Installation tips
Power the printer off and unplug it. Support the moving Z assembly so it cannot drop or tilt. Release the tensioner, swap the belt with the pulley marks aligned, re-tension it, and turn the drive slowly by hand while you watch that all screws move together. Home the printer, run bed leveling and print a full plate first layer test.
CreatBot D1000 Z-Axis Timing Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Z-Axis Timing Belt — Questions
Is this the Z-axis motor belt?
No. The motor belt is part 143018. This is the Z-axis timing belt, part 143019.
Will it fit the D1000 HS?
No. The D1000 HS uses part 143024.
Can Rev1 do this for me?
Yes. Rev1 is a certified CreatBot service provider and can replace the belt, re-tram the bed and verify the first layer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
