CreatBotD1000 Z-Axis Motor BeltGenuine CreatBot Replacement Part
For the CreatBot D1000

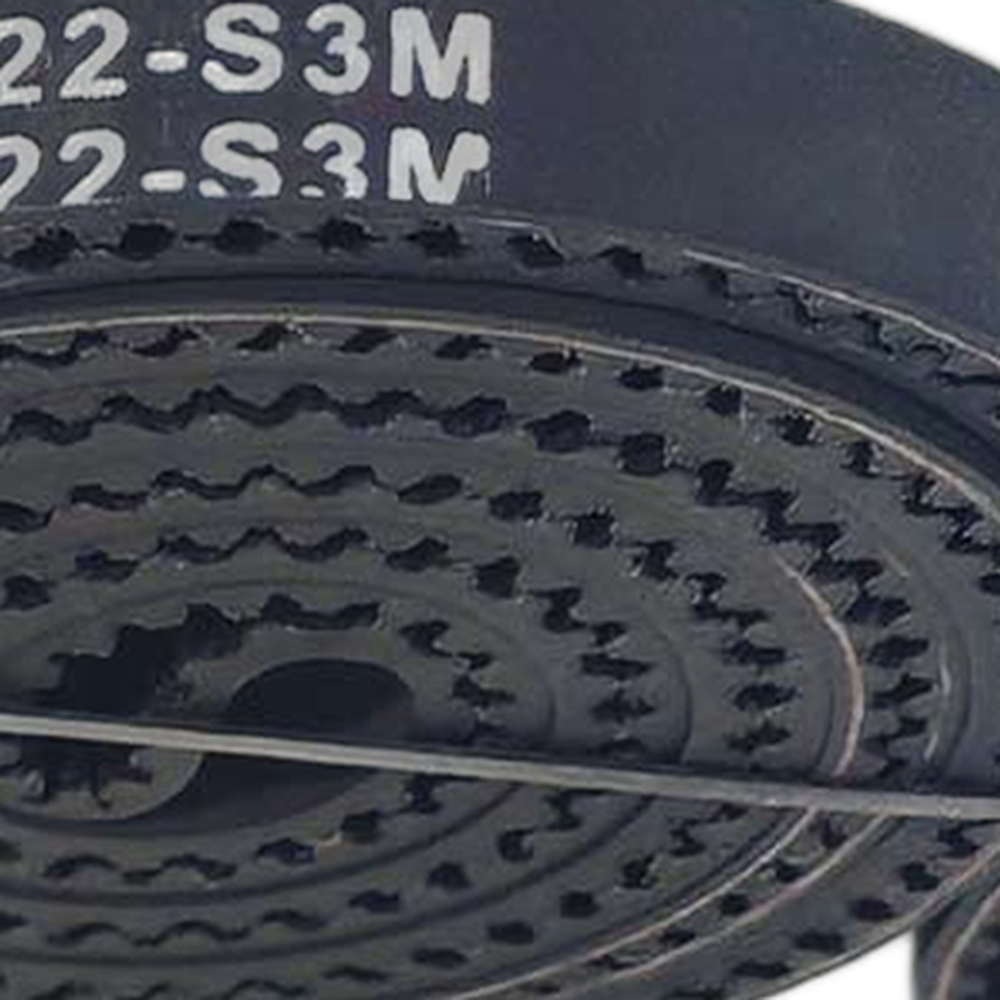

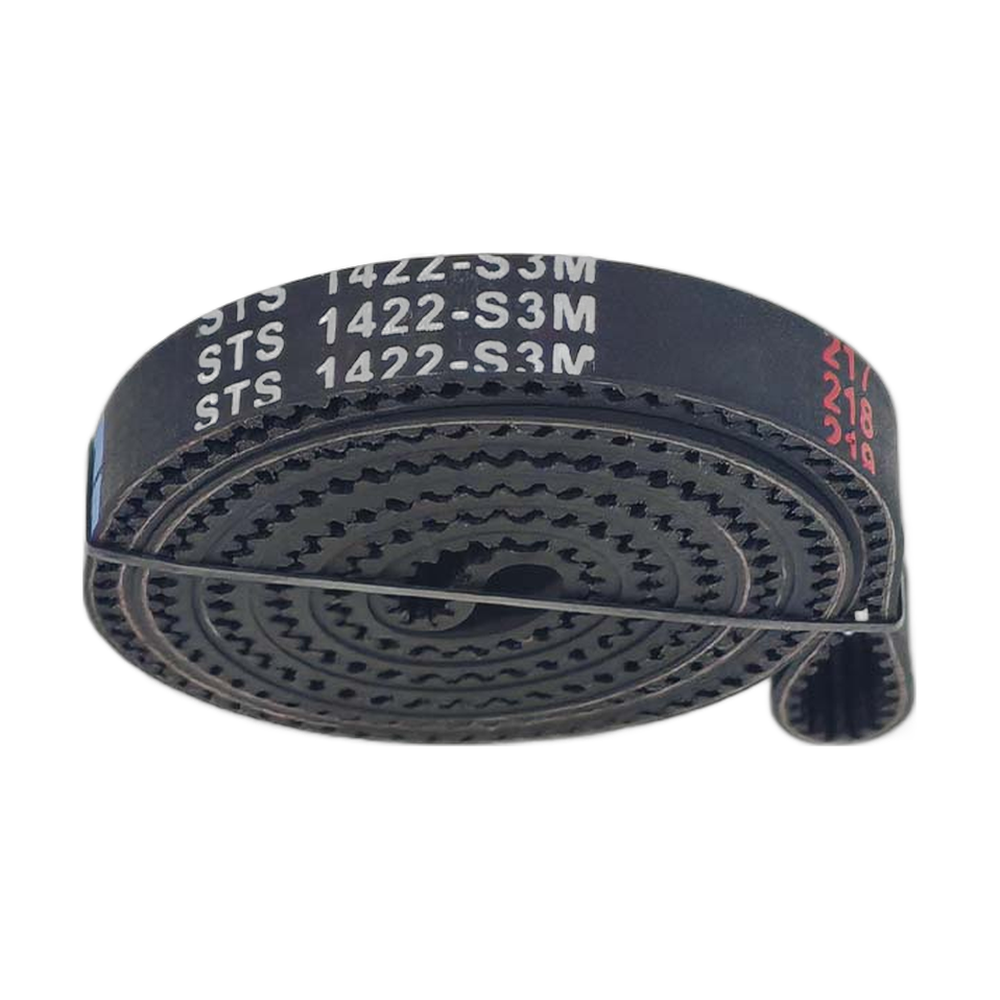

The CreatBot D1000 Z-axis motor belt (part 143018) is the OEM belt that takes drive from the Z motor on the CreatBot D1000. The D1000 lists two Z belts: this motor belt and a separate Z-axis timing belt. As the name indicates, the motor belt is the link between the motor and the rest of the Z drive, so if it slips, the Z axis cannot move as commanded and layer height suffers. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Z-Axis Motor Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z-axis motor belt needs replacing
Layers are compressed or stretched, or part heights are wrong.
The Z motor turns but the bed or gantry does not move, or moves unevenly.
A slipping or clicking sound at the Z motor during layer changes or homing.
The belt is cracked, glazed, missing teeth or will not hold tension.
Compatible CreatBot 3D printer
The D1000 Z-axis timing belt is a different part, 143019. The D1000 HS uses its own Z-axis motor belt, part 143023. X and Y belts for the D1000 are 143015, 143016 and 143017.
Motor belt or timing belt?
If the motor turns and nothing else does, or you hear slipping right at the motor, suspect the motor belt. If the Z axis moves but one side ends up higher than the other, suspect the timing belt that keeps the Z drive in step. When both belts are the same age, many owners replace them together.
Installation tips
Power the printer off and unplug it. Support the bed or gantry before you take load off the Z drive so nothing can drop. Loosen the motor mount to release tension, swap the belt, then re-tension and turn the drive by hand. Home the printer, run bed leveling and print a test part to confirm layer height.
CreatBot D1000 Z-Axis Motor Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Z-Axis Motor Belt — Questions
Which Z belt do I need?
The motor belt (143018) links the Z motor to the drive. The timing belt (143019) is a separate part. Rev1 support can help you identify the worn one.
Does it fit the D1000 HS?
No. The D1000 HS uses part 143023.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 143018, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
