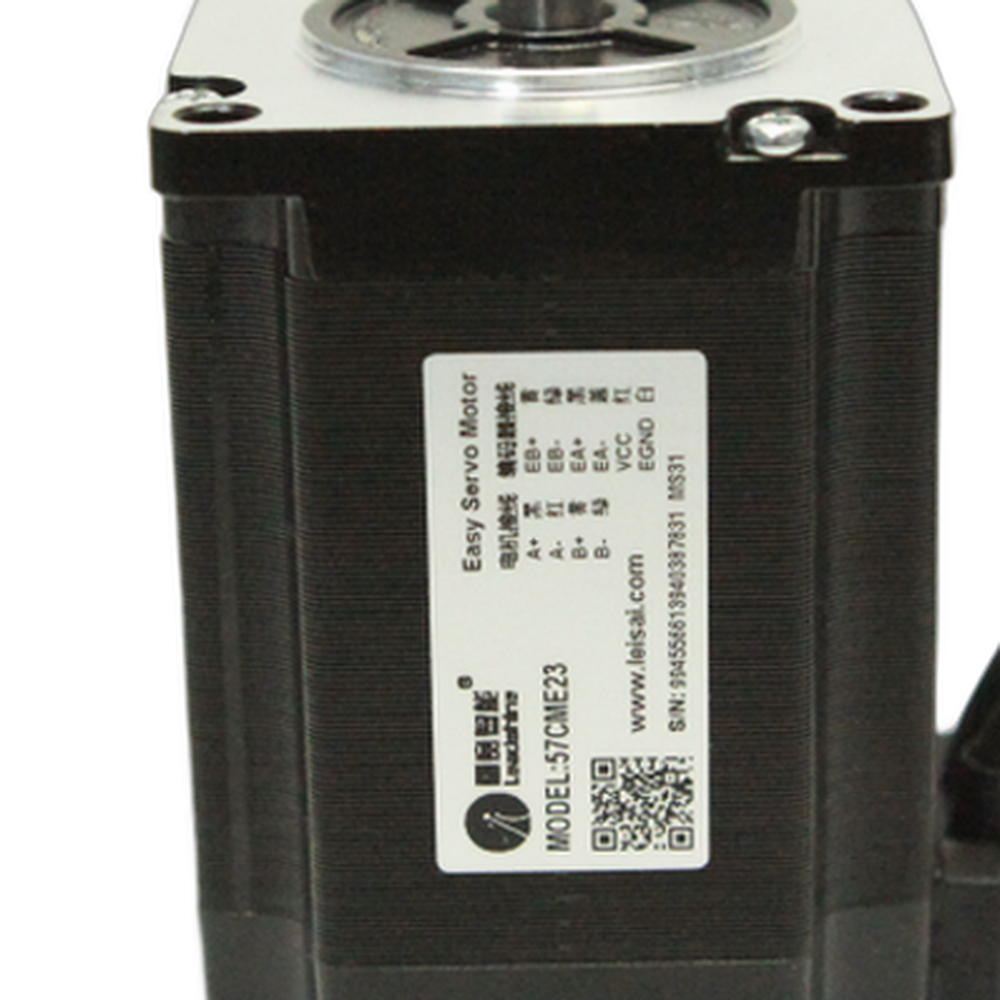

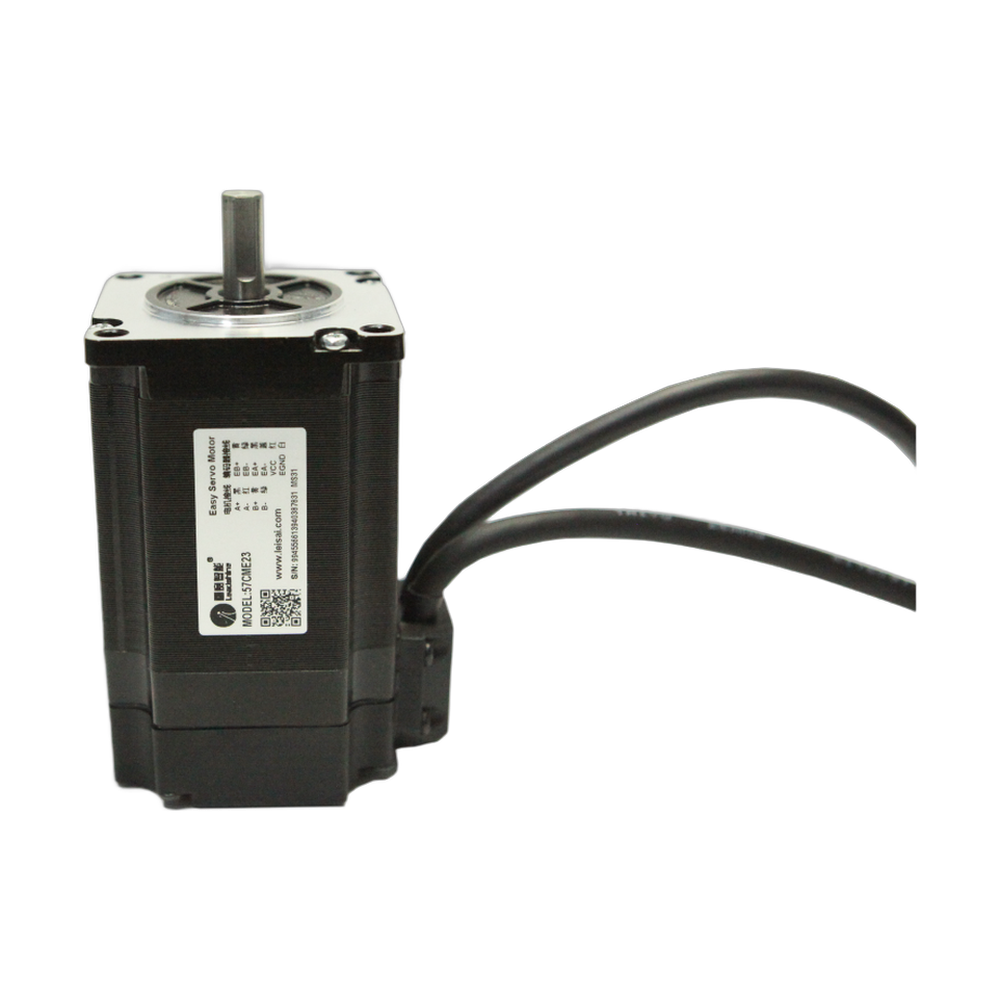

CreatBotD1000 Y Axis MotorGenuine CreatBot Replacement Part
For the CreatBot D1000
The CreatBot D1000 Y motor (part 132011) is the OEM motor for the Y axis of the CreatBot D1000 large format 3D printer. The Y axis carries the front to back motion of the machine. Because the D1000 builds tall, heavy parts over long print times, a Y motor that loses position even once can ruin a job that has been running for a day or more. A genuine replacement puts the axis back to factory behavior. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Y Axis Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Y motor needs replacing
Prints show a sudden step or offset front to back, while the X direction stays clean.
The Y axis hesitates, vibrates or makes a grinding noise during fast moves.
Homing on Y fails or the axis stops without an obvious mechanical obstruction.
The motor shaft feels rough or notchy when turned by hand with the power off.
Before replacing the motor, check the Y belt tension, the pulley set screws and the motor cable. If those are fine and the fault stays on the Y axis, the motor is the likely cause. Rev1 support can help you work through it.
Compatible CreatBot 3D printer
The D1000 X axis uses part 132010. If you own a D1000 HS, order Y motor 132004 instead.
Installation tips
Switch the printer off and disconnect power. Label or photograph the motor connector, then take the tension off the Y belt before you unbolt the motor. Fit the new motor in the same orientation, line the pulley up with the belt path and tighten the set screws on the flat of the shaft if there is one. Restore belt tension, home all axes and print a square test part to check that the Y dimension is correct.
CreatBot D1000 Y Axis Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Y Axis Motor — Questions
Do I need to replace the X motor at the same time?
Not unless it shows its own symptoms. The X and Y motors are separate parts and can be replaced individually.
Is part 132011 a genuine CreatBot motor?
Yes. Rev1 Technologies supplies it as an authorized CreatBot dealer.
Can Rev1 replace it for me?
Yes. As a certified CreatBot service provider, Rev1 can diagnose the axis fault, fit the motor and test the printer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
