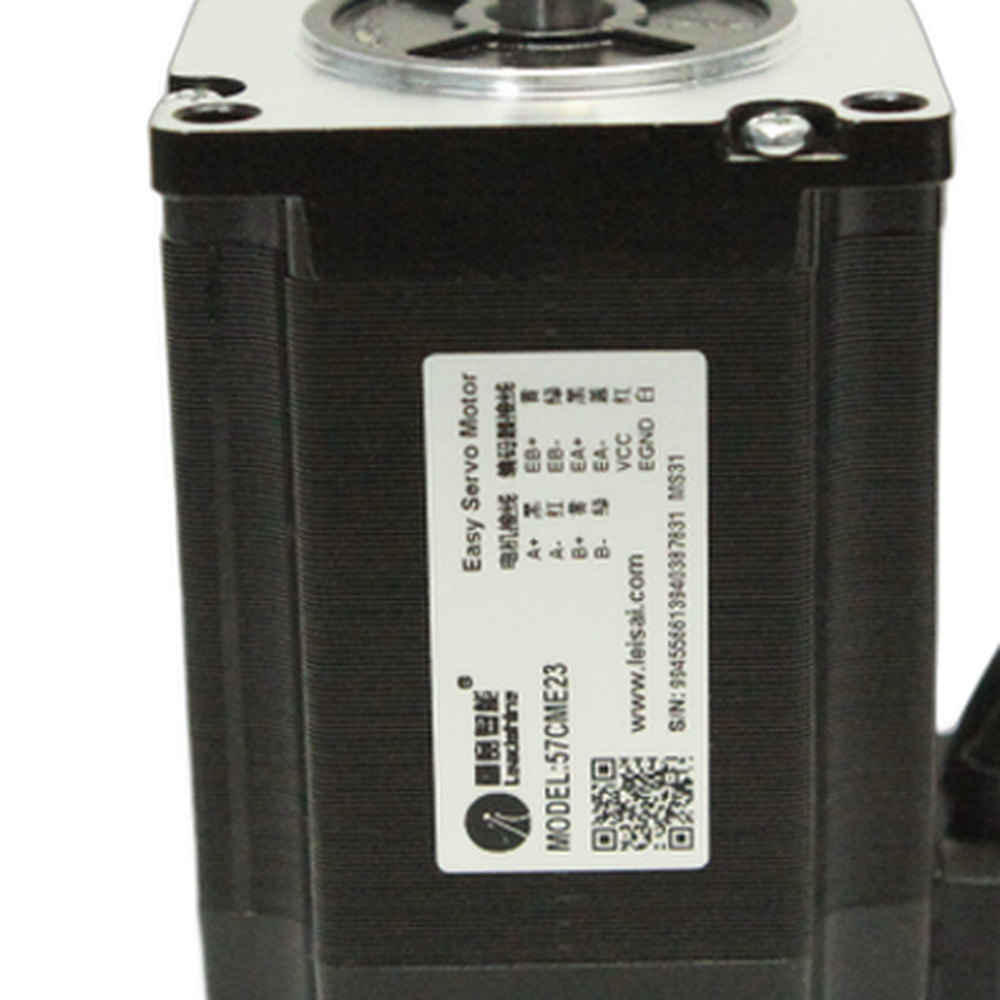

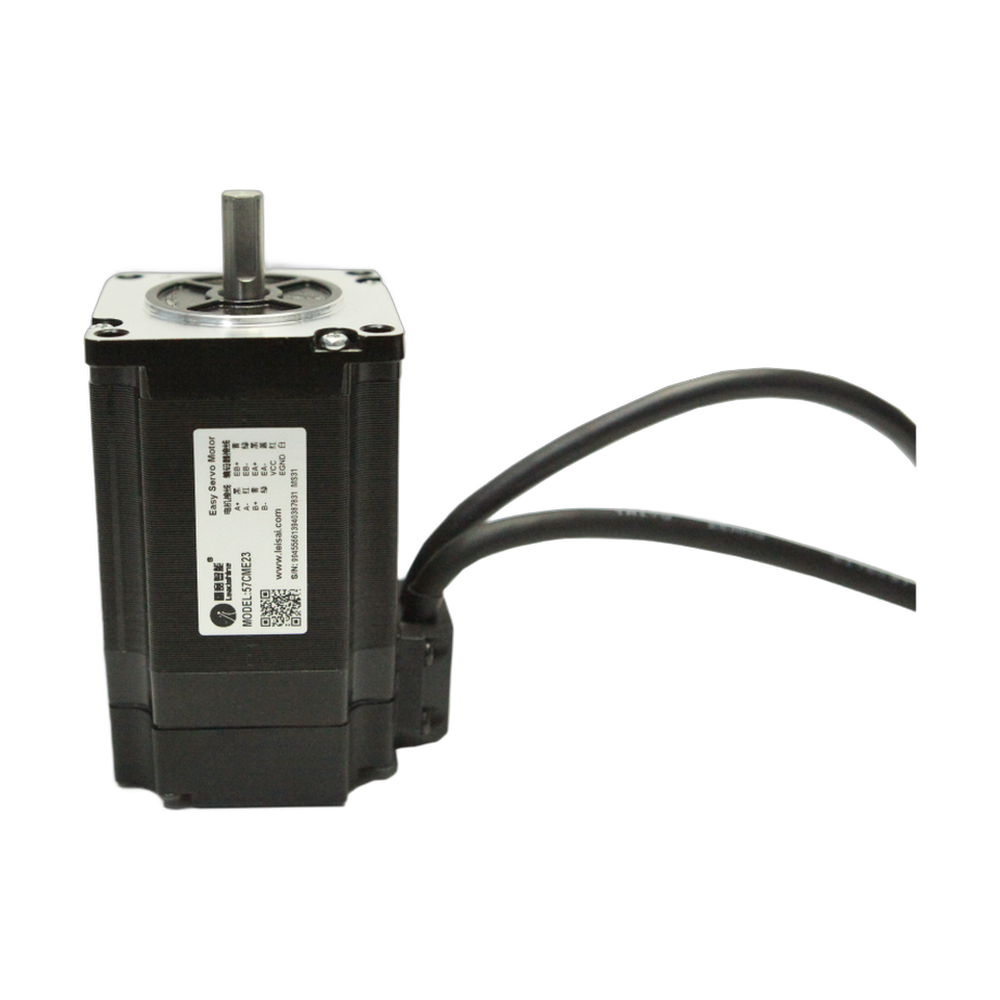

CreatBotD1000 X Axis MotorGenuine CreatBot Replacement Part
For the CreatBot D1000
The CreatBot D1000 X motor (part 132010) is the OEM motor that drives the X axis on the CreatBot D1000 large format 3D printer. It moves the print head from side to side along the gantry, so every perimeter, infill line and travel move depends on it. When the X motor skips, stalls or runs rough, the result shows up in your parts as shifted layers and uneven walls, and on a machine this size a failed print can mean many hours lost. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 X Axis Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X motor needs replacing
Layers shift in the X direction partway through a print, even with the belt correctly tensioned.
The print head stutters, grinds or buzzes as it moves left and right.
The X axis will not home, or stops responding while the Y and Z axes still work.
The motor runs noticeably louder or hotter than it used to.
A loose pulley, a damaged cable or a driver fault on the motherboard can produce the same symptoms. Contact Rev1 support before you order and we will help you confirm the motor is the cause.
Compatible CreatBot 3D printer
The D1000 Y axis uses its own motor, part 132011. The D1000 HS is a different machine with its own motors: X motor 132003 and Y motor 132004.
Installation tips
Power the printer off and unplug it before you start. Photograph the motor connector and cable routing, then release the belt tension so the belt comes off the pulley without strain. Check whether the drive pulley needs to move from the old motor to the new one, and set it at the same height so the belt runs straight. Re-tension the belt, home the printer and run a test print with long X moves to confirm smooth travel.
CreatBot D1000 X Axis Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 X Axis Motor — Questions
Is this the same motor my D1000 shipped with?
Yes. It is the genuine CreatBot X axis motor for the D1000, part 132010.
Can I use it on the Y axis?
No. Order the D1000 Y motor, part 132011, for the Y axis. Each axis has its own listed part.
Will it fit a D1000 HS?
No. The D1000 HS uses X motor 132003. Rev1 can confirm the right motor if you are unsure which model you have.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
