CreatBotD1000 Temperature SensorGenuine CreatBot Replacement Part
D1000 Temperature Sensor for D1000 and D600 Pro2

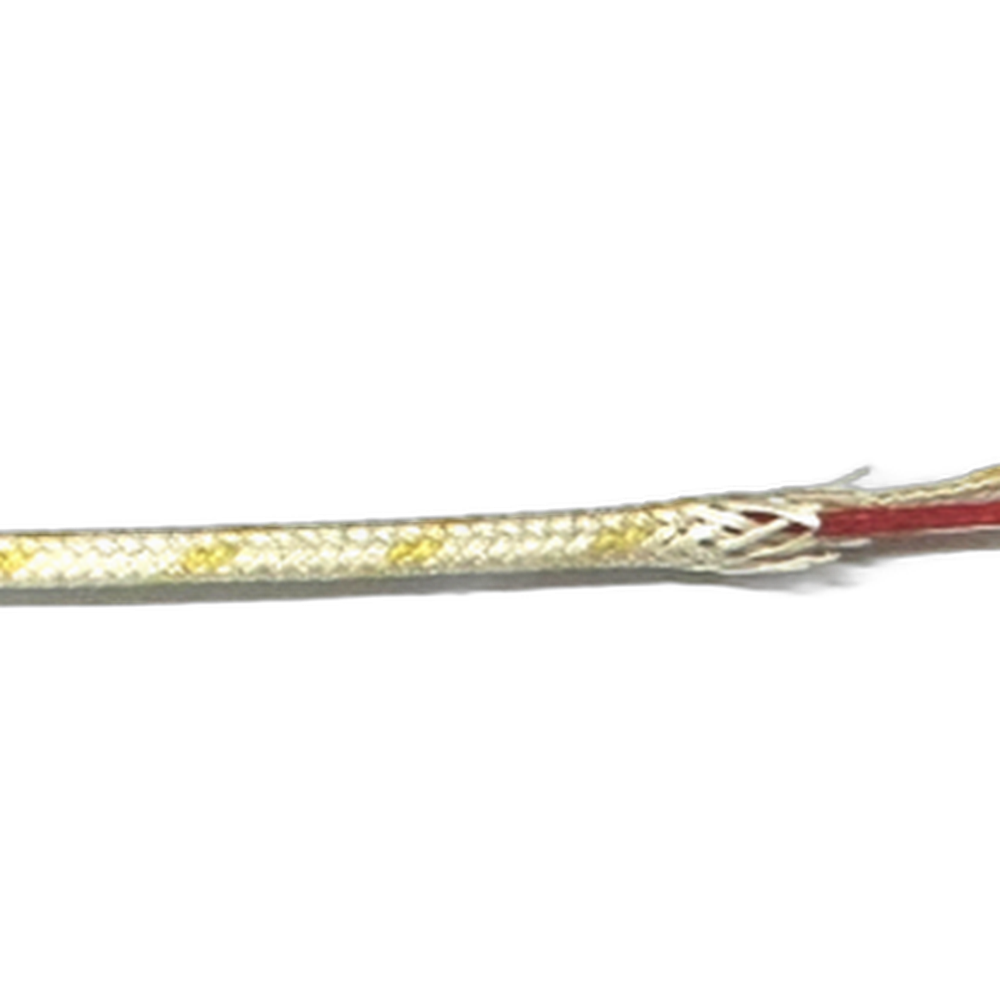

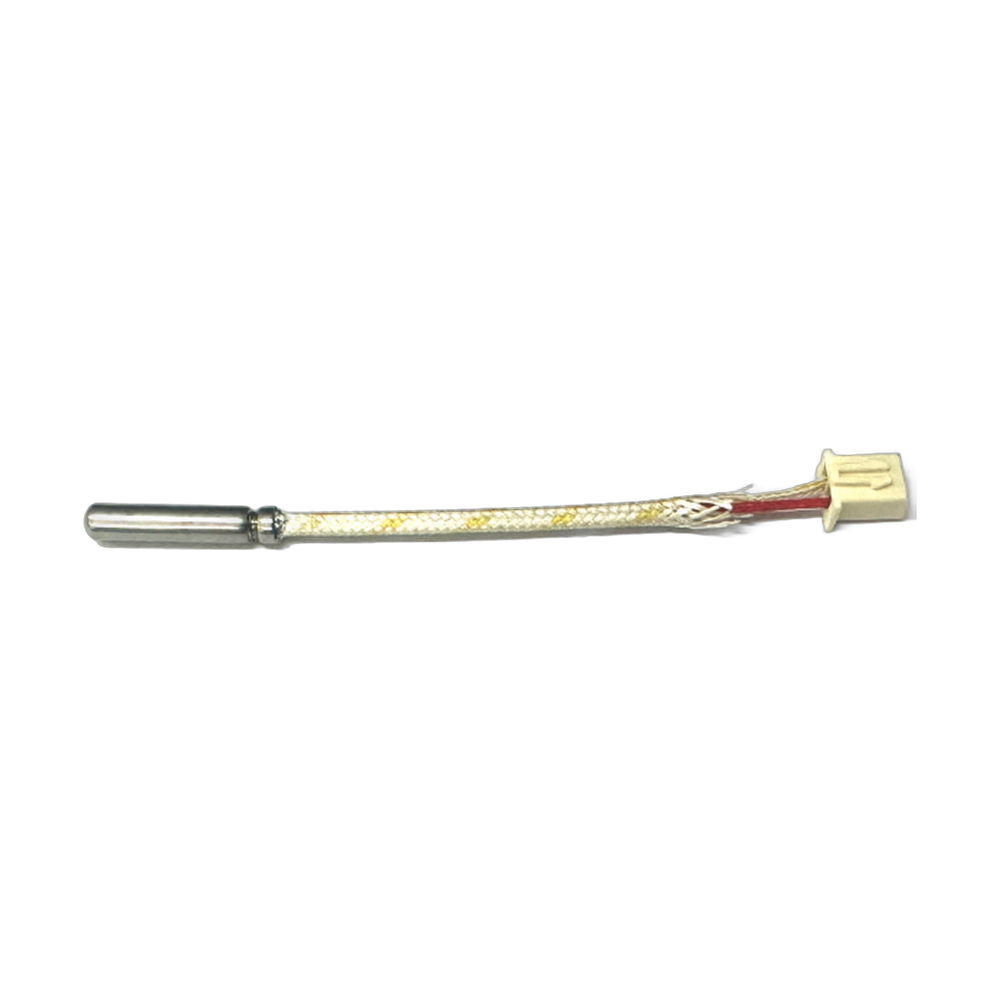

The CreatBot D1000 temperature sensor (part 106011) is an OEM replacement sensor for the CreatBot D1000 and D600 Pro2. A temperature sensor tells the control board how hot a heated component is, and the firmware uses that reading to switch the heater on and off. If the reading is wrong or unstable, the printer cannot hold temperature, and you see failed prints or heating errors. A genuine sensor gives the firmware the readings it was set up to expect. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Temperature Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the temperature sensor needs replacing
The displayed temperature jumps around or drops suddenly during a print.
The printer shows a heating or temperature error and stops the job.
The reading stays at room temperature while the heater is clearly working.
The sensor wire is pinched, frayed or broken near the sensor or the connector.
A loose connector or damaged cable can cause the same symptoms. Check the wiring first, and contact Rev1 support if you want help confirming the fault.
Compatible CreatBot 3D printers
CreatBot also lists part 106012 (D600 Pro2 temperature sensor) for these same two printers. Match the part to the sensor you are replacing, or send Rev1 your serial number and we will confirm which one you need. The HS models use different sensors: the D600 Pro2 HS and D1000 HS take part 106001 or 106002, and the D1000 Pro HS uses part 106015. The D600 and D600 Pro use part 106008.
Installation tips
Power the printer off, unplug it and let all heated parts cool completely before you touch the sensor. Photograph the sensor routing and its connector before removal so the new one goes back the same way. Seat the new sensor fully and secure it as the original was, since a loose sensor reads low and can cause the heater to overshoot. Keep the cable clear of moving parts. After installation, check that the reading matches room temperature, then watch the first heat-up closely before starting a full print.
CreatBot D1000 Temperature Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Temperature Sensor — Questions
Is this a genuine CreatBot part?
Yes. It is CreatBot part 106011, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my D1000 HS?
No. The D1000 HS and D600 Pro2 HS use part 106001 or 106002. Part 106011 is for the standard D1000 and D600 Pro2.
What should I check after replacing the sensor?
Confirm the printer reads a normal room temperature when cold, then heat up and make sure the temperature rises smoothly and holds steady at the setpoint.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
