CreatBotD1000 Pro HS X-Axis Motor DriveGenuine CreatBot Replacement Part
For the CreatBot D1000 Pro HS

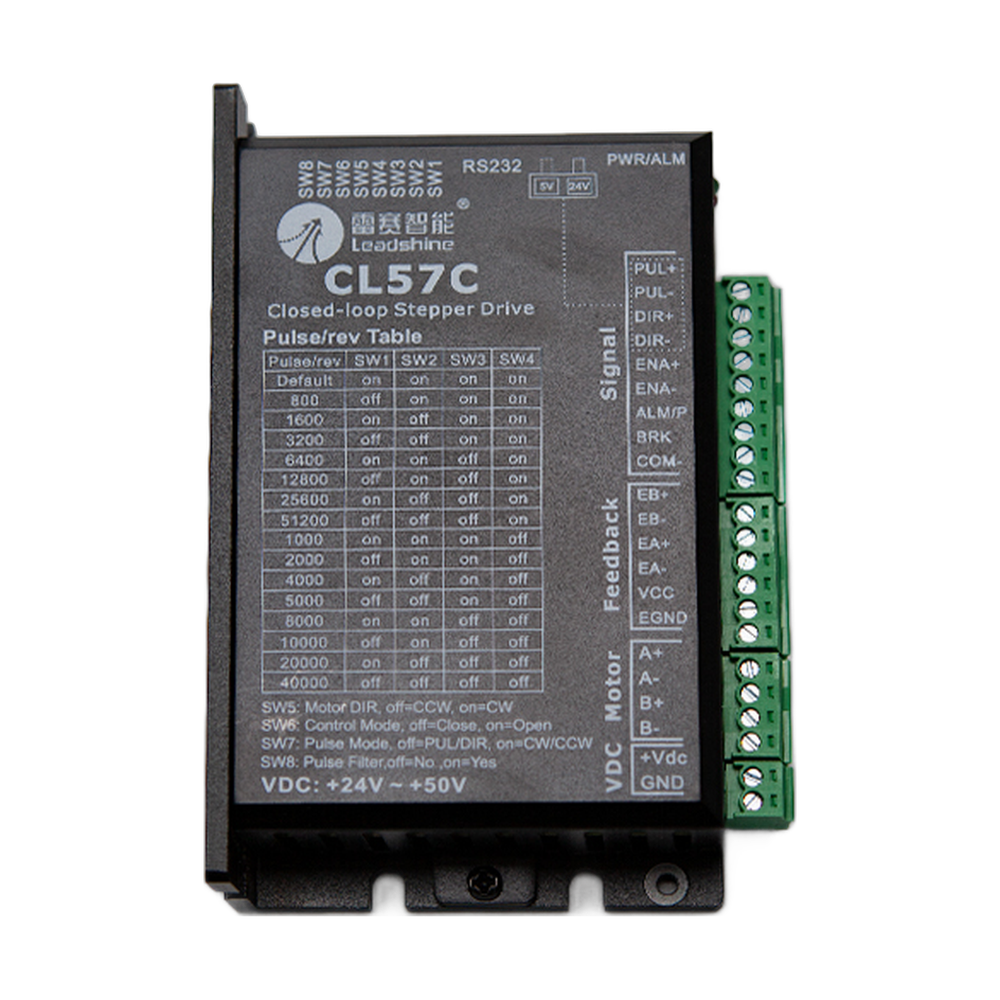

The CreatBot D1000 Pro HS X-axis motor drive (part 115019) is the OEM stepper motor driver for the X axis of the CreatBot D1000 Pro HS. It converts step and direction signals from the main control board into the current that drives the X motor, which moves the print head across the gantry. The D1000 Pro HS is built for fast printing at large scale, and that puts steady demand on the X axis driver. A genuine replacement matches the module the printer was built with. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Pro HS X-Axis Motor Drive, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X-axis motor drive may need replacing
Layer shifts in the X direction that continue after belts and pulleys are checked.
The X motor stalls, stutters or makes noise without moving.
The printer cannot home X, or reports a fault on the X axis.
The X motor works normally when tested on a known good driver.
Belt tension, a loose pulley and a damaged motor cable are worth checking before you replace the driver. Rev1 support can help.
Compatible CreatBot 3D printer
The D1000 Pro HS Y axis uses part 115020. The earlier D1000 HS uses a different X drive, part 115003, so check your model name before ordering.
Installation tips
Turn the printer off and unplug it before opening the electronics area. Photograph the existing driver and its cables, then remove it and fit the new module in the same orientation. Reconnect the X motor, power on and home the printer. A test print with fast X moves is the quickest way to confirm the repair.
CreatBot D1000 Pro HS X-Axis Motor Drive Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Pro HS X-Axis Motor Drive — Questions
Is this the same as the D1000 HS X drive?
No. The D1000 HS uses part 115003. This driver, part 115019, is for the D1000 Pro HS.
Does it fit the Y axis too?
CreatBot lists a separate Y-axis motor drive for the D1000 Pro HS, part 115020. Use the part for the axis you are repairing.
Is this a genuine CreatBot part?
Yes, CreatBot part 115019, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
