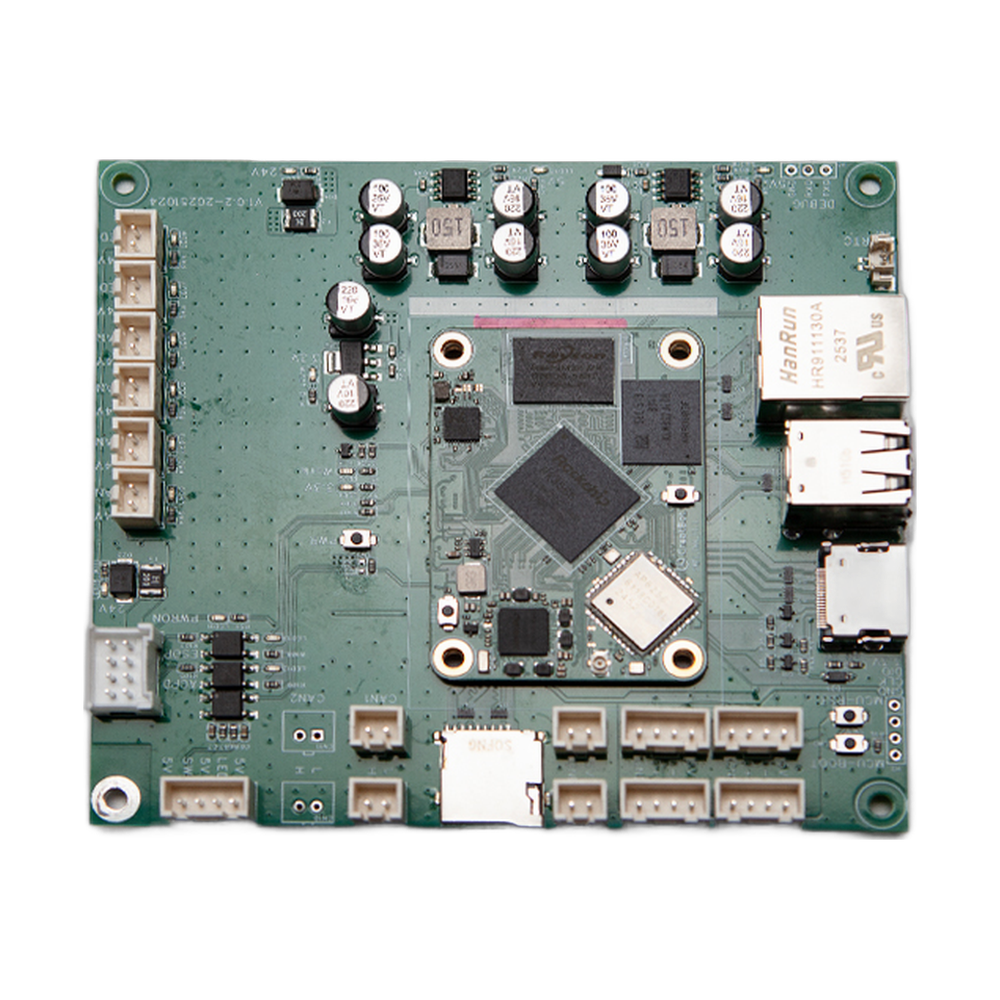

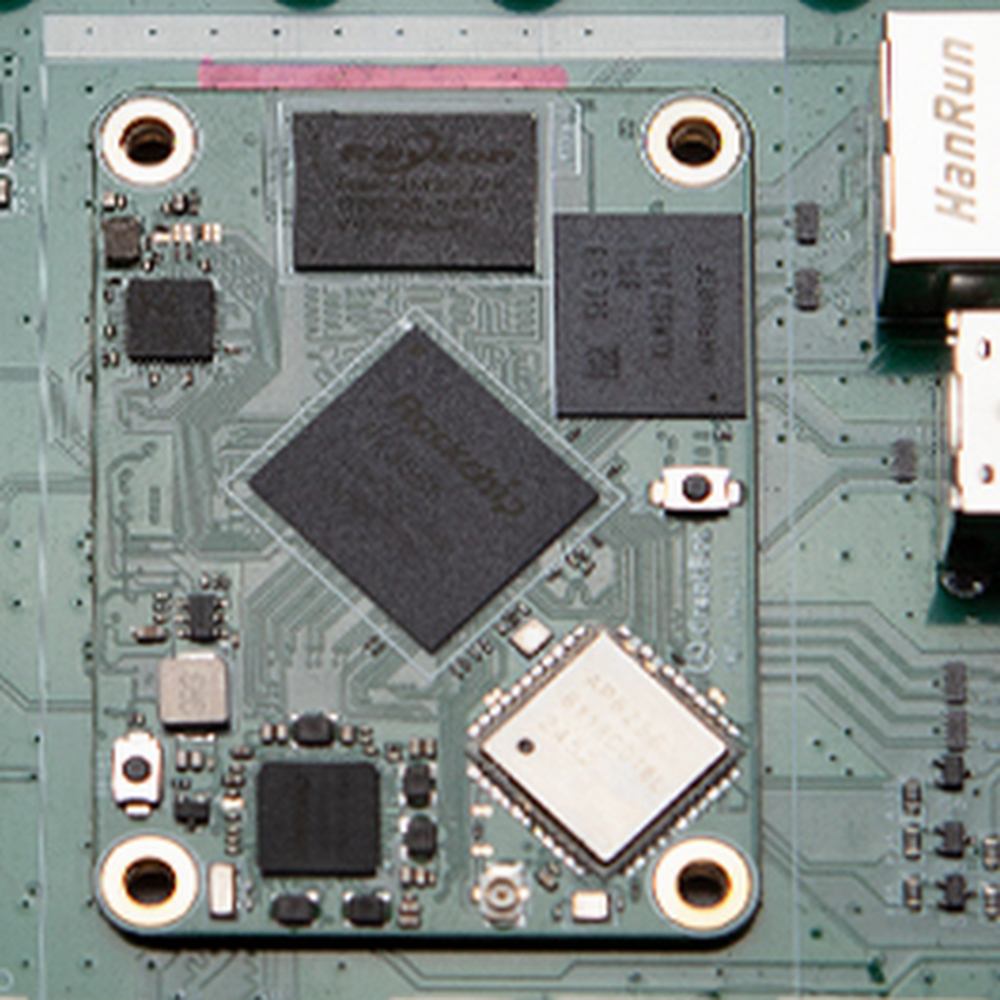

CreatBotD1000 Pro HS Klipper HostGenuine CreatBot Replacement Part
D1000 Pro HS Klipper Host for D400 HS and D1000 Pro HS
The CreatBot D1000 Pro HS Klipper host (part 111023) is the OEM host controller for the CreatBot D1000 Pro HS and D400 HS. These printers run Klipper firmware, which splits the work between two parts. The host runs the Klipper software: it processes the print file, plans the motion and sends precisely timed commands to the motherboard, which drives the motors, heaters and fans. The host typically also runs the printer's user interface. If it fails, the printer cannot accept or run a job. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Pro HS Klipper Host, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Klipper host may need replacing
The printer powers on but the touchscreen interface never finishes loading.
Print files cannot be loaded, or the interface freezes or restarts repeatedly.
The host does not start at all, or shows visible damage such as a burnt component or broken connector.
Storage, cable and power supply problems can cause similar symptoms. Contact Rev1 support before you order and we will help you confirm the host is at fault.
Compatible CreatBot 3D printers
The D600 Pro3 HS uses its own Klipper host, part 111022. On the D1000 Pro HS this host works with the motherboard, part 111021.
Host or motherboard?
On a Klipper printer, the two boards fail in different ways. Problems with the interface, file handling or network point toward the host. Problems with a single motor, heater or sensor while the interface works normally point toward the motherboard. If the host reports it cannot reach the controller, either part or the cable between them could be the cause. Rev1 support can help you test before you replace anything.
Installation
Power the printer off and unplug it. Photograph every connection to the host before removing it, including the link to the motherboard and the display, and use anti-static precautions. After fitting the new host, contact Rev1 support to confirm the software and printer configuration are correct for your model. If the printer is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot D1000 Pro HS Klipper Host Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Pro HS Klipper Host — Questions
Does it fit the D400 HS?
Yes. CreatBot lists this host for both the D400 HS and the D1000 Pro HS.
Will it work in a D600 Pro3 HS?
No. The D600 Pro3 HS uses Klipper host 111022.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 111023, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
