CreatBotD1000 MotherboardGenuine CreatBot Replacement Part
D1000 Motherboard (Main Control Board)

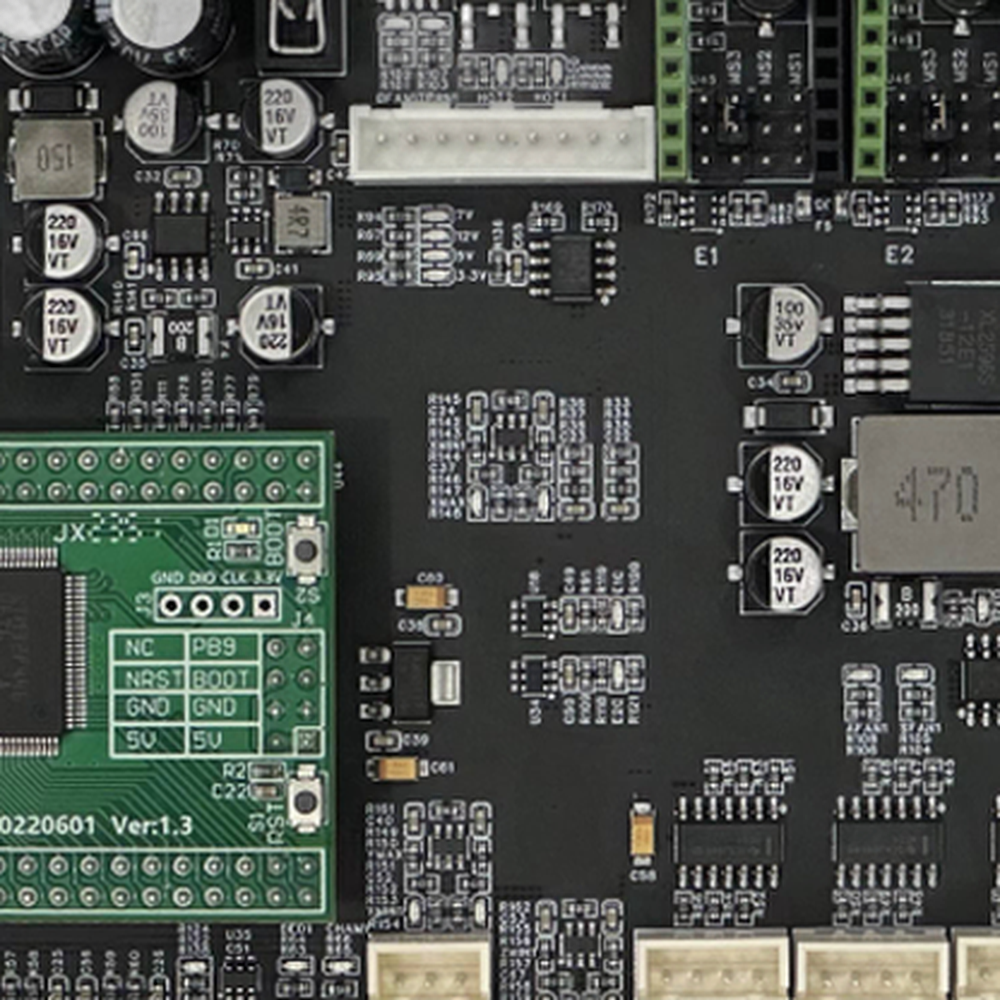

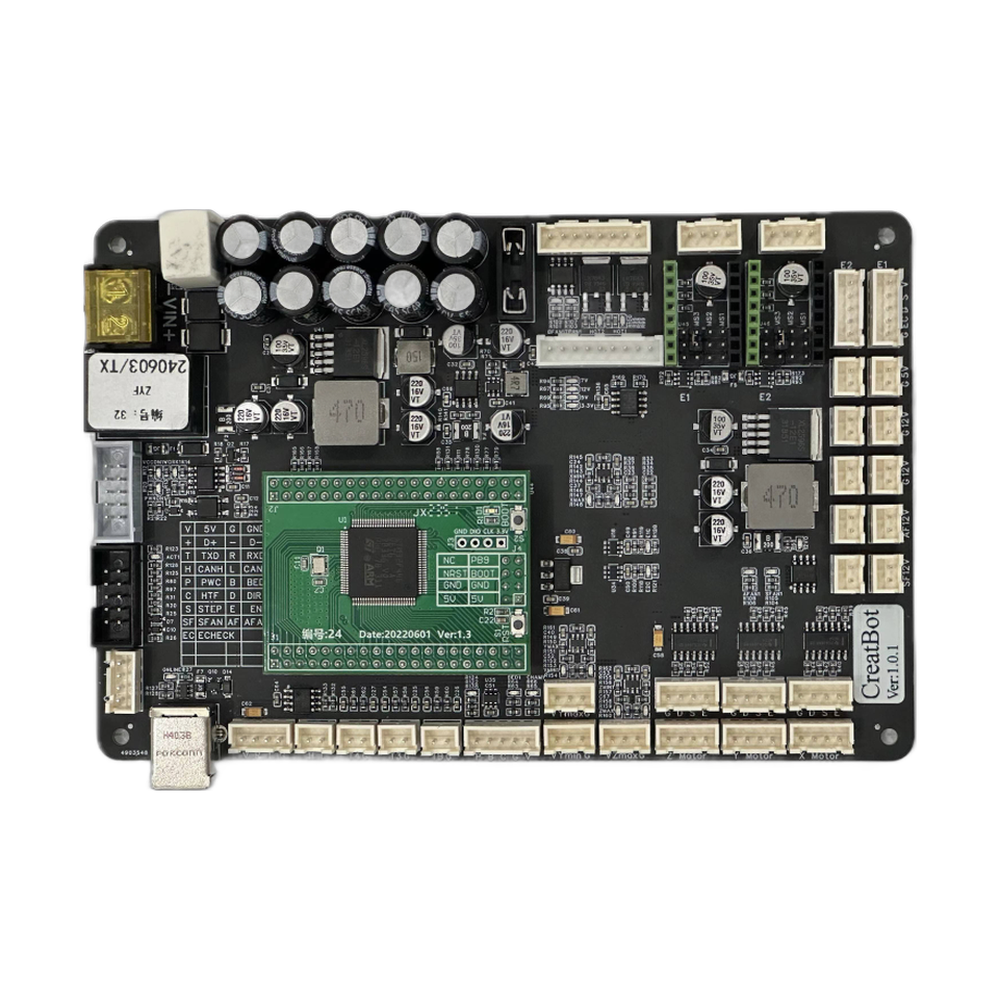

The CreatBot D1000 motherboard (part 111011) is the OEM main control board for the original CreatBot D1000 large format 3D printer. The motherboard is the center of the printer's electronics. It reads the print file, moves the motors, runs the heaters and fans, and monitors the sensors. Many D1000 printers are still in daily service, and when the board fails, a genuine CreatBot replacement keeps one of them running as it was designed to. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why choose a genuine D1000 board
As the original, so the existing wiring plugs straight in.
The board is designed for the D1000's motors, heaters and sensors.
We can check the firmware with you after installation and help troubleshoot.
Signs the motherboard may have failed
The printer does not boot, or the display stays blank.
A motor, heater or fan stops responding while the component itself tests good.
Burnt components or a damaged connector on the board.
Power supply faults and damaged cables can look similar. Contact Rev1 support before ordering and we will help you narrow it down.
Compatible CreatBot 3D printer
The D1000 HS uses a different board (111002), and so does the D1000 Pro HS (111021). The D600 Pro2 uses 111010.
Installation
Power the printer off and unplug it before opening the electronics bay. Photograph the board and label each cable before disconnecting it, then move connections across one at a time. Use anti-static precautions. After installation, confirm the firmware version with Rev1 support, then test homing, heating and a short print. If your printer is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot D1000 Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 Motherboard — Questions
Does it fit the D1000 HS?
No. The D1000 HS uses part 111002.
How do I know whether I have a D1000 or a D1000 HS?
Check the model on the printer's label or touchscreen. If you are unsure, send Rev1 a photo and we will confirm.
Can Rev1 install the board?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test it.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
