CreatBotD1000 HS Z MotorGenuine CreatBot Replacement Part

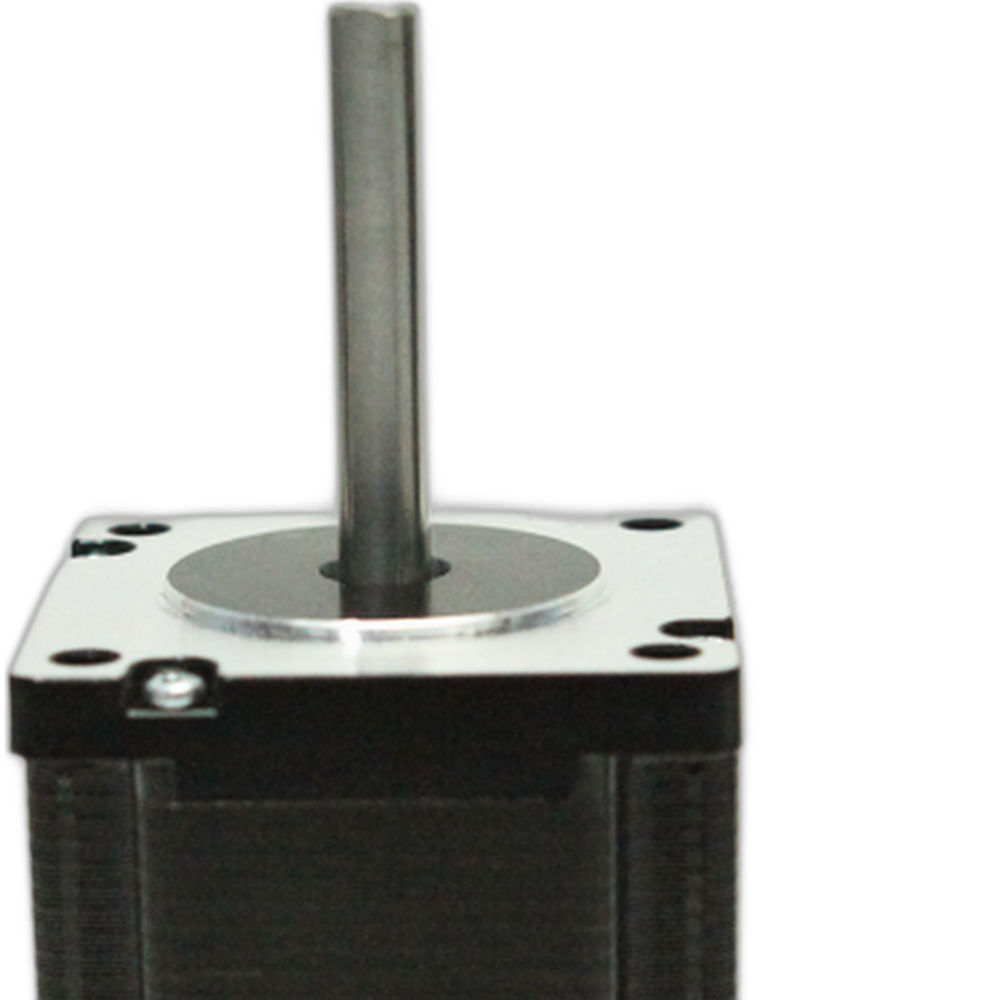

D1000 HS Z-Axis Motor
The CreatBot D1000 HS Z motor (part 131004) is the OEM Z-axis motor for the CreatBot D1000 HS. The Z axis controls the vertical position between the nozzle and the build plate, which is what sets every layer height. On a printer as tall as the D1000 HS, a single print can include thousands of Z moves, and each one has to be accurate for the walls to come out straight and smooth. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
What a healthy Z motor gives you
Consistent Z steps mean uniform layer lines and clean vertical surfaces.
Missed Z steps make parts come out short or compressed.
The leveling routine depends on precise Z movement.
Signs the Z motor may need replacing
The Z axis does not move, moves in jerks or stalls partway.
Grinding or buzzing from the Z motor, especially under load.
Banding or squashed layers that remain after the lead screw and couplings have been checked.
A damaged shaft, motor body or connector.
A dry or dirty lead screw, a loose coupling or a damaged cable can look like a motor fault. Check those first, and contact Rev1 support if you want help confirming the cause.
Compatible CreatBot 3D printer
The D1000 HS extruder motors are parts 131005 (left) and 131006 (right). The standard D1000 uses a different Z motor, part 131029.
Installation tips
Power the printer off and unplug it. Support the Z axis so nothing can drop while the motor is out. Photograph the motor, coupling and cable before removal. Fit the new motor, tighten the coupling to the lead screw evenly, reconnect, then home the printer, run the leveling routine and print a test part to check layer consistency.
CreatBot D1000 HS Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS Z Motor — Questions
Does the D1000 Z motor fit the D1000 HS?
No. The D1000 HS uses part 131004 and the D1000 uses part 131029.
Can Rev1 replace the motor for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose and replace Z-axis parts.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 131004, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
