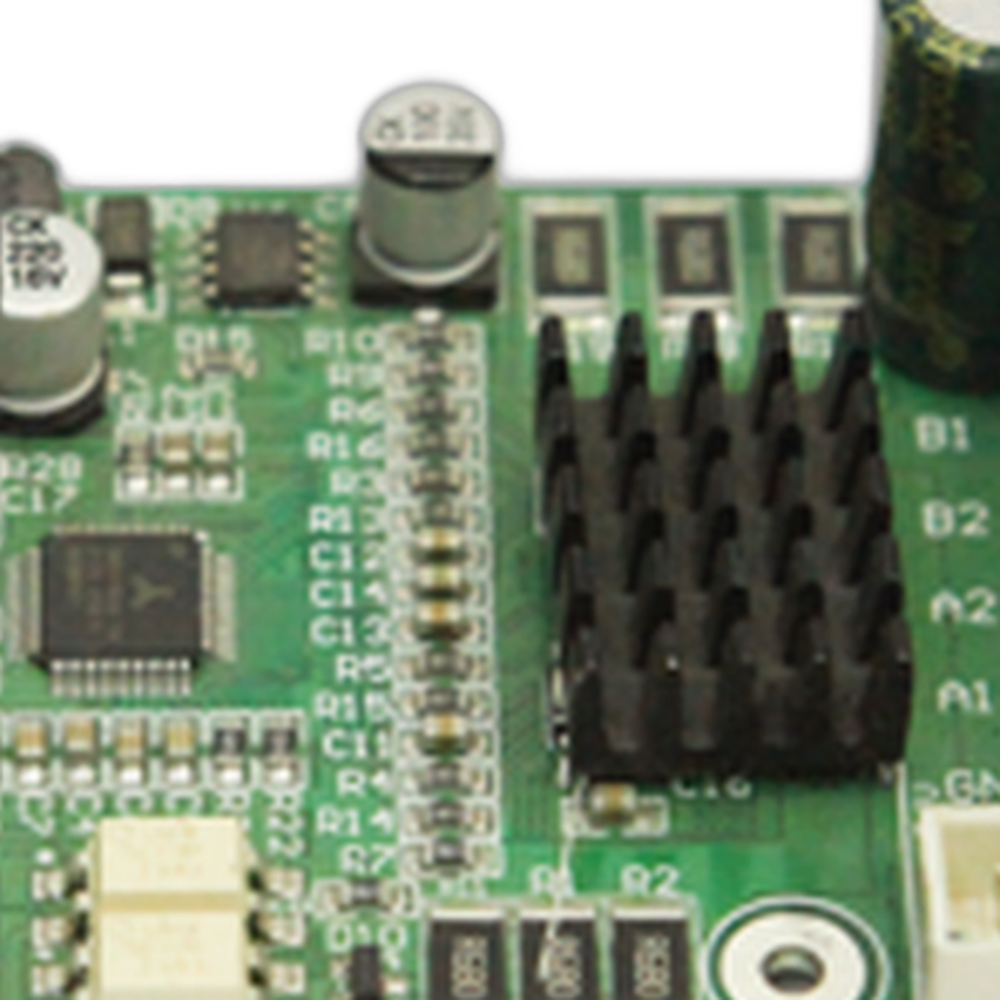

CreatBotD1000 HS Z DriveGenuine CreatBot Replacement Part

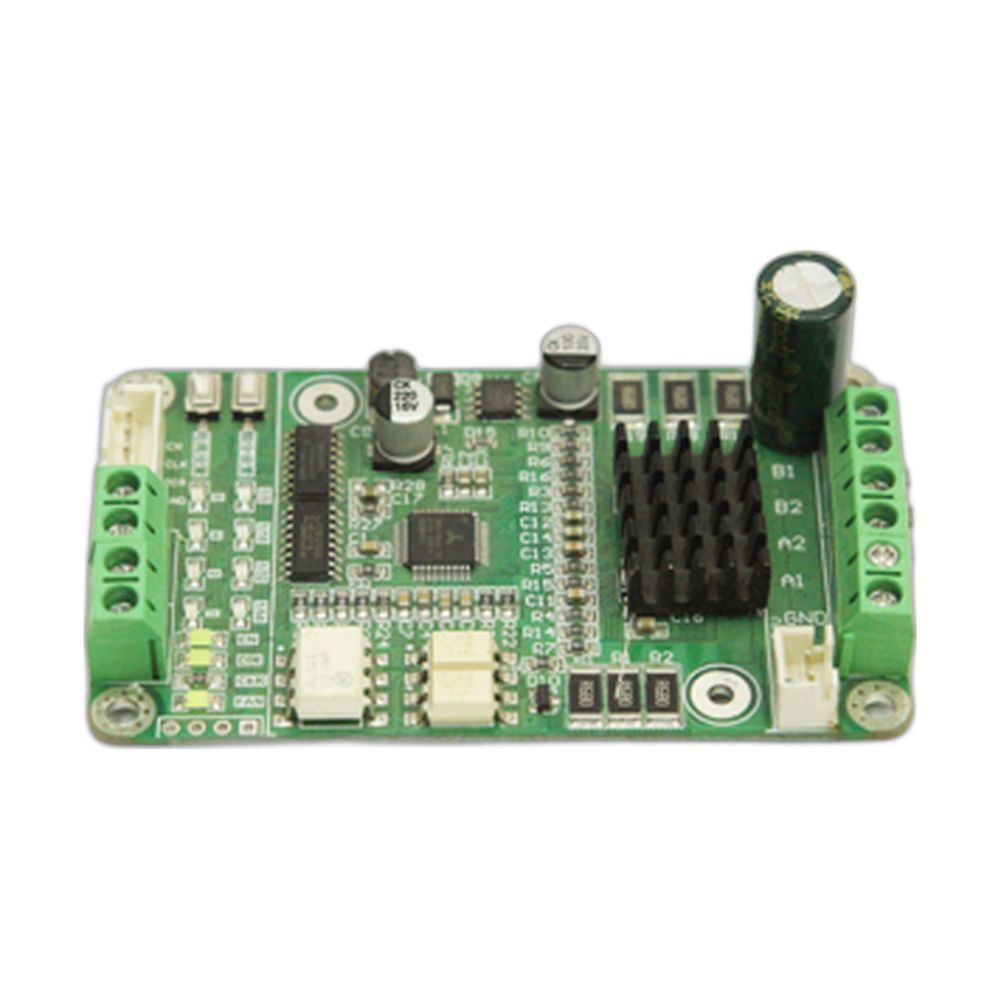

D1000 HS Z Drive (Z-Axis Stepper Driver)
The CreatBot D1000 HS Z drive (part 115005) is the OEM stepper motor driver for the Z axis of the CreatBot D1000 HS. The Z axis sets layer height: after every layer it steps the build plate or gantry by a precise amount, and on a printer as tall as the D1000 HS a single print can involve thousands of those steps. The Z drive turns the control board's commands into motor current. If it misbehaves, layer lines turn uneven and parts come out the wrong height. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS Z Drive, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z drive may need replacing
Uneven or banded layer lines that do not change with slicer settings.
Parts that are shorter or taller than designed.
The Z axis fails to move, moves erratically or the motor only hums.
Z homing or leveling stops with an error.
A binding lead screw, a loose coupler or a damaged cable can produce the same symptoms. Check the Z mechanics and wiring first, or ask Rev1 support to help.
Compatible CreatBot 3D printer
The D1000 HS uses separate driver parts for X (115003), Y (115004), Z (115005) and E (115006). Other printers use their own Z drivers, for example the D600 Pro2 (115001).
Installation tips
Before you power down, make sure nothing is resting on the build plate. Switch off and unplug the printer, then open the electronics bay. Note the orientation of the old Z driver, swap in the new module the same way round and reconnect the Z motor cable. Home the printer, run the leveling routine and print a tall test part to confirm consistent layers.
CreatBot D1000 HS Z Drive Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS Z Drive — Questions
Will it fit the D600 Pro2?
No. CreatBot lists part 115001 for the D600 Pro2 Z axis. This driver is for the D1000 HS.
Can a Z drive fault look like a leveling problem?
Yes. Erratic Z moves affect the first layer as well as layer height. If re-leveling does not help, check the Z drive.
Is this a genuine CreatBot part?
Yes, CreatBot part 115005, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
