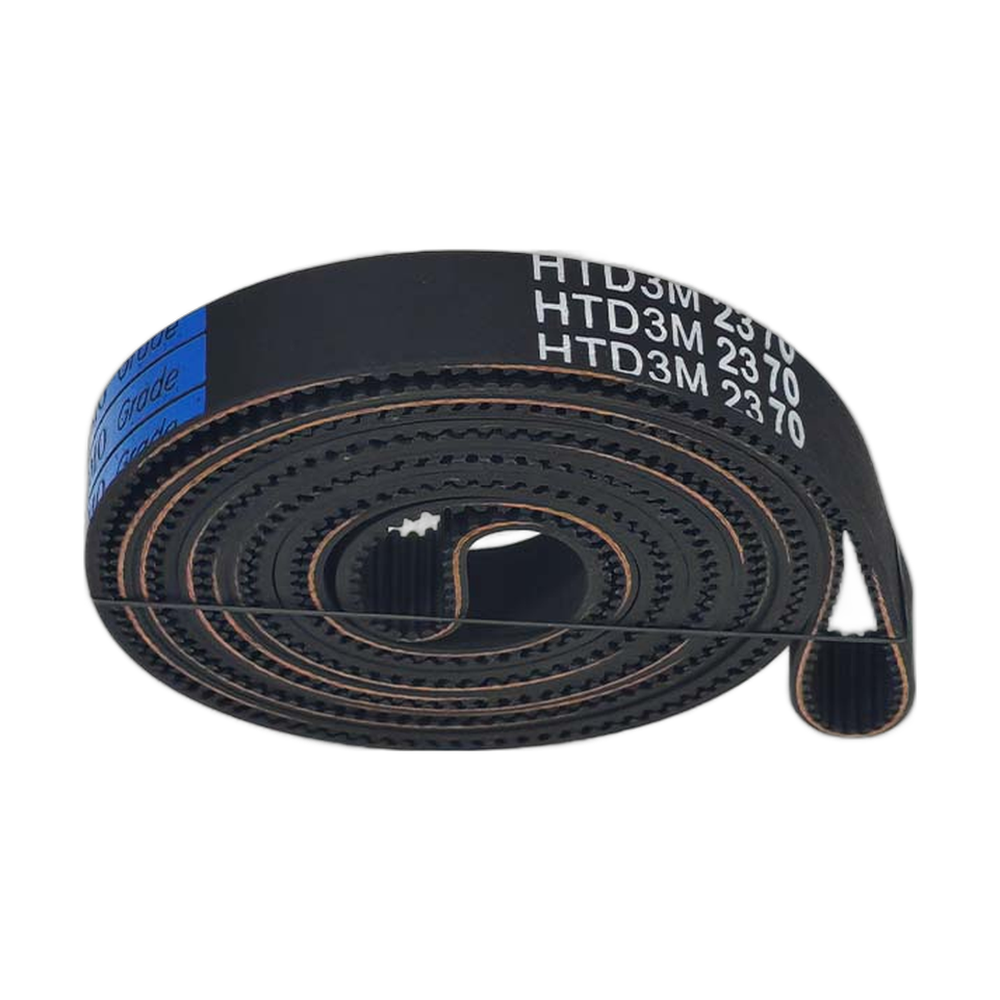

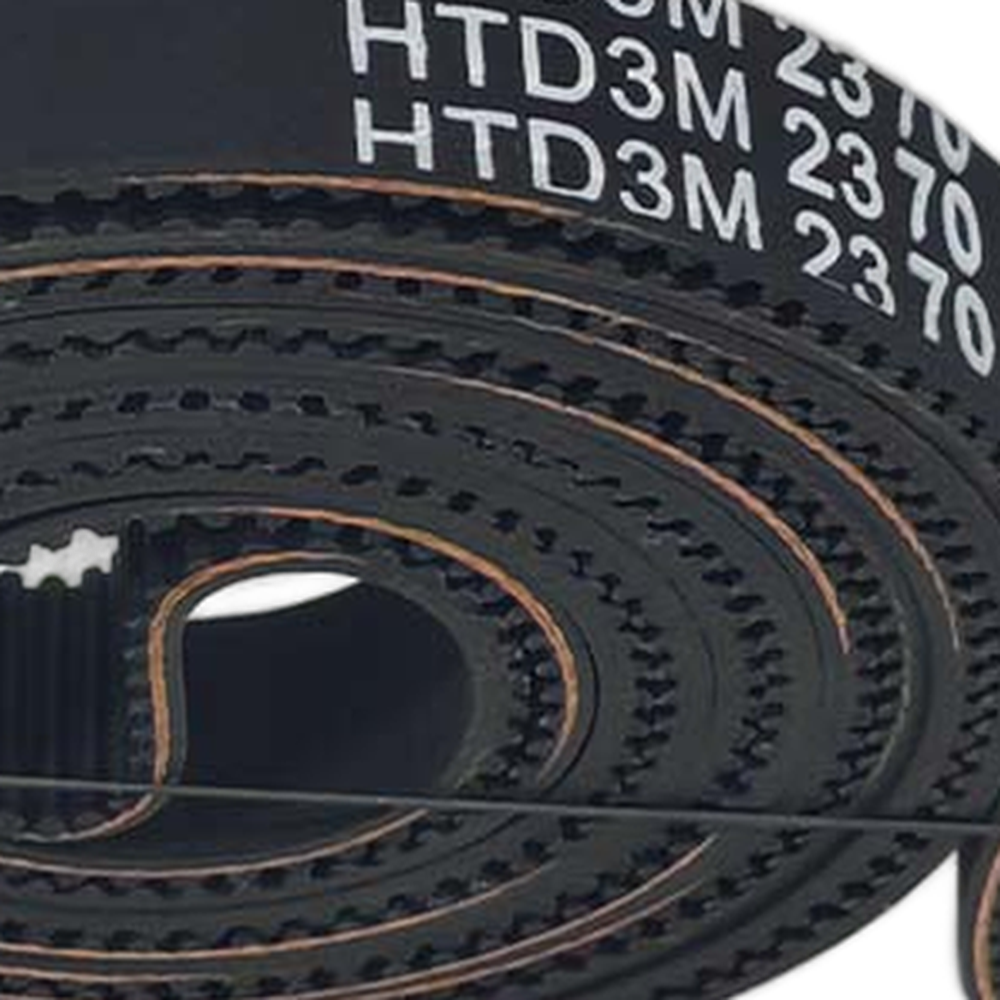

CreatBotD1000 HS Z-Axis Timing BeltGenuine CreatBot Replacement Part
For the CreatBot D1000 HS
The CreatBot D1000 HS Z-axis timing belt (part 143024) is the OEM timing belt in the Z drive of the CreatBot D1000 HS. Where a Z axis is driven at more than one point, a timing belt links those points so they move together. When this belt slips or stretches, the Z drive falls out of step, the bed or gantry tilts, and leveling can no longer correct it. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS Z-Axis Timing Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z-axis timing belt needs replacing
The bed will not stay level from one print to the next.
Leveling reports a growing tilt from one side to the other.
First layers are uneven across the plate even after a fresh level.
The belt is cracked, worn, missing teeth or slack.
Compatible CreatBot 3D printer
The D1000 HS also uses a separate Z-axis motor belt, part 143023. The standard D1000 uses Z-axis timing belt 143019, which does not fit the HS.
Getting the Z drive back in step
A timing belt swap is only successful if every point of the Z drive ends up where it started. Before removal, bring the bed or gantry to a known height, support it, and mark each pulley against a fixed reference. Fit the new belt with all marks aligned. If the drive does slip out of step during the job, the bed must be trammed mechanically before automatic leveling will give good results.
Installation tips
Turn the printer off and unplug it. Support the Z assembly so it cannot move. Release the tensioner, swap the belt with the pulley marks aligned, re-tension it and turn the drive slowly by hand while you confirm that all points move together. Home the printer, run leveling and print a full plate first layer to check.
CreatBot D1000 HS Z-Axis Timing Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS Z-Axis Timing Belt — Questions
How is this different from the Z-axis motor belt?
The motor belt (143023) carries drive from the Z motor. This timing belt (143024) keeps the Z drive synchronized.
Will the D1000 Z timing belt fit?
No. The D1000 uses part 143019.
Can Rev1 handle the replacement?
Yes. Rev1 is a certified CreatBot service provider and can replace the belt, tram the bed and confirm the first layer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
