CreatBotD1000 HS Z-Axis Motor BeltGenuine CreatBot Replacement Part
For the CreatBot D1000 HS

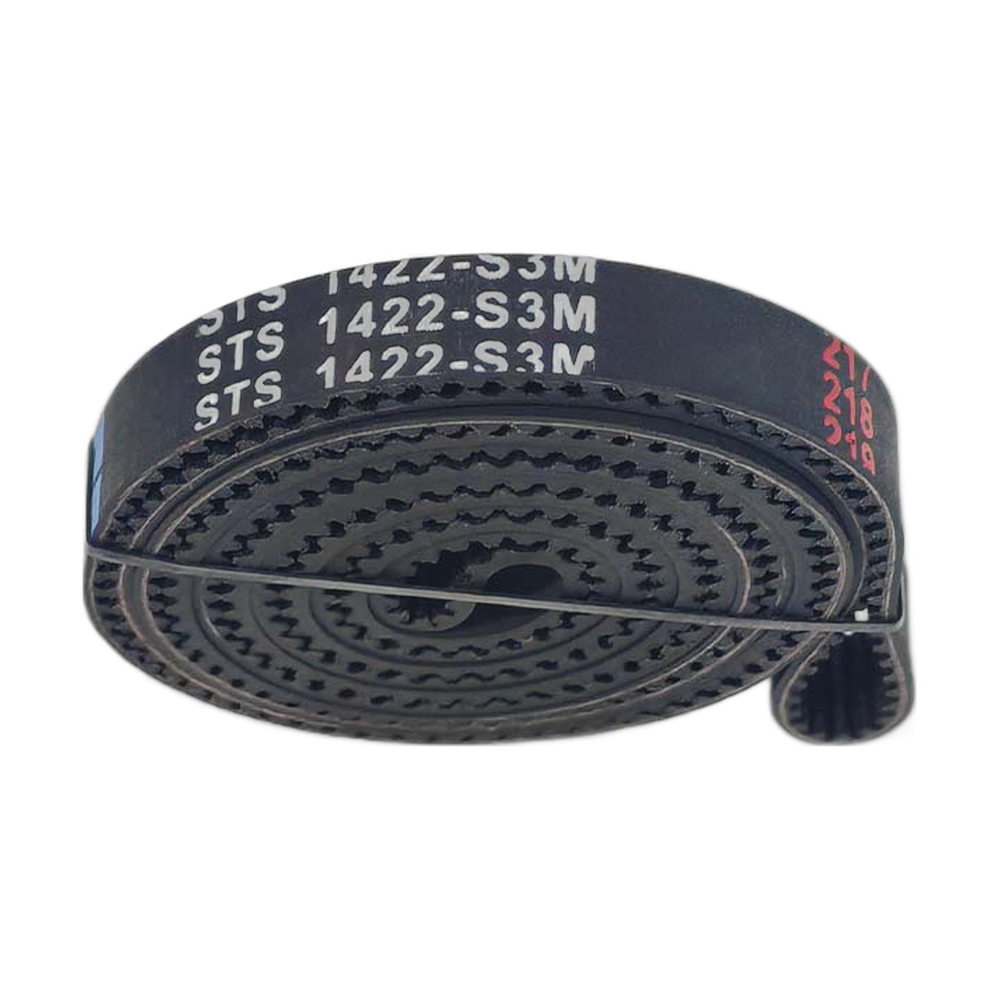

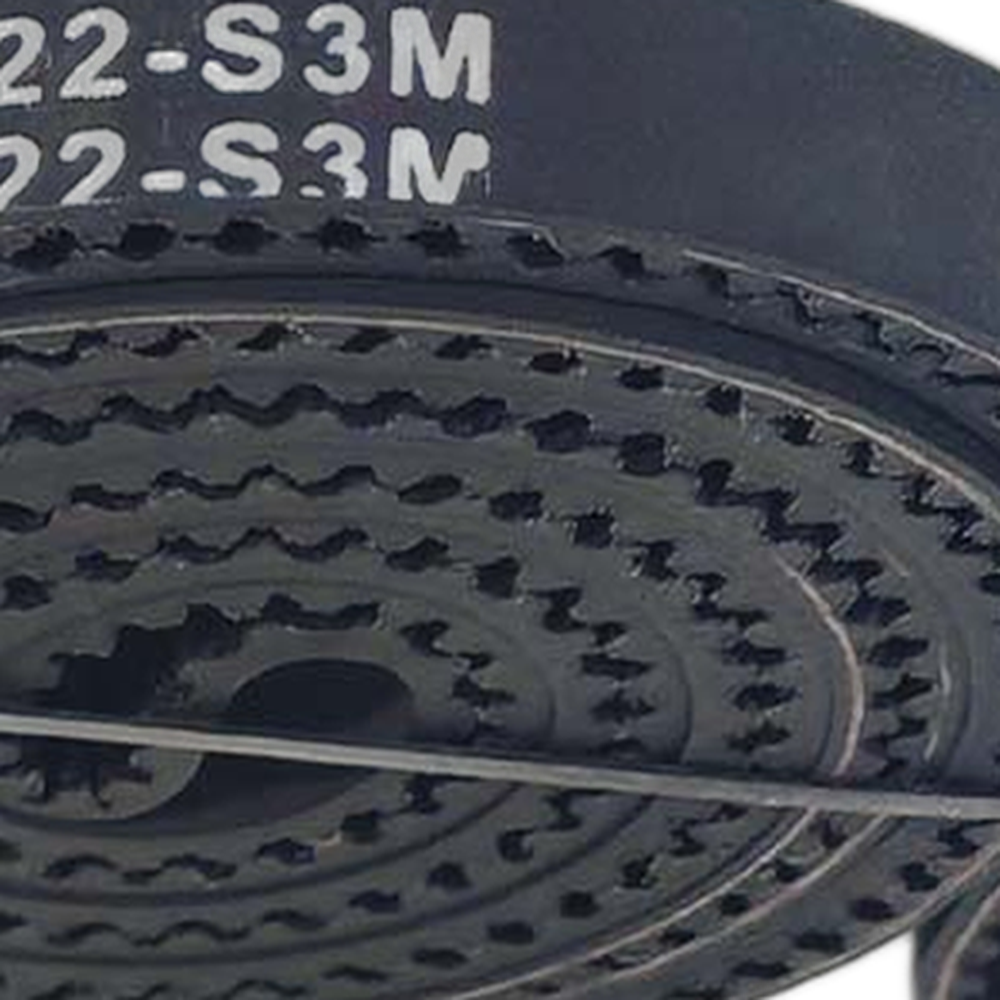

The CreatBot D1000 HS Z-axis motor belt (part 143023) is the OEM belt that connects the Z motor to the Z drive on the CreatBot D1000 HS. Each layer change depends on this belt moving the Z axis by exactly the commanded amount. If it slips or wears, layer heights become inconsistent and part heights drift, which is especially visible on the tall parts the D1000 HS is built for. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS Z-Axis Motor Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z-axis motor belt needs replacing
Inconsistent layer lines or visible banding on vertical walls.
The Z motor runs but Z movement is jerky, delayed or missing.
Homing in Z is unreliable or ends at a different height each time.
The belt shows cracks, glazing or missing teeth, or has lost tension.
Compatible CreatBot 3D printer
The D1000 HS Z drive also uses a Z-axis timing belt, part 143024. The standard D1000 has its own Z-axis motor belt, part 143018. X and Y belts for the D1000 HS are 143020, 143021 and 143022.
Diagnosing a Z drive problem
Watch the Z drive while the printer moves the axis. If the motor pulley turns and the belt skips over it, the motor belt is the problem. If everything turns but one side of the bed or gantry ends up out of level, look at the Z-axis timing belt (143024) instead. A loose motor pulley can also cause slipping, so check its set screw first.
Installation tips
Power the printer off and unplug it. Support the Z assembly before you remove tension, so nothing can drop when the drive is disconnected. Release the motor mount, fit the new belt with the teeth fully engaged, re-tension it and turn the drive by hand. Home the printer, re-level the bed and print a short test part to confirm layer height.
CreatBot D1000 HS Z-Axis Motor Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS Z-Axis Motor Belt — Questions
Which Z belt do I need?
The motor belt (143023) links the Z motor to the drive. The timing belt (143024) is separate. Rev1 support can help you identify which one is worn.
Will the D1000 Z motor belt fit?
No. The standard D1000 uses part 143018.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 143023, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
