CreatBotD1000 HS Y MotorGenuine CreatBot Replacement Part

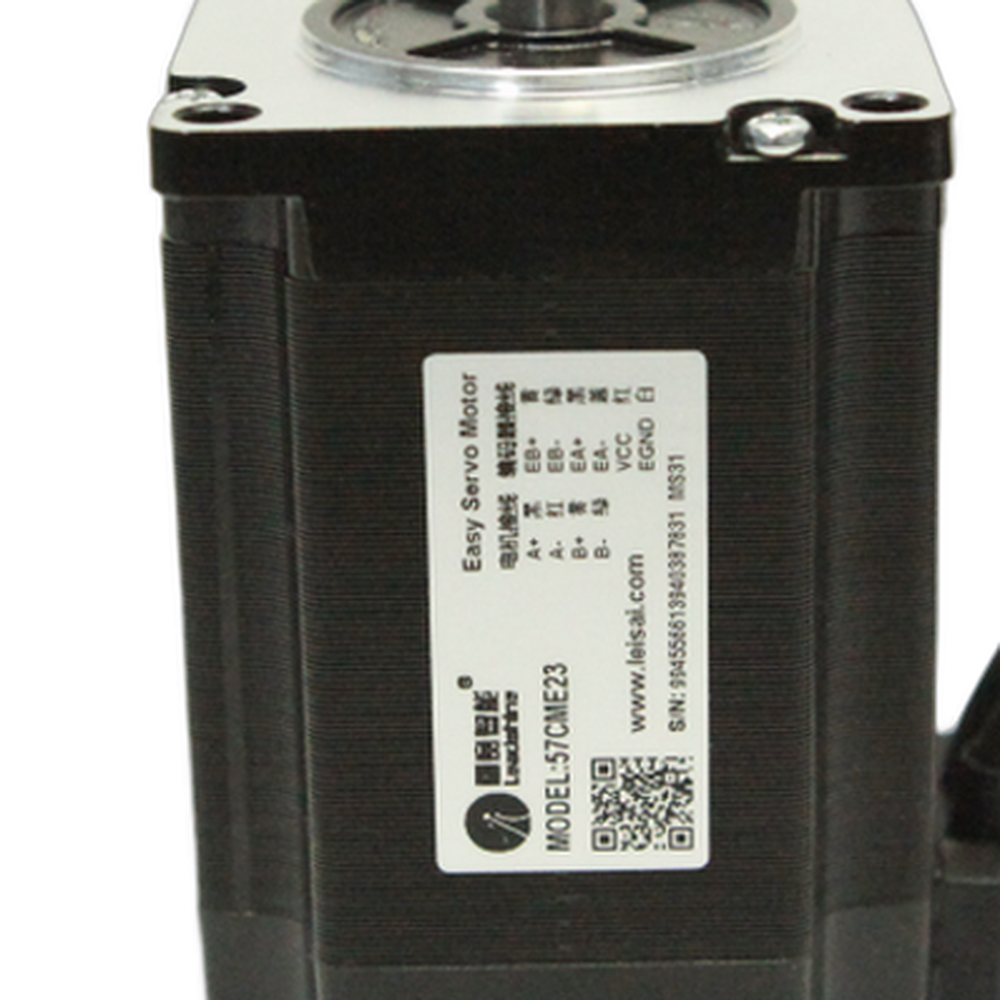

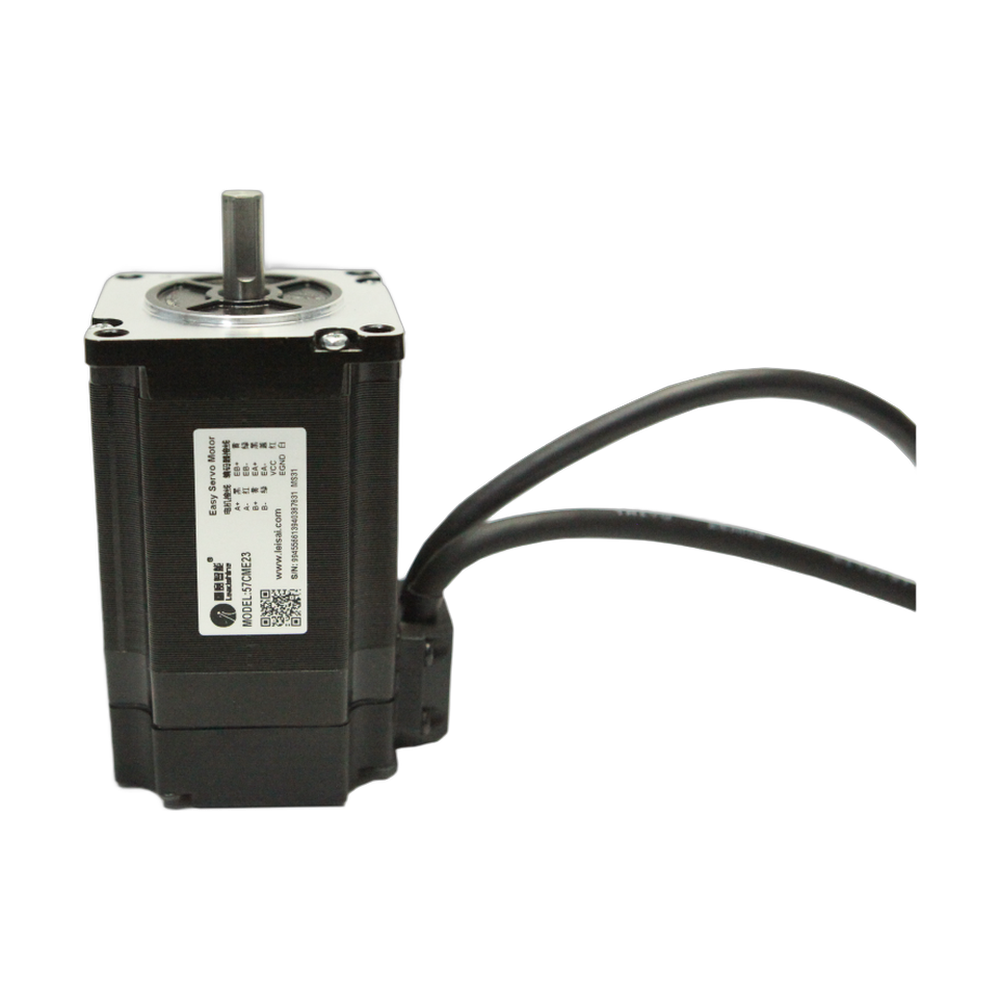

D1000 HS Y Motor (Y-Axis Motor)
The CreatBot D1000 HS Y motor (part 132004) is the original Y-axis motor for the CreatBot D1000 HS. It drives front to back motion across the printer's large build area. At high speed and over long distances the Y axis carries real load, and a motor that is wearing out tends to slip on the longest, fastest moves first. The result is a front to back layer shift that ruins the part from that layer up. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS Y Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace with the genuine CreatBot Y motor
Mounts in the original position and connects to the original cable.
So stock firmware and speed settings stay valid.
Across the full build area on long, large prints.
Signs the Y motor is failing
Front to back layer shifts, often on fast or long moves.
The Y axis does not home, or stalls partway through a move.
Grinding, clicking or a high pitched whine from the Y motor.
Belts, pulleys and cables cause many Y axis faults too. Rule those out first, or contact Rev1 support for help.
Compatible CreatBot 3D printer
The D1000 HS X motor is part 132003. Other models use their own Y motors: the D600 Pro2 HS uses closed-loop motor 132002, the D1000 uses 132011 and the F1000 uses 132013.
Installation tips
Switch the printer off and unplug it. Photograph the wiring and mark the pulley position on the motor shaft. Release belt tension, remove the old motor and fit the new one in the same orientation, with the pulley in the same position so the belt runs true. Re-tension the belt, move the axis by hand over its full travel, then home the printer and print a calibration part to check Y dimensions.
CreatBot D1000 HS Y Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS Y Motor — Questions
Will it fit the original D1000?
No. The D1000 uses Y motor 132011.
Can I use the X motor in the Y position?
Order the part for the axis you are repairing: 132004 for Y and 132003 for X.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can fit the genuine motor and test the printer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
