CreatBotD1000 HS Y DriveGenuine CreatBot Replacement Part

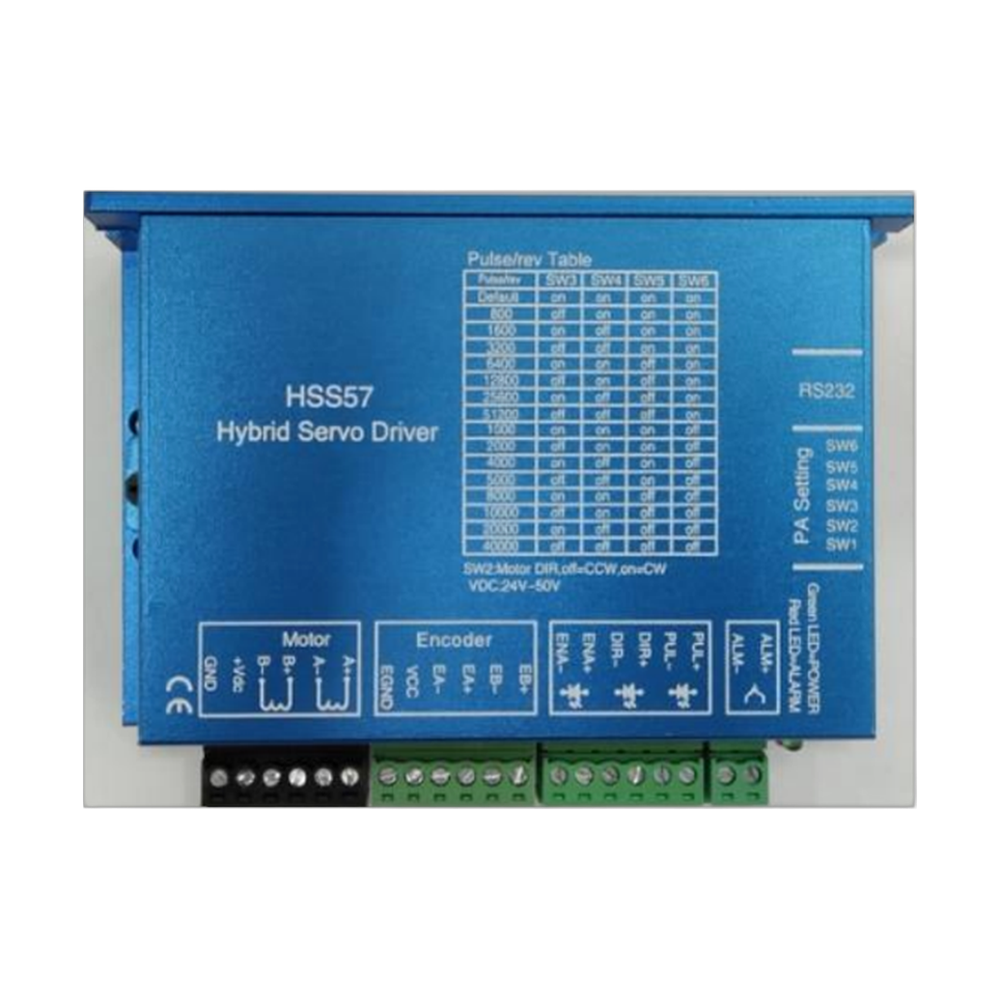

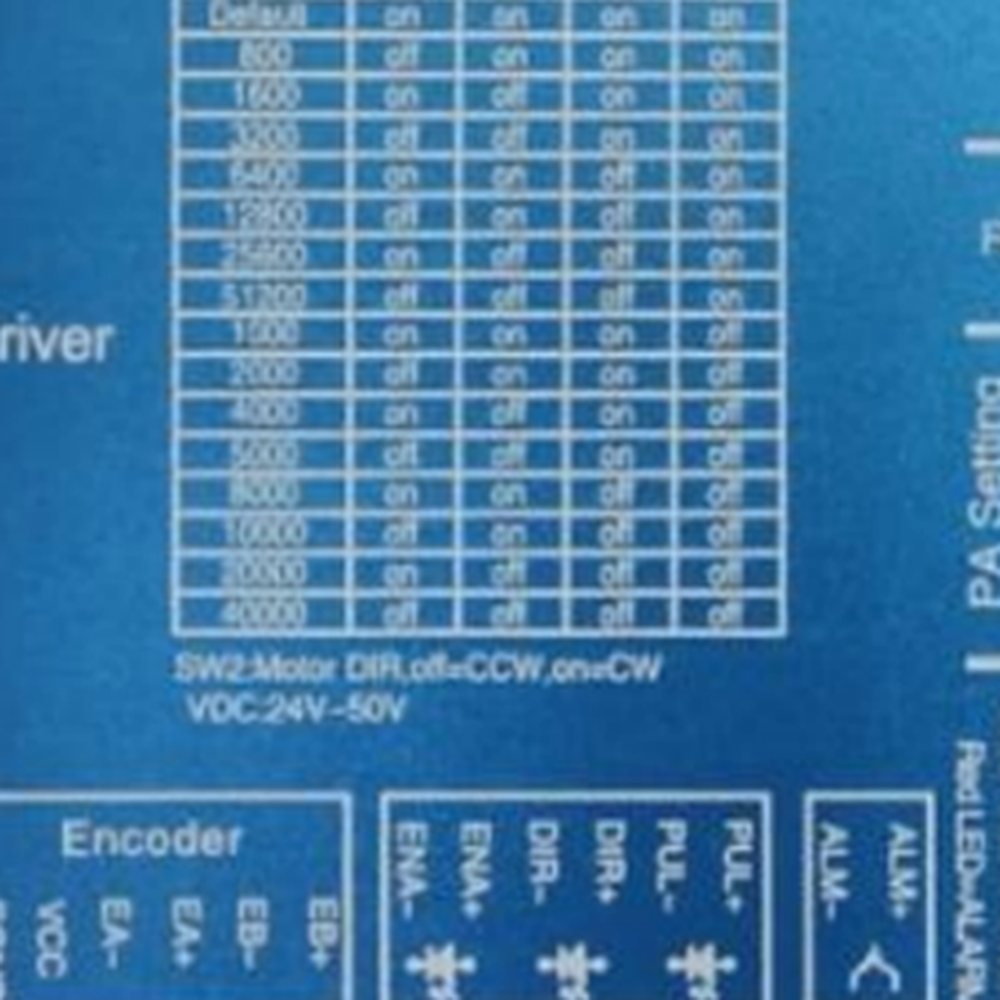

D1000 HS Y Drive (Y-Axis Stepper Driver)
The CreatBot D1000 HS Y drive (part 115004) is the OEM stepper motor driver for the Y axis of the CreatBot D1000 HS 3D printer. The driver sits between the main control board and the Y motor: the board says how far and which way to move, and the driver delivers the current that makes the motor do it. A healthy Y drive is what keeps the front to back dimension of every layer in register on a printer of this size. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS Y Drive, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
What a failing Y drive looks like
Layers shift front to back partway through a print.
The Y axis loses position, crashes into an end stop or will not home.
The Y motor hums or vibrates without moving smoothly.
Faults move with the driver: the Y motor runs fine from another known good channel.
Rule these out first
Many Y axis problems are mechanical. Check belt tension, pulley set screws, rails or rods for debris, and the motor cable and connector. If the mechanics are sound and the fault follows the driver, the Y drive is the likely cause. Rev1 support can help you work through it.
Compatible CreatBot 3D printer
The other D1000 HS axis drivers are X (115003), Z (115005) and E (115006). The D1000 Pro HS uses its own Y-axis driver, part 115020.
Installation tips
Power down and unplug the printer. Mark or photograph the orientation of the old driver, remove it and fit the new one in exactly the same position. Reconnect the Y motor cable, home all axes and run a test print that uses the full depth of the bed.
CreatBot D1000 HS Y Drive Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS Y Drive — Questions
Does it fit the D1000 Pro HS?
No. The D1000 Pro HS Y axis uses part 115020.
Should I replace all the drivers at once?
Not usually. Replace the driver that has failed, and keep a spare if downtime on a large job is a concern.
Is this a genuine CreatBot part?
Yes, CreatBot part 115004, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
