CreatBotD1000 HS X MotorGenuine CreatBot Replacement Part
D1000 HS X Motor (X-Axis Motor)

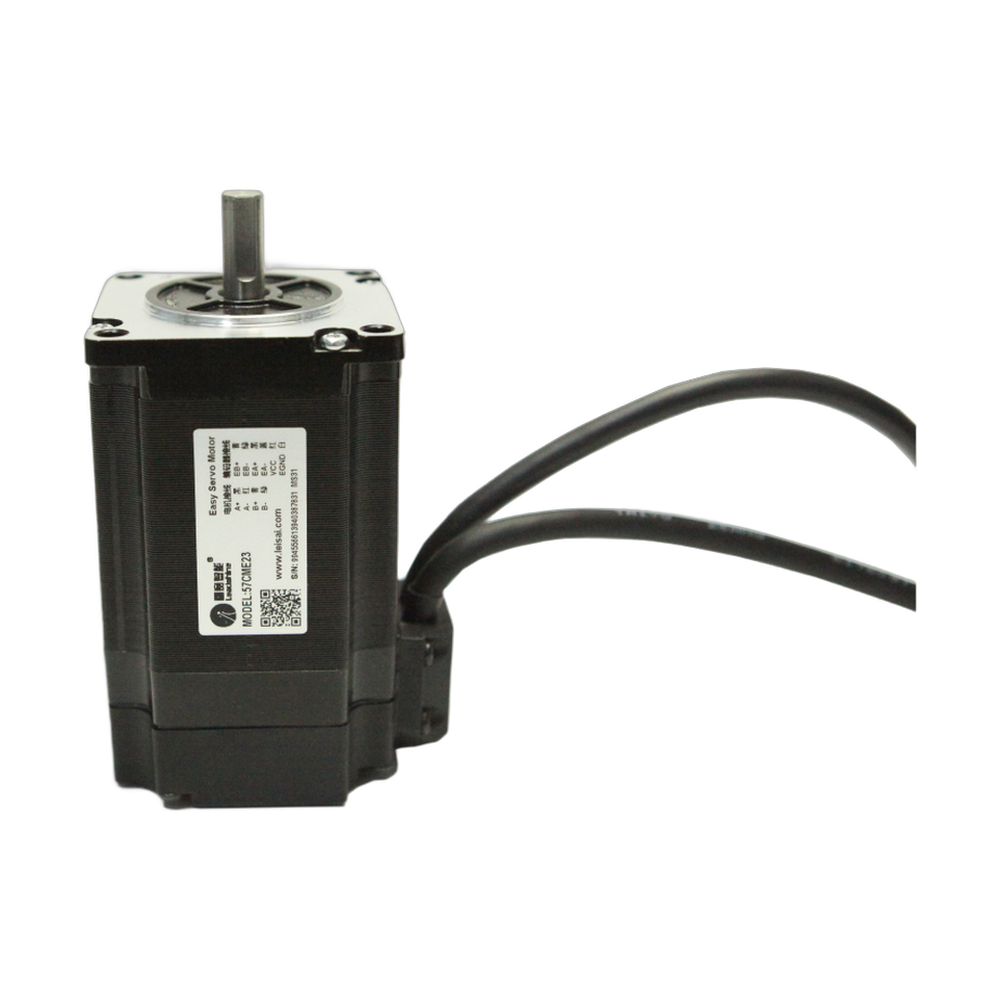

The CreatBot D1000 HS X motor (part 132003) is the OEM X-axis motor for the CreatBot D1000 HS. It drives motion along the X axis and places every line the slicer sends along that direction. The D1000 HS pairs a very large build volume with high print speeds, so the X motor makes long, fast moves for hours at a time. If it starts to lose steps, a single layer shift can ruin a large part late in a long print. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS X Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X motor needs replacing
Layers shift along the X axis, often during fast infill or travel moves.
The X axis does not home, or homes with grinding or clicking.
The motor hums or vibrates without moving the axis smoothly.
Parts come out undersized or distorted along X.
Belt tension, a slipping pulley, a snagged cable or a driver fault can cause the same shifts. Check those first, or contact Rev1 support to help diagnose the axis.
Compatible CreatBot 3D printer
The D1000 HS Y motor is part 132004. Other models use their own X motors: the D600 Pro2 HS uses closed-loop motor 132001, the D1000 uses 132010 and the F1000 uses 132012.
Installation tips
Turn the printer off and unplug it. Photograph the wiring and mark the pulley position on the old motor shaft. Release belt tension, remove the old motor and fit the new one in the same orientation. Set the pulley in the same position so the belt runs straight, then re-tension. Move the print head by hand over the full X travel to check for smooth motion, home the printer and print a calibration part at your normal speed.
CreatBot D1000 HS X Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS X Motor — Questions
Does the D1000 HS X motor fit the D1000?
No. The D1000 uses X motor 132010.
Are the D1000 HS X and Y motors the same part?
They are listed separately: X is 132003 and Y is 132004.
Is this a genuine CreatBot part?
Yes. It is part 132003, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
