CreatBotD1000 HS X DriveGenuine CreatBot Replacement Part
D1000 HS X Drive (X-Axis Stepper Driver)

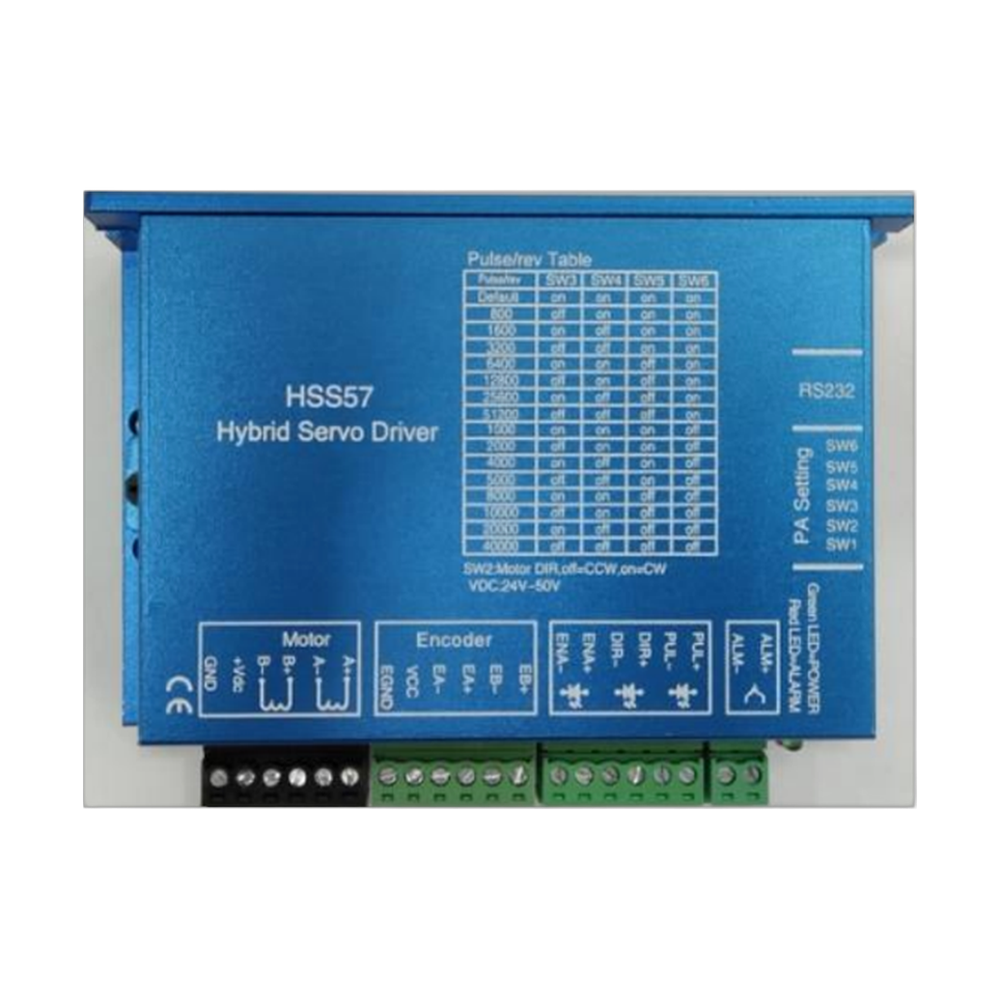

The CreatBot D1000 HS X drive (part 115003) is the OEM stepper motor driver for the X axis of the CreatBot D1000 HS. The D1000 HS has a tall build volume and a large gantry, and the X axis carries the print head back and forth on every layer. The X drive receives step and direction signals from the main control board and supplies the motor current that makes each move. When it starts to fail, the first thing you usually see is the print itself: layers that shift sideways, or an axis that stops dead. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D1000 HS X Drive, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X drive may need replacing
Layer shifts along the X axis that continue after belts, pulleys and the gantry have been checked.
The X motor buzzes, stutters or will not home, while Y and Z work normally.
The X motor runs correctly when connected to a known good driver.
A driver error on the printer that points to the X axis.
Loose belts, a slipping pulley grub screw or a damaged motor cable cause similar symptoms, so check the mechanics first.
Compatible CreatBot 3D printer
The D1000 HS uses a dedicated driver part for each axis: X (115003), Y (115004), Z (115005) and E (115006). The newer D1000 Pro HS uses different parts, for example 115019 for its X axis.
Installation tips
Switch the printer off and unplug it before you open the electronics enclosure. Photograph the driver in place so the orientation is clear, then remove it and fit the new module the same way round. Reconnect the X motor cable, close up, and home the printer. Run a test print with long X moves to confirm there are no shifts.
CreatBot D1000 HS X Drive Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D1000 HS X Drive — Questions
Will this fit a D1000 Pro HS?
No. The D1000 Pro HS X axis uses part 115019.
Is the X drive the same part as the Y drive?
CreatBot lists them as separate parts: X is 115003 and Y is 115004. Order the part for the axis that failed.
Can Rev1 diagnose the fault first?
Yes. Rev1 is a certified CreatBot service provider and can help confirm whether the driver, motor or wiring is at fault.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
